NSN 4730-01-258-7486 AS4301K0604, KC106C64, KC106C6-4
Product Details | TUBE REDUCER
4730-01-258-7486 A straight tube fitting having a different size connection on each end. It is designed to join two tubes of different sizes. Excludes BUSHING (as modified).
Part Alternates: AS4301K0604, KC106C64, KC106C6-4, KC106K64, KC106K6-4, 4730-01-258-7486, 01-258-7486, 4730012587486, 012587486
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 JUL 1987 | 01-258-7486 | 08506 ( REDUCER, TUBE ) |

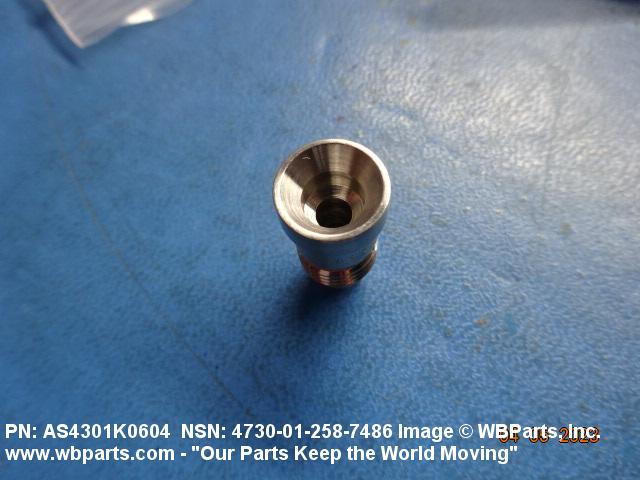

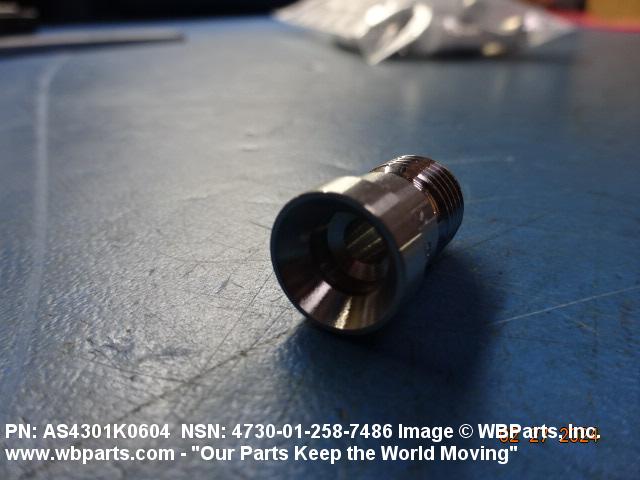

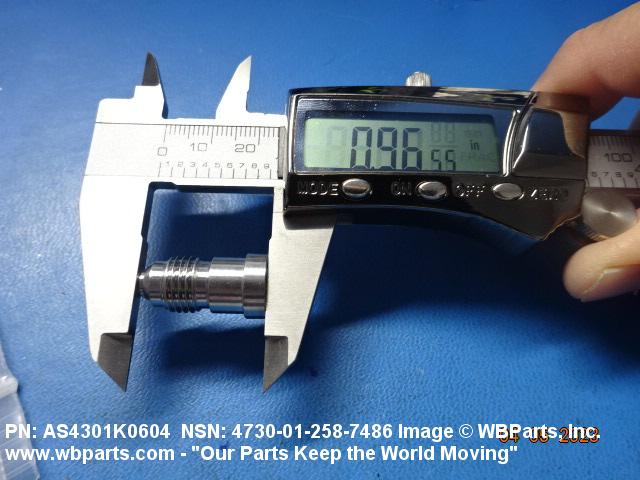

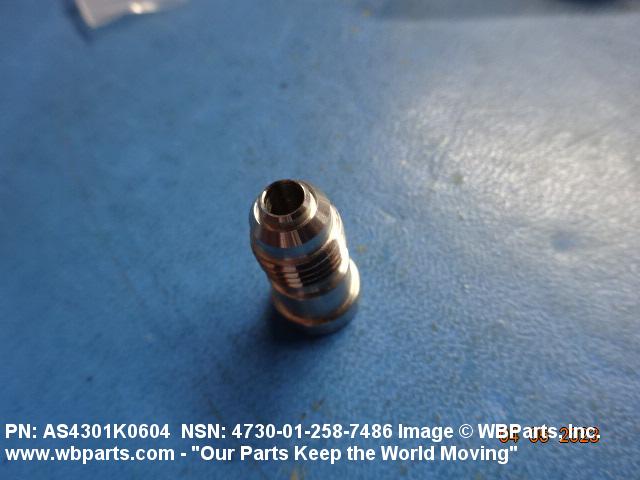

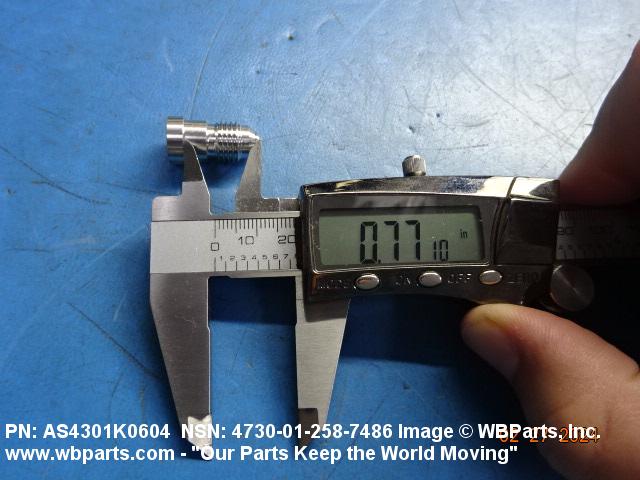

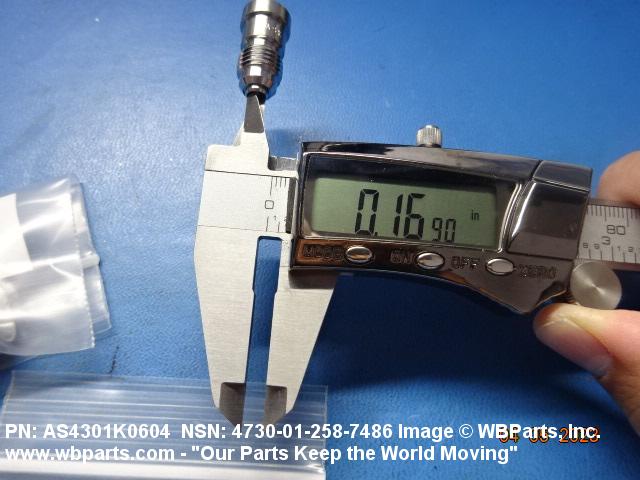

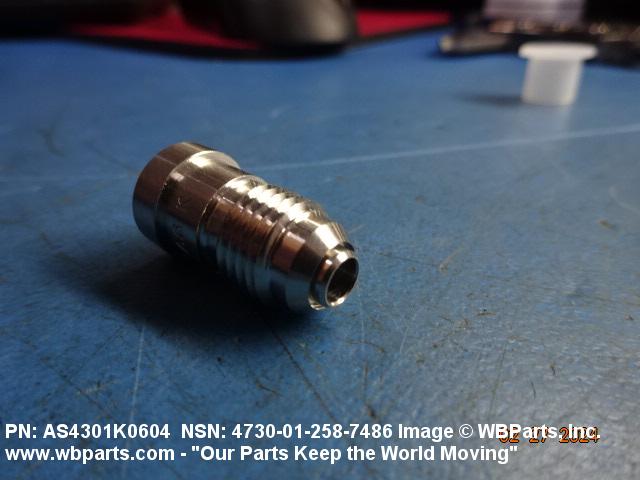

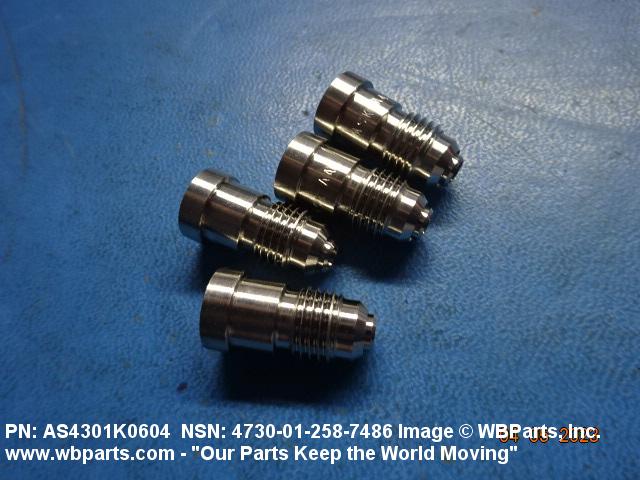

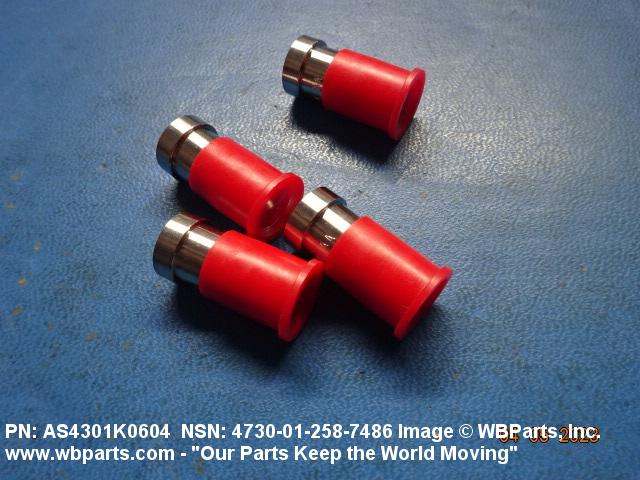

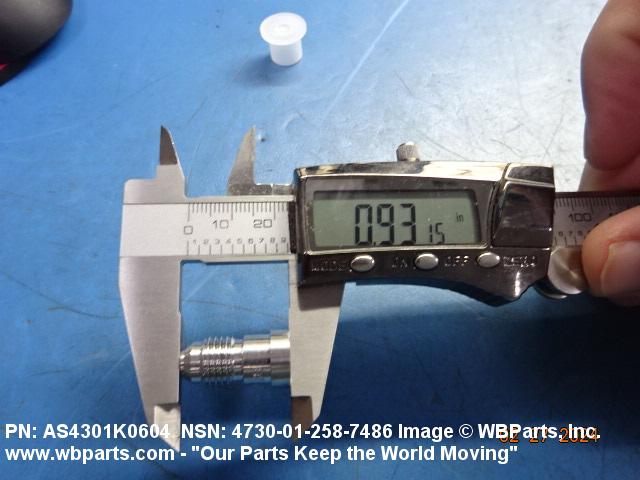

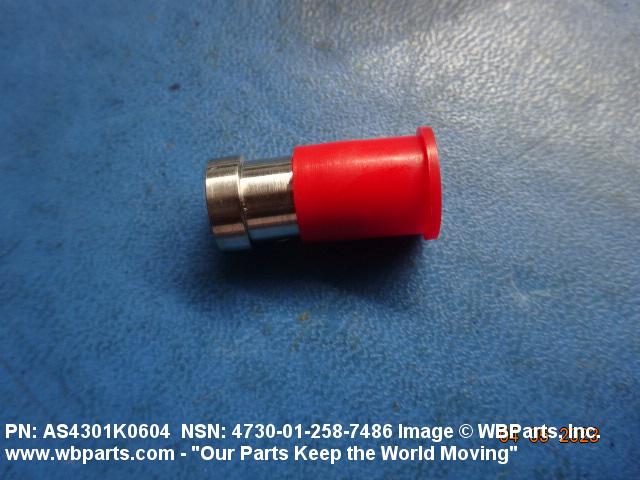

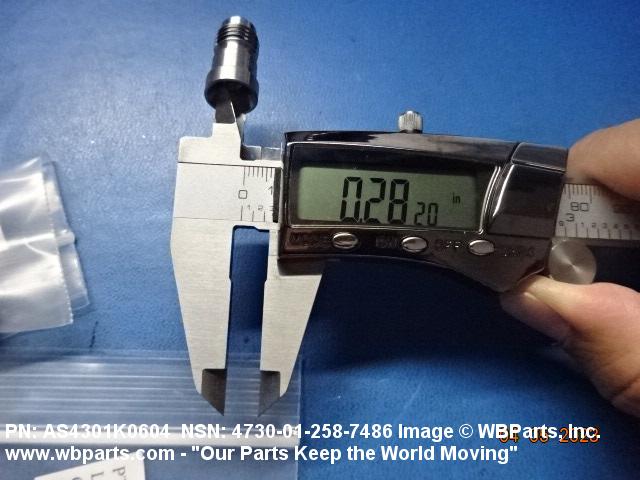

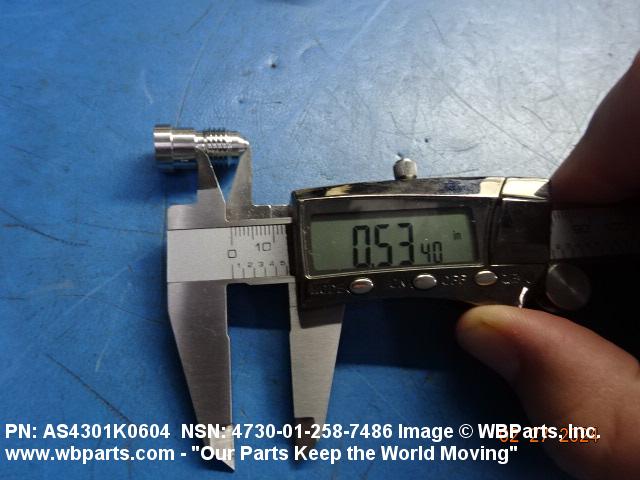

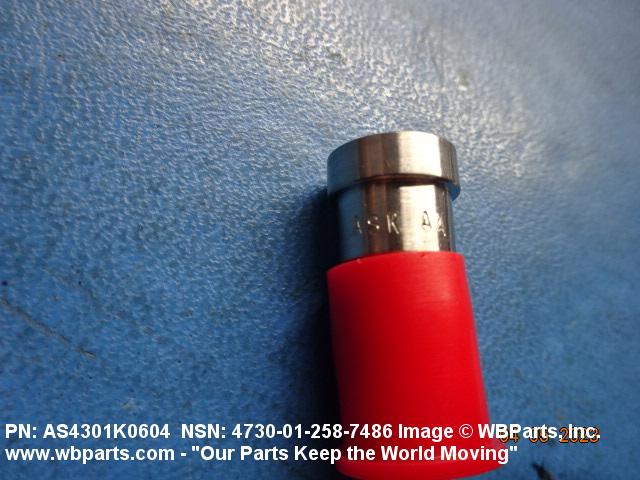

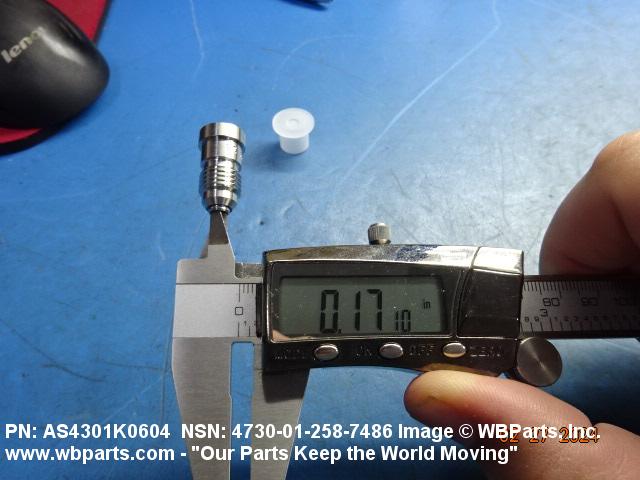

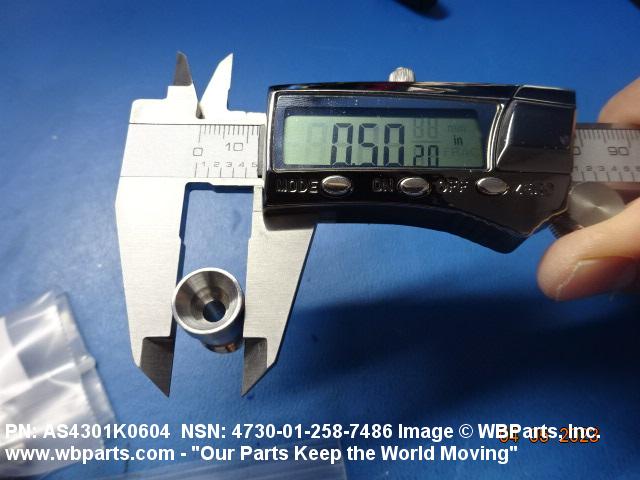

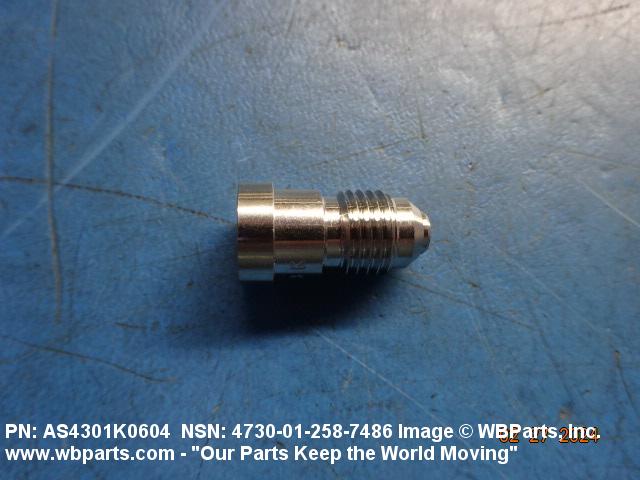

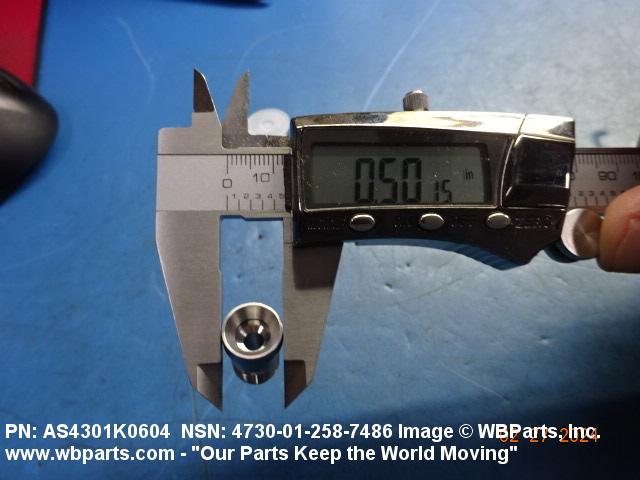

Drawings & Photos | NSN 4730-01-258-7486
Demand History | NSN 4730-01-258-7486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS4301K0604 | 2025-08-240 | 30 | United States |
| AS4301K0604 | 2024-02-37 | 20 | United States |
| AS4301K0604 | 2023-03-83 | 1 | United States |
| AS4301K0604 | 2016-10-295 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-258-7486
Technical Data | NSN 4730-01-258-7486
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.172 INCHES 1ST END 0.438 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| NOMINAL OVERALL LENGTH | 0.969 INCHES |
| REDUCER TYPE | CONCENTRIC |
| SPECIAL FEATURES | KC106C6-4; MACHINED GROOVE IN FLARED ENDS TO ACCOMMODATE SEAL RINGS PER KC103 |
Restrictions/Controls & Freight Information | NSN 4730-01-258-7486
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
