NSN 4730-01-261-1016 MS5152433, MS51524A3S, MS51524B3S
Product Details | TUBE TEE

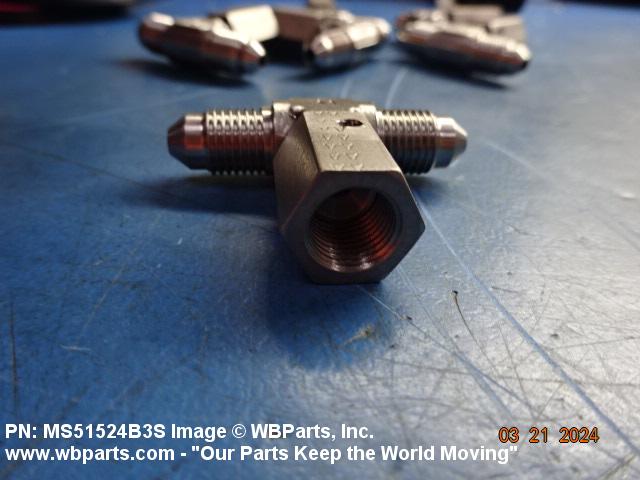

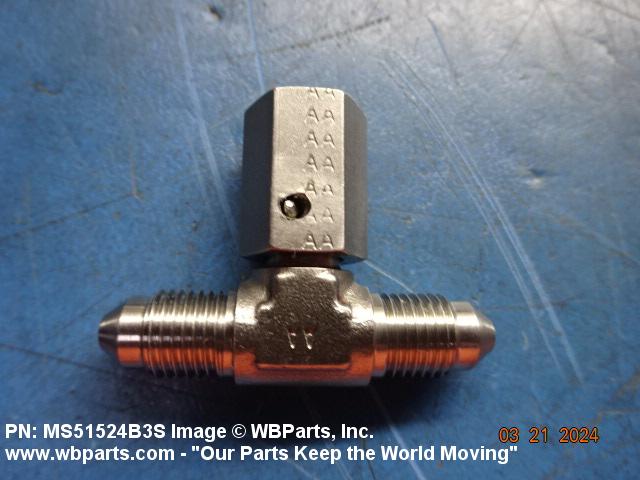

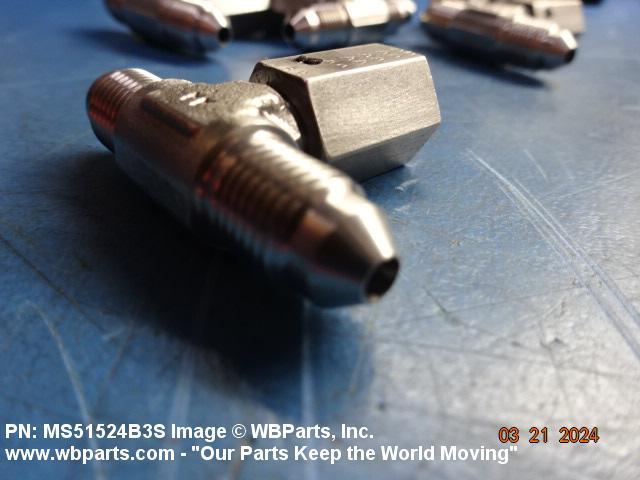

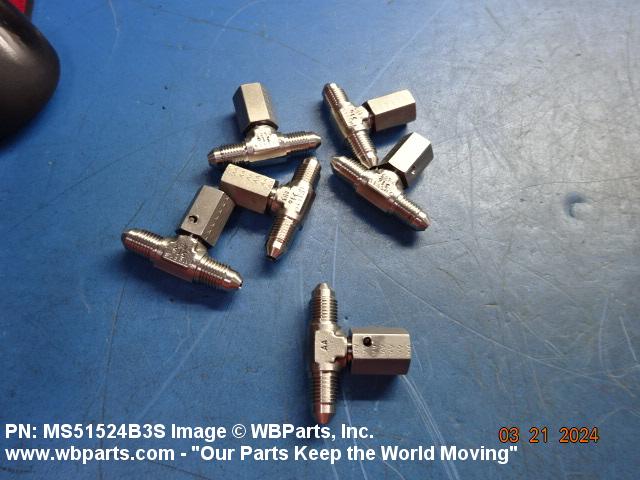

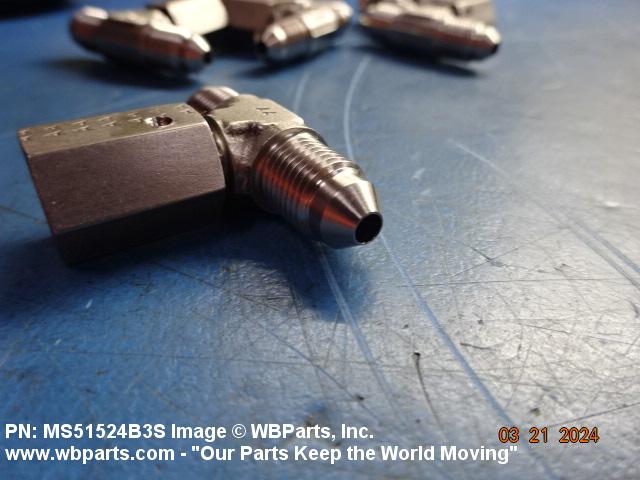

4730-01-261-1016 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: MS5152433, MS51524A3S, MS51524B3S, MS51524-B3S, 3S6BXSS, 3S6BX-SS, 4730-01-261-1016, 01-261-1016, 4730012611016, 012611016
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 AUG 1987 | 01-261-1016 | 03809 ( TEE, TUBE ) |
Drawings & Photos | NSN 4730-01-261-1016
Demand History | NSN 4730-01-261-1016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3S6BX-SS | 2025-02-41 | 38 | DIBBS |
| MS51524B3S | 2024-01-24 | 6 | United States |
| 4730-01-261-1016 | 2015-02-39 | 43 | DIBBS |
| 4730-01-261-1016 | 2012-09-249 | 5 | DIBBS |
| 4730-01-261-1016 | 2012-08-216 | 3 | DIBBS |
| MS51524B3S | 2008-04-93 | 10 | US |
Cross Reference | NSN 4730-01-261-1016
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3S6BX-SS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 3S6BX-SS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| MS51524-B3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS5152433 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51524A3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-261-1016
Technical Data | NSN 4730-01-261-1016
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED INTERNAL TUBE 3RD END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END B3 SWIVEL NUT, FLARE 3RD END |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.188 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.375 INCHES ALL ENDS |
| THREAD CLASS | 2A 1ST END 2A 2ND END 2B 3RD END |

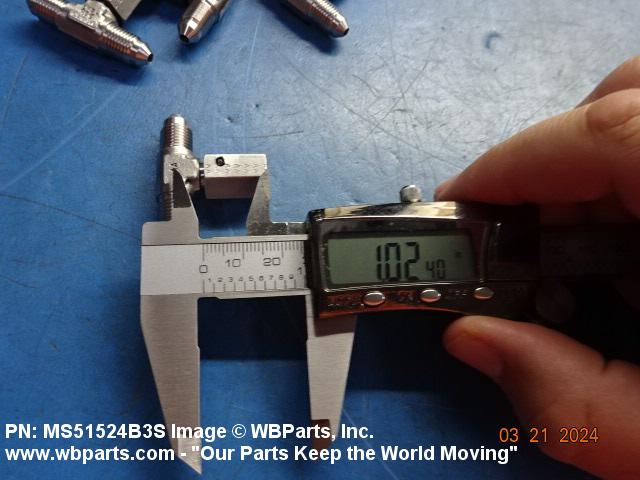

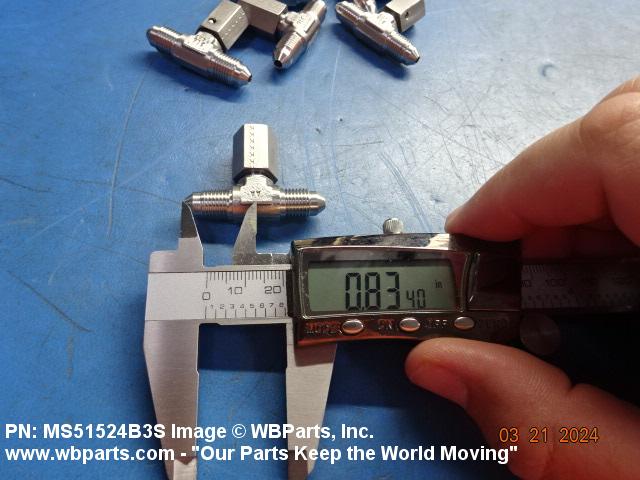

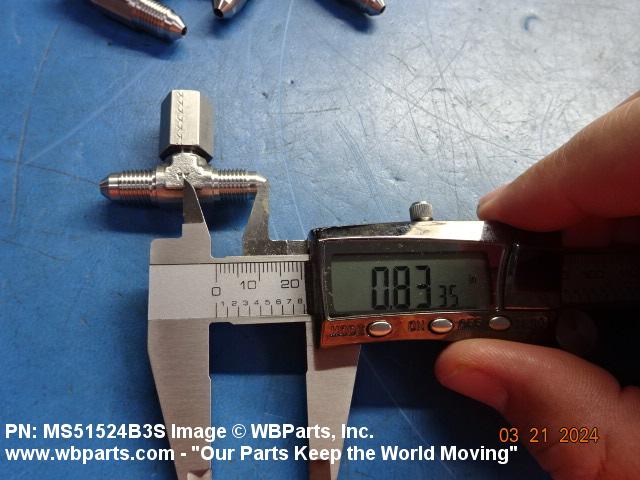

| LEG LENGTH | 0.828 INCHES NOMINAL 1ST END 0.828 INCHES NOMINAL 2ND END 1.000 INCHES NOMINAL 3RD END |
