NSN 4730-01-267-8528 NAS1763J120812, 01-267-8528, 012678528
Product Details | TUBE TEE
4730-01-267-8528 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: NAS1763J120812, 4730-01-267-8528, 01-267-8528, 4730012678528, 012678528
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 NOV 1987 | 01-267-8528 | 03809 ( TEE, TUBE ) |

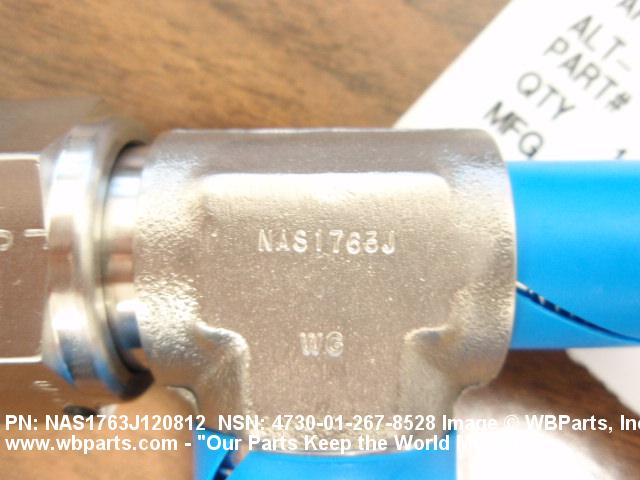

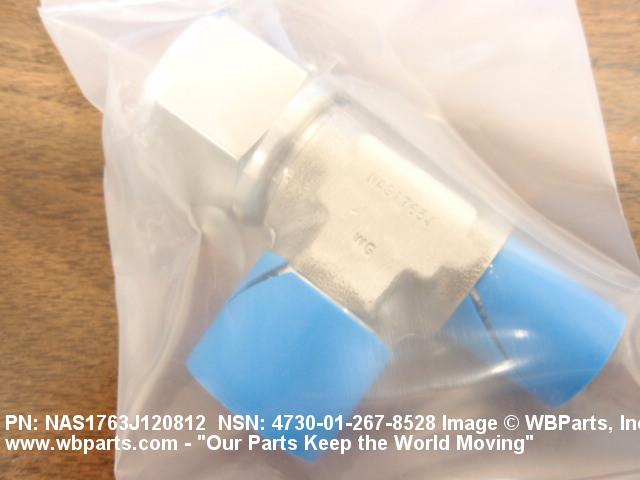

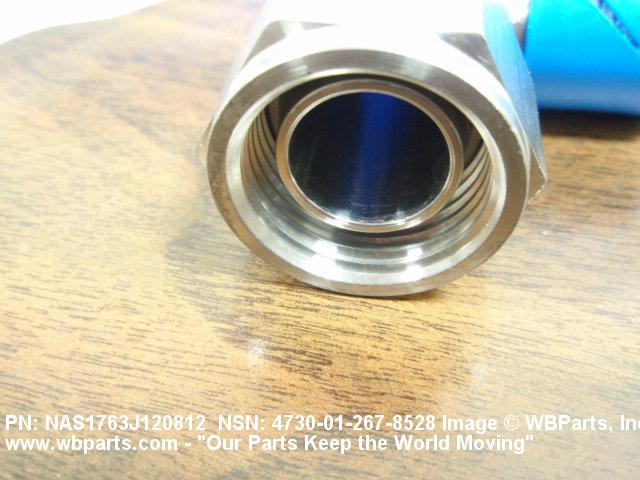

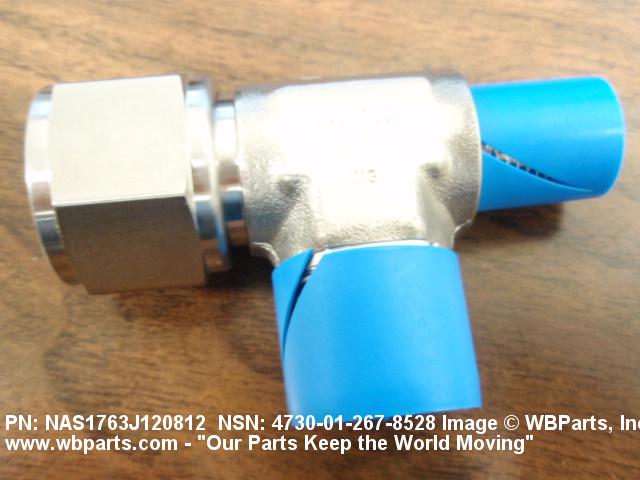

Drawings & Photos | NSN 4730-01-267-8528
Demand History | NSN 4730-01-267-8528
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1763J120812 | 2010-08-243 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-267-8528
Technical Data | NSN 4730-01-267-8528
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 BODY STEEL COMP 304 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE BODY QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED EXTERNAL TUBE 3RD END |
| CONNECTION STYLE | B12 SWIVEL NUT, FLARELESS 1ST END B66 FLARELESS 2ND END B66 FLARELESS 3RD END |
| SEAT ANGLE | 12.0 DEGREES 1ST END 12.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES 1ST END 0.500 INCHES 2ND END 0.750 INCHES 3RD END |
| THREAD SERIES DESIGNATOR | UNJ 1ST END UNJF 2ND END UNJ 3RD END |
| NOMINAL THREAD SIZE | 1.0625 INCHES 1ST END 0.7500 INCHES 2ND END 1.0625 INCHES 3RD END |
| THREAD QUANTITY PER INCH | 12 1ST END 16 2ND END 12 3RD END |
| THREAD CLASS | 3A ALL ENDS |
| LEG LENGTH | 1.398 INCHES NOMINAL 1ST END 1.251 INCHES NOMINAL 2ND END 1.560 INCHES NOMINAL 3RD END |
| SPECIFICATION/STANDARD DATA | 80205-NAS1763 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-01-267-8528
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | 9Z | DLIS-K Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
