NSN 4730-01-268-9454 AS4349K04, KC173C4, KC173K4
Product Details | TUBE COUPLING
4730-01-268-9454 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: AS4349K04, KC173C4, KC173K4, 4730-01-268-9454, 01-268-9454, 4730012689454, 012689454
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 DEC 1987 | 01-268-9454 | 06078 ( COUPLING, TUBE ) |

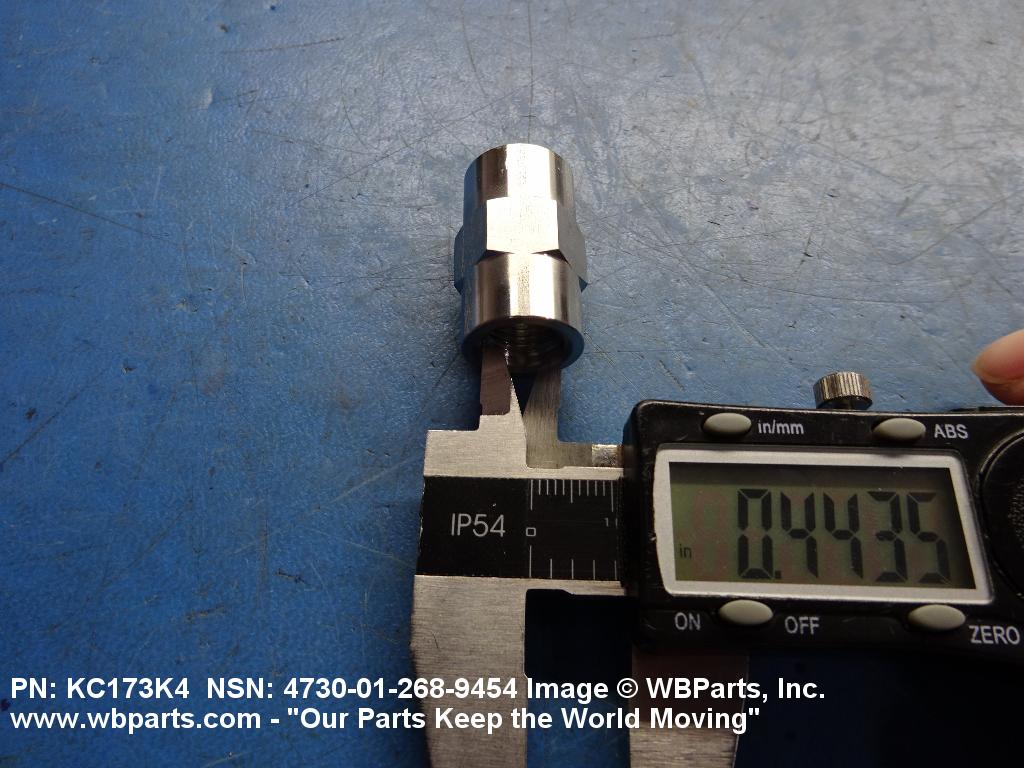

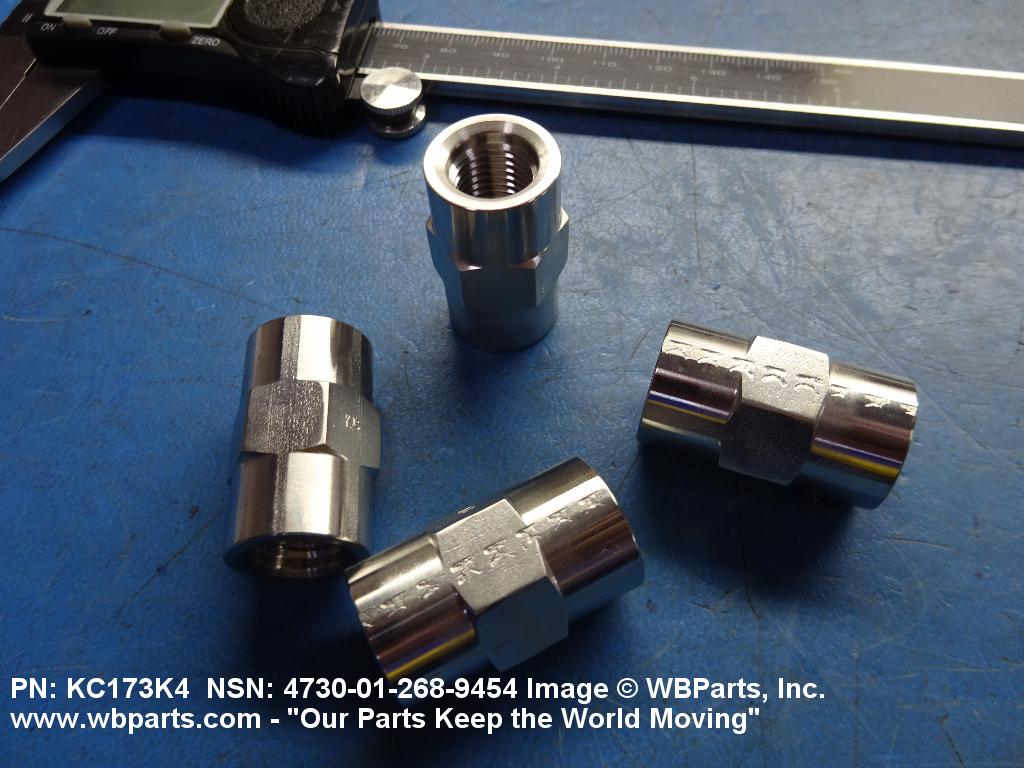

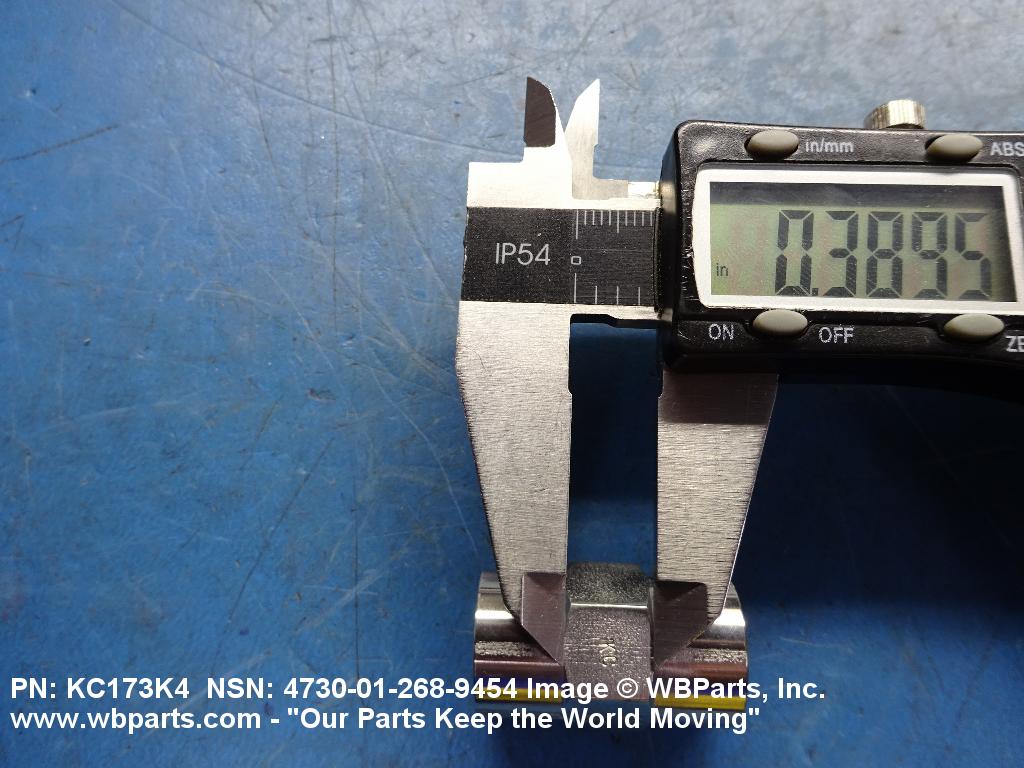

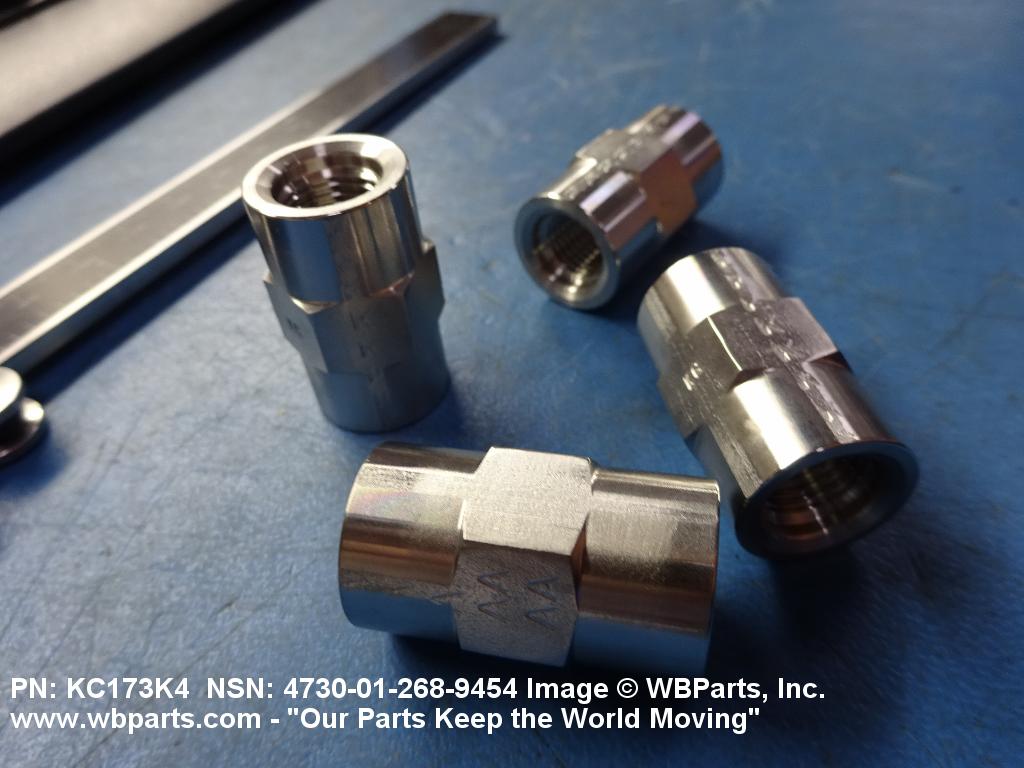

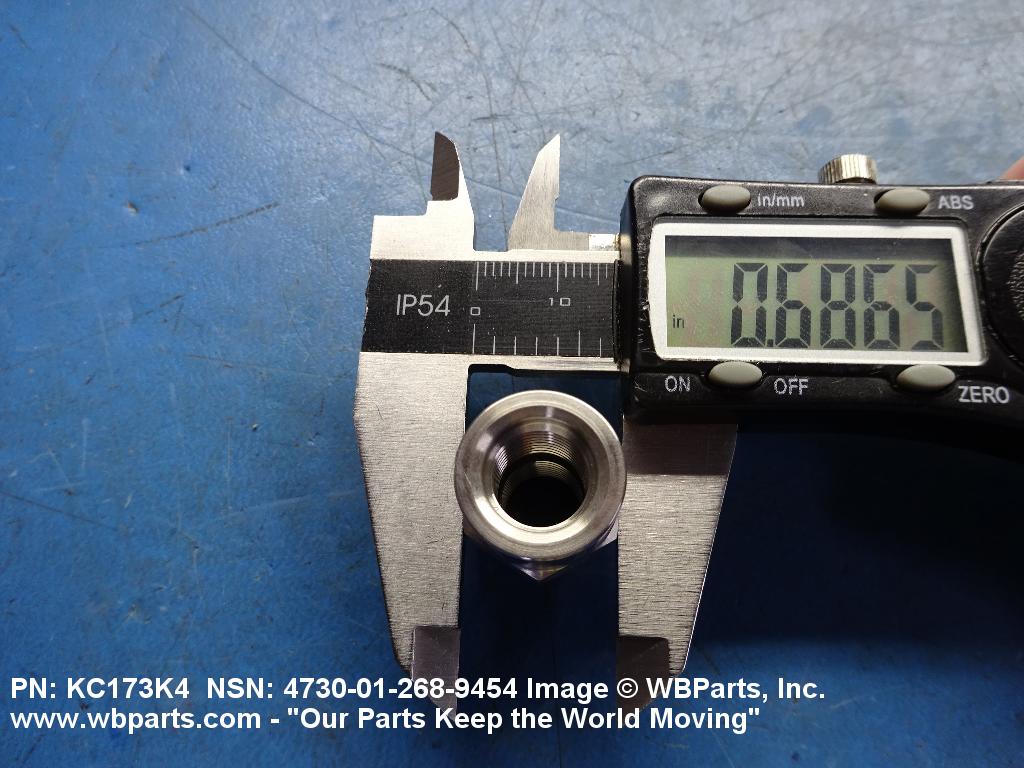

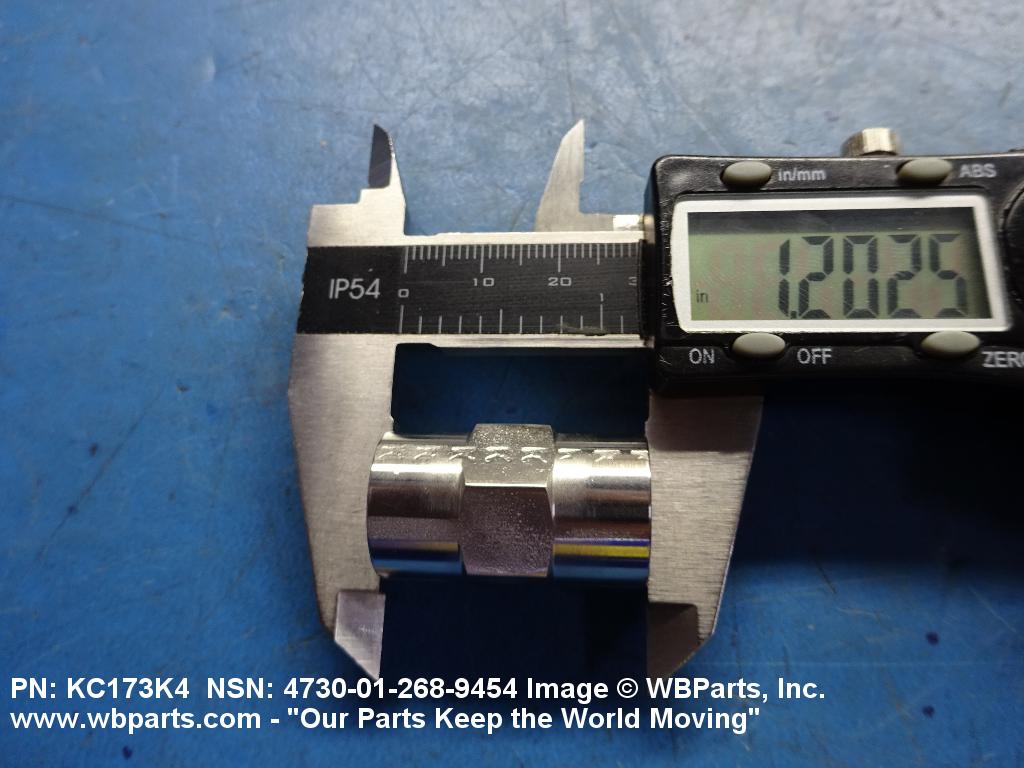

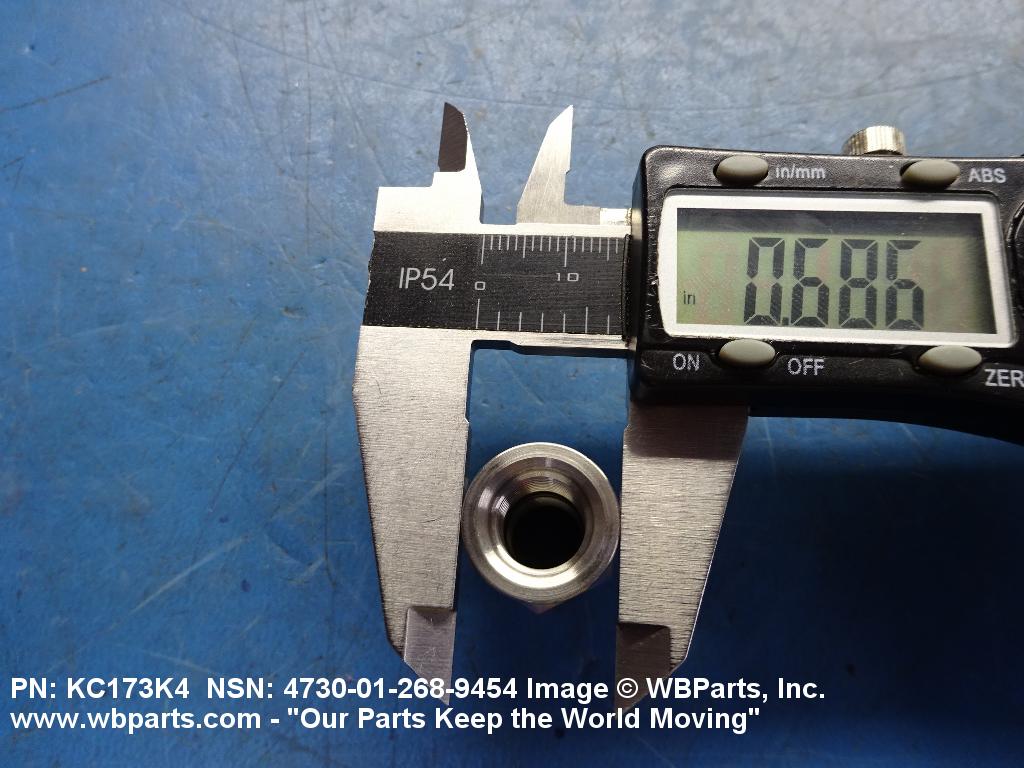

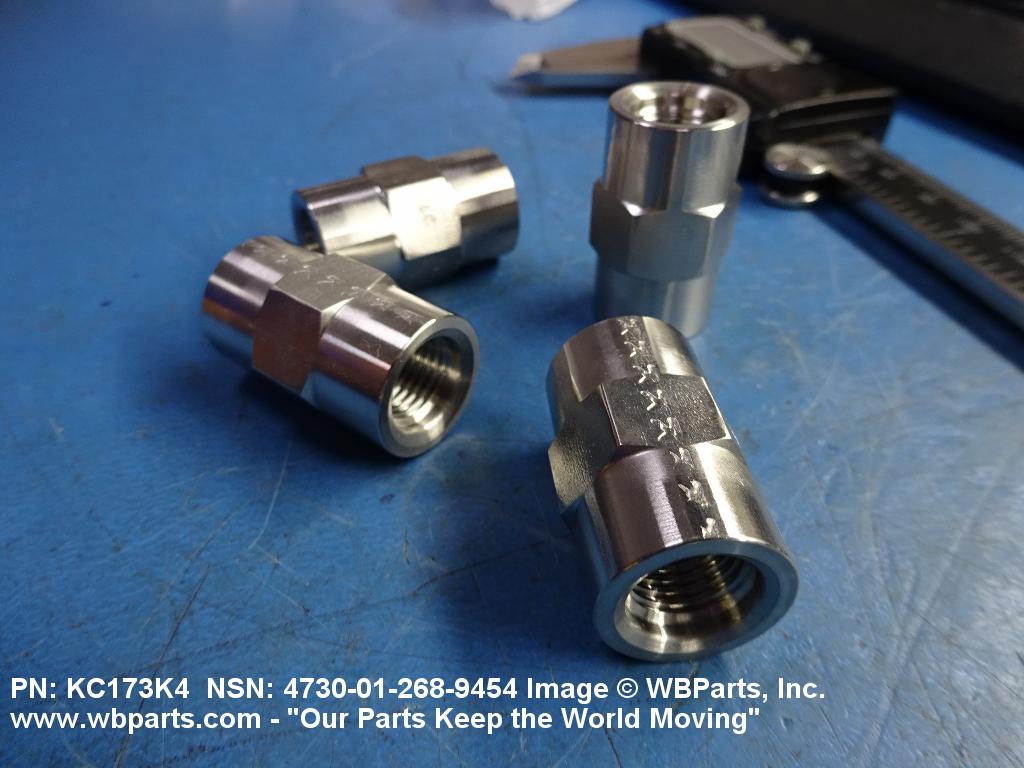

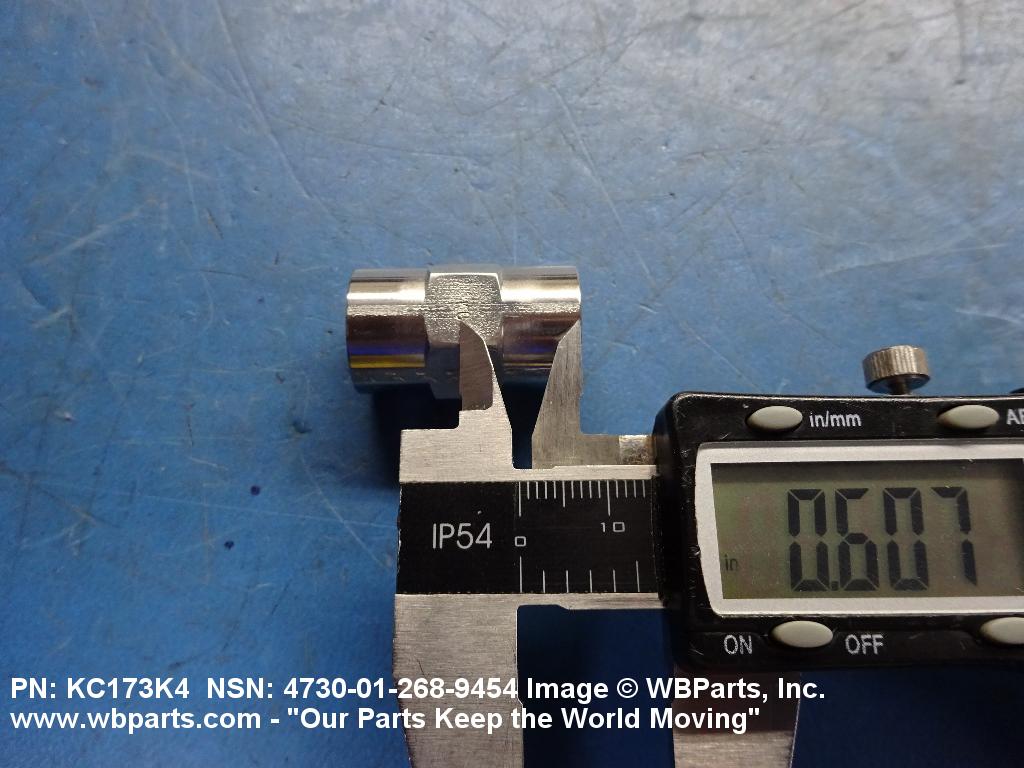

Drawings & Photos | NSN 4730-01-268-9454
Demand History | NSN 4730-01-268-9454
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-268-9454 | 2024-03-65 | 66 | DIBBS |
| 4730-01-268-9454 | 2022-08-223 | 10 | United States |
| AS4349K04 | 2012-10-298 | 96 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-268-9454
Technical Data | NSN 4730-01-268-9454
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| STYLE DESIGNATOR | A5 RIGID, SHORT CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED INTERNAL BOSS 1ST END THREADED INTERNAL BOSS 2ND END |
| CONNECTION STYLE | B9 GASKET SEAL 1ST END B9 GASKET SEAL 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.438 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| NOMINAL OVERALL LENGTH | 1.188 INCHES |
| SPECIAL FEATURES | KC173-C4 |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 4730-01-268-9454
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
