NSN 4730-01-273-3654 C7856, C7856102S, C7856-10-2S
Product Details | TUBE COUPLING
4730-01-273-3654 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: C7856, C7856102S, C7856-10-2S, D1032510, D10325-10, 4730-01-273-3654, 01-273-3654, 4730012733654, 012733654
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 FEB 1988 | 01-273-3654 | 06078 ( COUPLING, TUBE ) |

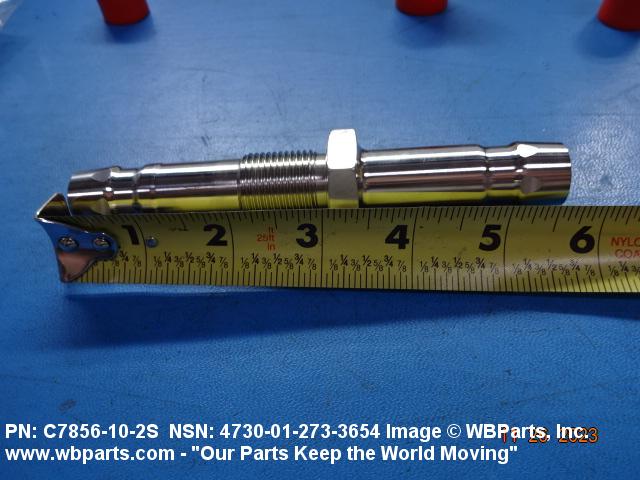

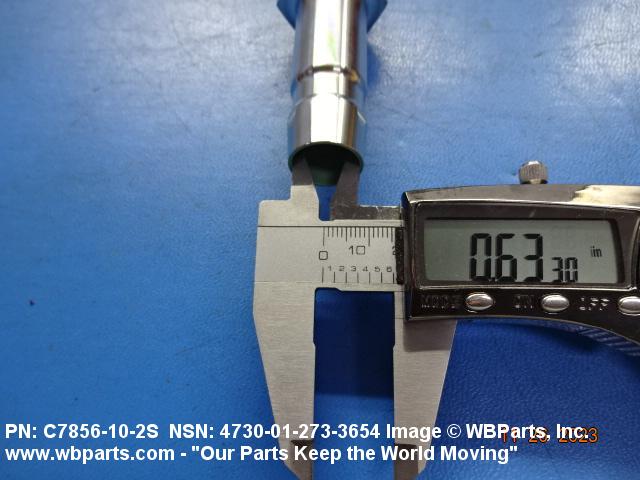

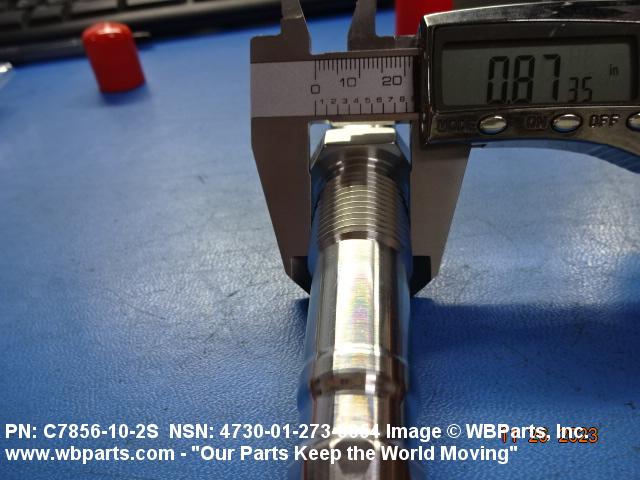

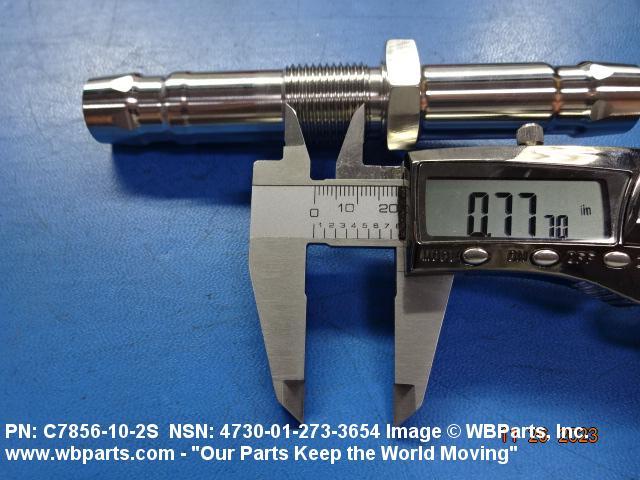

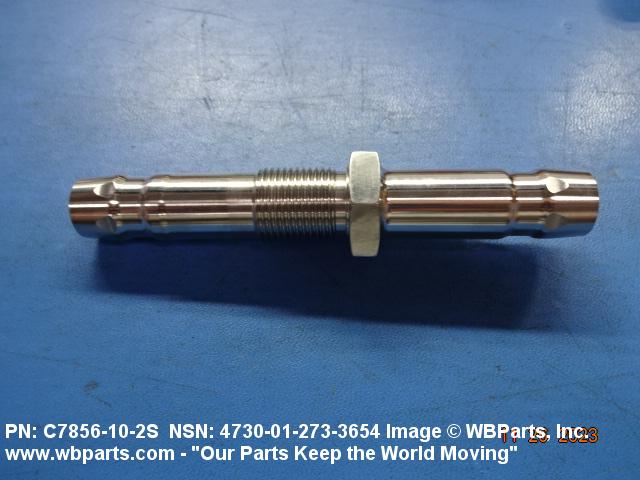

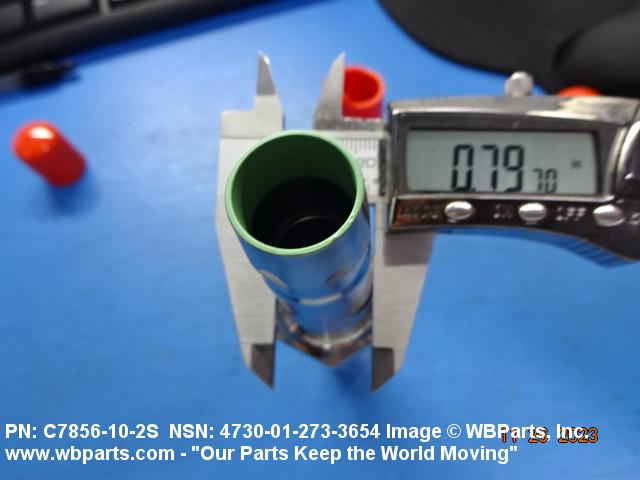

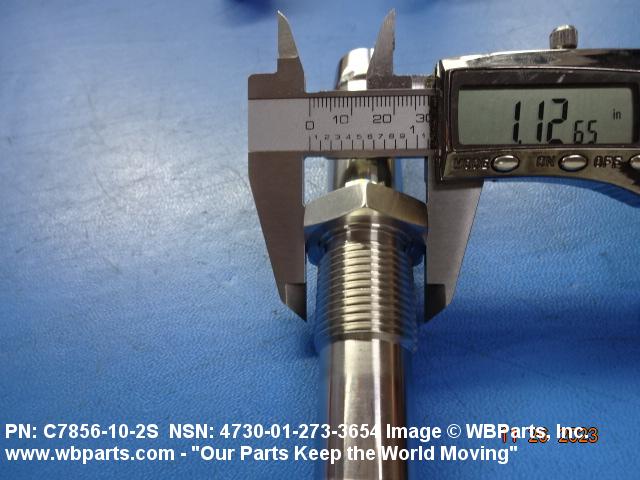

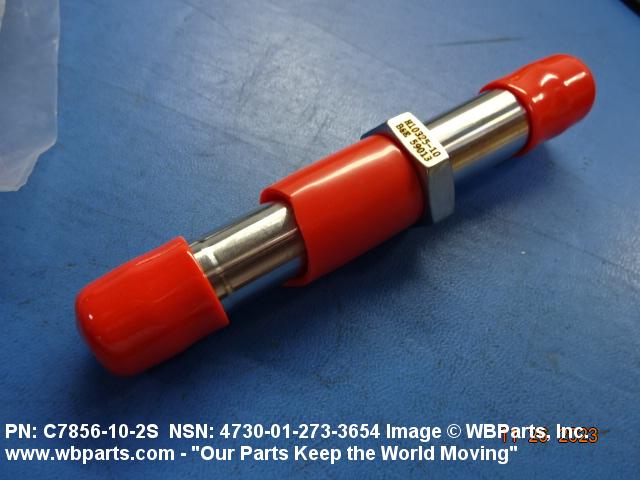

Drawings & Photos | NSN 4730-01-273-3654
Demand History | NSN 4730-01-273-3654
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-273-3654 | 2024-06-159 | 12 | United States |
| AP10136-10 | 2024-04-108 | 35 | DIBBS |
| C7856-10-2S | 2024-04-108 | 35 | DIBBS |
| D10325-10 | 2024-04-108 | 35 | DIBBS |
| 4730-01-273-3654 | 2024-04-94 | 6 | South Korea |
| 4730-01-273-3654 | 2024-03-88 | 40 | United States |
| AP10136-10 | 2024-03-88 | 33 | DIBBS |
| C7856-10-2S | 2024-03-88 | 33 | DIBBS |
| D10325-10 | 2024-03-88 | 33 | DIBBS |
| AP10136-10 | 2024-03-67 | 1 | DIBBS |
| C7856-10-2S | 2024-03-67 | 1 | DIBBS |
| D10325-10 | 2024-03-67 | 1 | DIBBS |
| C7856102S | 2024-03-66 | 150 | United States |
| 4730-01-273-3654 | 2023-12-347 | 3 | US |
| AP10136-10 | 2023-11-333 | 92 | DIBBS |
| C7856-10-2S | 2023-11-333 | 92 | DIBBS |
| D10325-10 | 2023-11-333 | 92 | DIBBS |
| AP10136-10 | 2023-11-318 | 102 | DIBBS |
| C7856-10-2S | 2023-11-318 | 102 | DIBBS |
| D10325-10 | 2023-11-318 | 102 | DIBBS |
| 4730-01-273-3654 | 2023-10-298 | 10 | South Korea |
| 4730-01-273-3654 | 2023-10-296 | 40 | United States |
| AP10136-10 | 2023-10-278 | 56 | DIBBS |
| C7856-10-2S | 2023-10-278 | 56 | DIBBS |
| D10325-10 | 2023-10-278 | 56 | DIBBS |
| 4730-01-273-3654 | 2023-10-276 | 20 | US |
| 4730-01-273-3654 | 2023-09-270 | 1 | US |
| 4730-01-273-3654 | 2023-09-270 | 5 | US |
| 4730-01-273-3654 | 2023-08-243 | 13 | us |
| D1032510 | 2023-08-235 | 10 | US |
| C7856-10-2S | 2023-08-215 | 125 | DIBBS |
| D10325-10 | 2023-08-215 | 125 | DIBBS |
| C7856-10-2S | 2023-05-124 | 95 | DIBBS |
| D10325-10 | 2023-05-124 | 95 | DIBBS |
| C7856-10-2S | 2023-02-40 | 45 | DIBBS |
| D10325-10 | 2023-02-40 | 45 | DIBBS |
| C7856-10-2S | 2022-11-311 | 8 | DIBBS |
| D10325-10 | 2022-11-311 | 8 | DIBBS |
| C7856-10-2S | 2022-05-125 | 32 | DIBBS |
| D10325-10 | 2022-05-125 | 32 | DIBBS |
| C7856-10-2S | 2022-03-79 | 25 | DIBBS |
| D10325-10 | 2022-03-79 | 25 | DIBBS |
| C7856-10-2S | 2022-01-13 | 2 | DIBBS |
| D10325-10 | 2022-01-13 | 2 | DIBBS |
| C7856-10-2S | 2021-11-308 | 18 | DIBBS |
| D10325-10 | 2021-11-308 | 18 | DIBBS |
| C7856-10-2S | 2021-10-280 | 1 | DIBBS |
| D10325-10 | 2021-10-280 | 1 | DIBBS |
| C7856-10-2S | 2021-06-168 | 4 | DIBBS |
| D10325-10 | 2021-06-168 | 4 | DIBBS |
| C7856-10-2S | 2021-04-91 | 4 | DIBBS |
| D10325-10 | 2021-04-91 | 4 | DIBBS |
| C7856-10-2S | 2020-03-89 | 24 | DIBBS |
| D10325-10 | 2020-03-89 | 24 | DIBBS |
| C7856-10-2S | 2020-02-58 | 13 | DIBBS |
| D10325-10 | 2020-02-58 | 13 | DIBBS |
| C7856-10-2S | 2019-05-143 | 8 | DIBBS |
| D10325-10 | 2019-05-143 | 8 | DIBBS |
| 4730-01-273-3654 | 2017-10-291 | 17 | DIBBS |
| 4730-01-273-3654 | 2017-05-129 | 24 | DIBBS |
| 4730-01-273-3654 | 2016-07-186 | 16 | DIBBS |
| 4730-01-273-3654 | 2015-11-312 | 26 | DIBBS |
| 4730-01-273-3654 | 2014-08-216 | 29 | DIBBS |
| 4730-01-273-3654 | 2014-07-205 | 29 | DIBBS |
| 4730-01-273-3654 | 2012-06-181 | 20 | DIBBS |
| 4730-01-273-3654 | 2012-02-39 | 8 | DIBBS |
| 4730-01-273-3654 | 2011-12-348 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-273-3654
Related Products | NSN 4730-01-273-3654
Technical Data | NSN 4730-01-273-3654
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5656 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A35 SWAGED ENDS W/BULKHEAD |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS THREADED EXTERNAL TUBE 1ST END BULKHEAD |
| CONNECTION STYLE | B48 SWAGED W/GROOVES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 0.875 INCHES 1ST END BULKHEAD |
| THREAD CLASS | 3A 1ST END BULKHEAD |
| NOMINAL OVERALL LENGTH | 5.650 INCHES |
| SPECIAL FEATURES | TEFLON COAT BOTH ENDS INTERNALLY O.423 IN. FROM ENDS |
Restrictions/Controls & Freight Information | NSN 4730-01-273-3654
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-273-3654
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
