NSN 4730-01-287-4695 1372F-1.25, 1372F125, 44705K247
Product Details | PIPE COUPLING
4730-01-287-4695 A straight pipe fitting designed to join two lengths of pipe or pipe fittings in such a manner that they may be disconnected without disturbing the rest of the pipe line. The end connections have pipe threads or are unthreaded and designed to accommodate a pipe.
Part Alternates: 1372F-1.25, 1372F125, 44705K247, 5497498, 54974981, 5497498-1, 4730-01-287-4695, 01-287-4695, 4730012874695, 012874695
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 OCT 1988 | 01-287-4695 | 03785 ( UNION, PIPE ) |

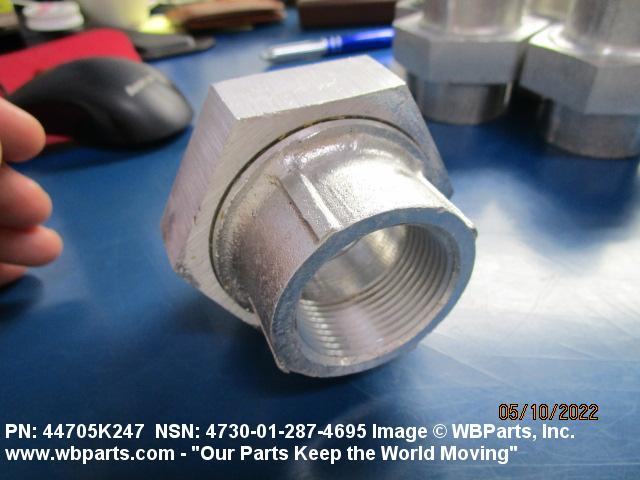

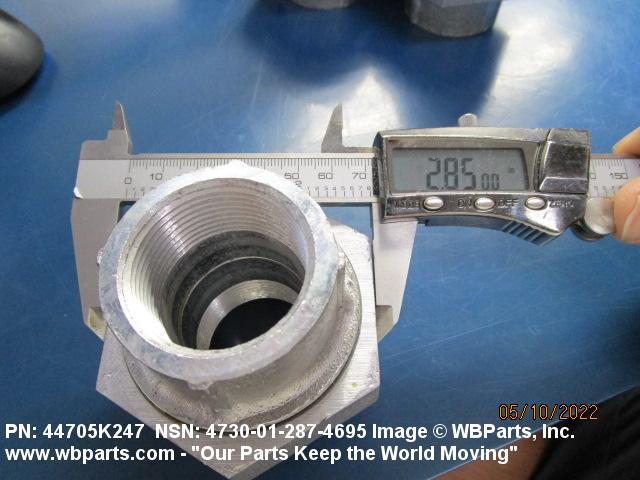

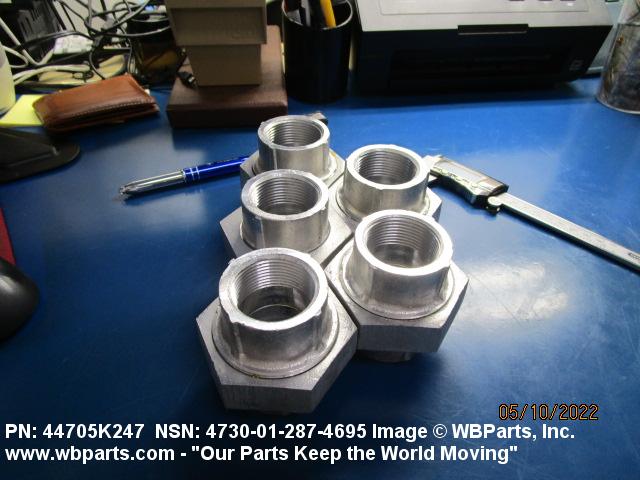

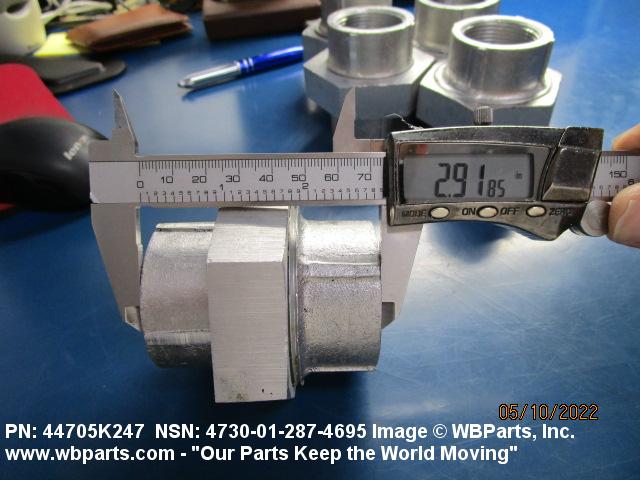

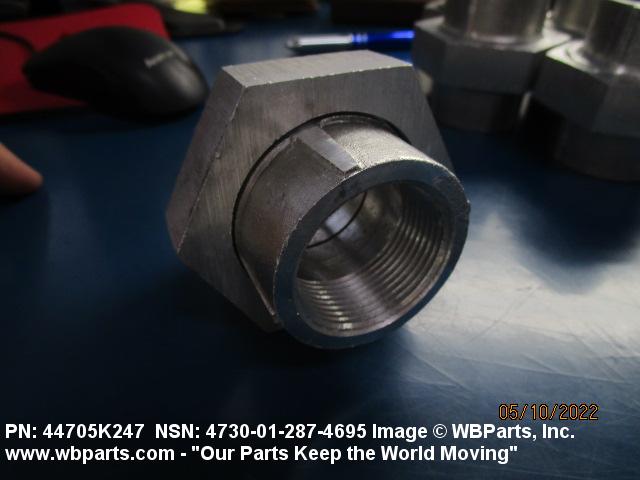

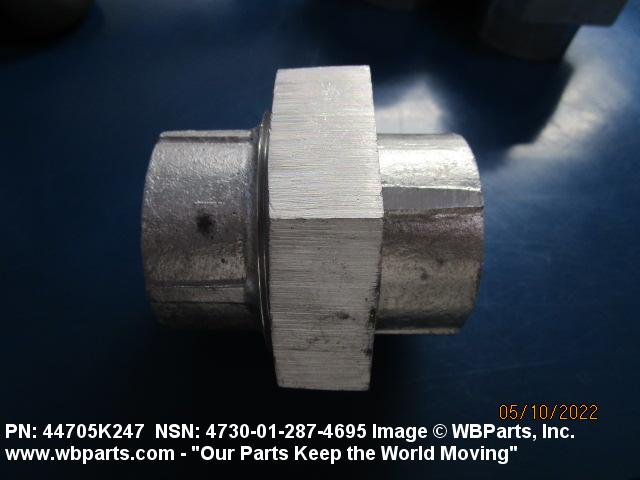

Drawings & Photos | NSN 4730-01-287-4695
Demand History | NSN 4730-01-287-4695
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 54974981 | 2025-03-86 | 20 | US |
| 54974981 | 2025-01-07 | 20 | US |
| 4730-01-287-4695 | 2024-05-127 | 260 | US |
| 44705K247 | 2022-10-290 | 2 | DIBBS |
| 4730-01-287-4695 | 2022-04-104 | 1 | United States |
| 4730-01-287-4695 | 2018-08-222 | 28 | United States |
| 4730-01-287-4695 | 2018-08-218 | 28 | United States |
| 4730-01-287-4695 | 2018-08-218 | 28 | United States |
| 4730-01-287-4695 | 2016-02-59 | 1 | DIBBS |
| 4730-01-287-4695 | 2015-12-335 | 1 | DIBBS |
| 4730-01-287-4695 | 2015-06-156 | 10 | DIBBS |
| 4730-01-287-4695 | 2015-05-145 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-287-4695
Technical Data | NSN 4730-01-287-4695
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-B63-COMP356 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY1,CL1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MAXIMUM OPERATING PRESSURE | 125.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | A36 THREADED INTERNAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B14B PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPTF ALL ENDS |
| NOMINAL THREAD SIZE | 1.250 INCHES ALL ENDS |
| NOMINAL OVERALL LENGTH | 3.000 INCHES |
| SPECIAL FEATURES | CENTER WRENCHING FACILITY |
Restrictions/Controls & Freight Information | NSN 4730-01-287-4695
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-287-4695
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
