NSN 4730-01-287-7710 ASP4GN, ASP-4GN, 01-287-7710
Product Details | TUBE CAP
4730-01-287-7710 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: ASP4GN, ASP-4GN, 4730-01-287-7710, 01-287-7710, 4730012877710, 012877710
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 OCT 1988 | 01-287-7710 | 06074 ( CAP, TUBE ) |

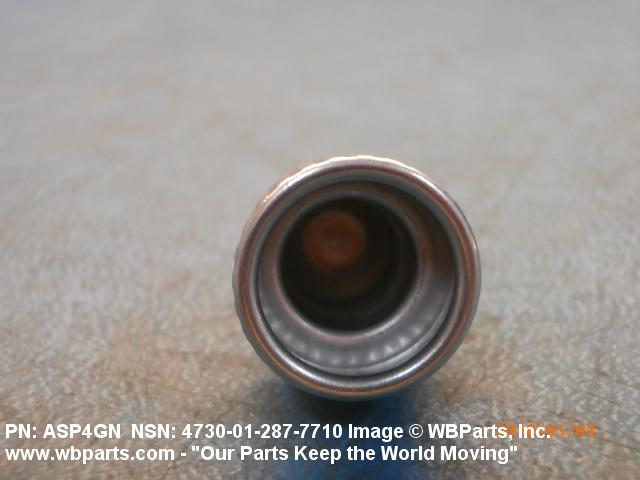

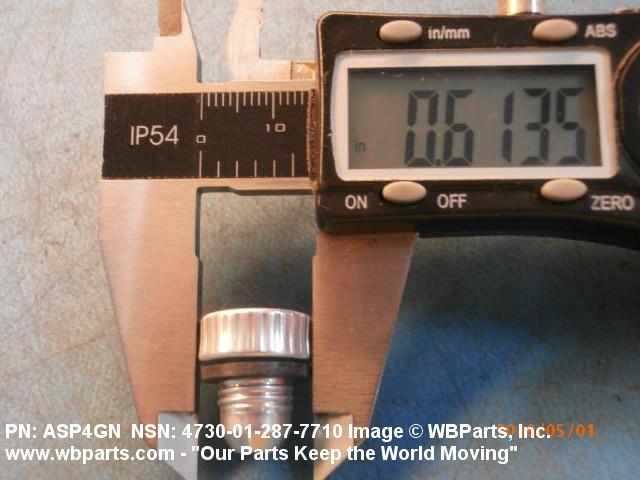

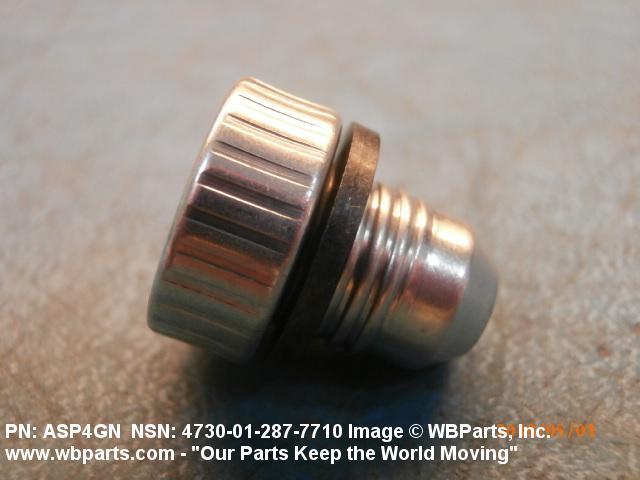

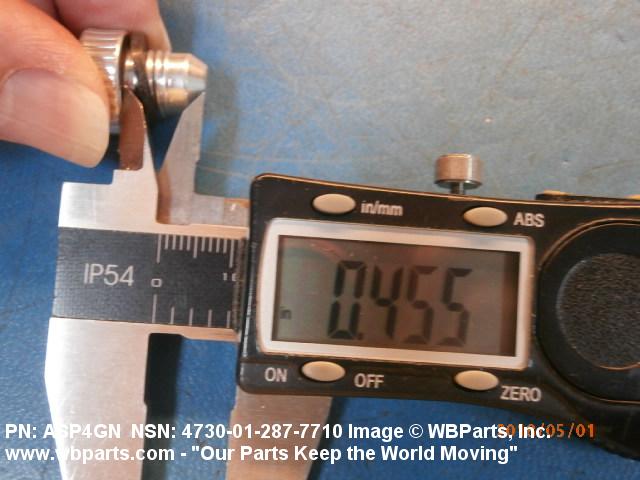

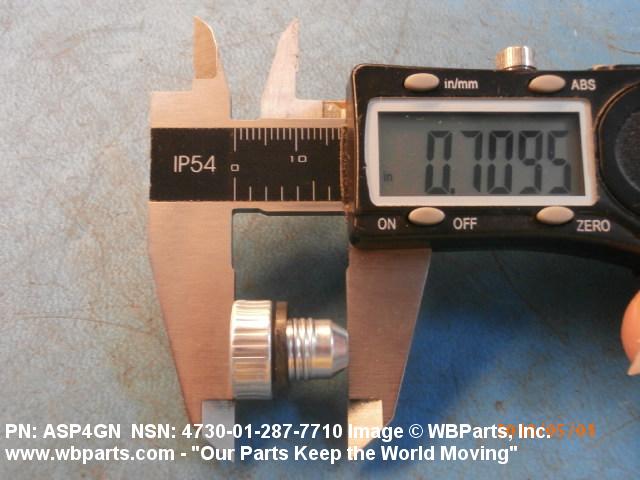

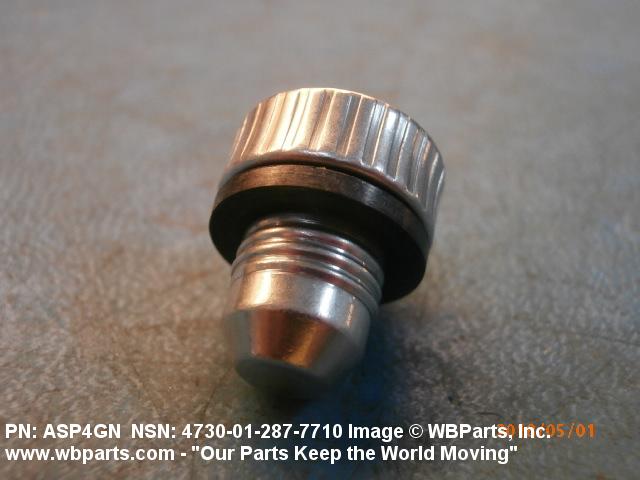

Drawings & Photos | NSN 4730-01-287-7710
Demand History | NSN 4730-01-287-7710
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ASP4GN | 2024-06-163 | 10 | US |
| ASP4GN | 2018-04-116 | 240 | United States |
| ASP4GN | 2015-01-22 | 100 | Canada |
| ASP4GN | 2015-01-16 | 100 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-287-7710
Technical Data | NSN 4730-01-287-7710
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| STYLE DESIGNATOR | A16 CAP, TUBE COUPLING, GASKET SEAL |
| NOMINAL THREAD SIZE | 0.438 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 20 EXTERNAL |
| MANUFACTURERS CODE | 95760 |
| DESIGN CONTROL REFERENCE | ASP-4GN |
Restrictions/Controls & Freight Information | NSN 4730-01-287-7710
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
