NSN 4730-01-306-0268 2621-228-01, 2621-228-01 PIECE 193G, 262122801PIECE193G
Product Details | PIPE FLANGE
4730-01-306-0268 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 2621-228-01, 2621-228-01 PIECE 193G, 262122801PIECE193G, 704-4685281 F3, 7044685281F3, 4730-01-306-0268, 01-306-0268, 4730013060268, 262122801, 013060268
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 AUG 1989 | 01-306-0268 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-306-0268
Demand History | NSN 4730-01-306-0268
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2621-228-01 PIECE 193G | 2025-09-268 | 2 | DIBBS |
| 2621-228-01 PIECE 193G | 2023-05-124 | 4 | DIBBS |
| 2621-228-01 PIECE 193G | 2023-03-68 | 1 | DIBBS |
| 2621-228-01 PIECE 193G | 2023-02-53 | 1 | DIBBS |
| 4730-01-306-0268 | 2015-07-186 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-306-0268
Technical Data | NSN 4730-01-306-0268
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-15726,70-30 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 5.938 INCHES NOMINAL |
| FLANGE DIAMETER | 7.500 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.688 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 8 |

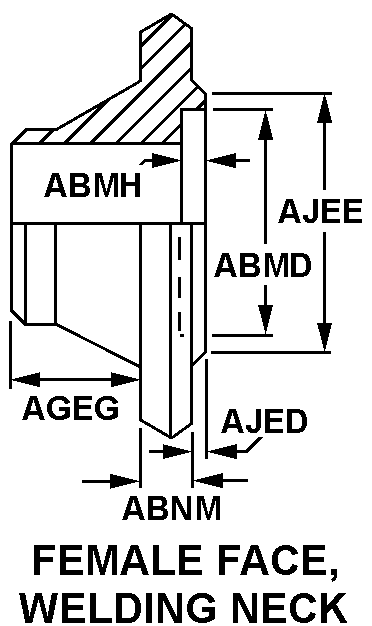

| FLANGE SECTION STYLE | 9 FEMALE FACE, WELDING NECK |
| RECESS DIAMETER | 3.140 INCHES MINIMUM AND 3.160 INCHES MAXIMUM |
| RECESS DEPTH | ANY ACCEPTABLE |
| THICKNESS | 0.940 INCHES MINIMUM AND 0.970 INCHES MAXIMUM |
| RAISED FACE HEIGHT | 0.015 INCHES MINIMUM AND 0.031 INCHES MAXIMUM |
| RAISED FACE DIAMETER | 4.500 INCHES NOMINAL |
| NECK HEIGHT | ANY ACCEPTABLE |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 3.000 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 700.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| FACE SEATING SURFACE CONDITION | GROUND |
| GROOVE CROSS-SECTIONAL SHAPE | RECTANGULAR |
| GROOVE DEPTH | 0.111 INCHES MINIMUM AND 0.113 INCHES MAXIMUM |
| GROOVE WIDTH | 0.188 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| GROOVE PITCH DIAMETER | ANY ACCEPTABLE |
