NSN 4730-01-306-7093 F1000F15E, F1000-F15E, 2910257
Product Details | TUBE ELBOW
4730-01-306-7093 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: F1000F15E, F1000-F15E, 2910257, 4730-01-306-7093, 01-306-7093, 4730013067093, 013067093
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 AUG 1989 | 01-306-7093 | 03771 ( ELBOW, TUBE ) |

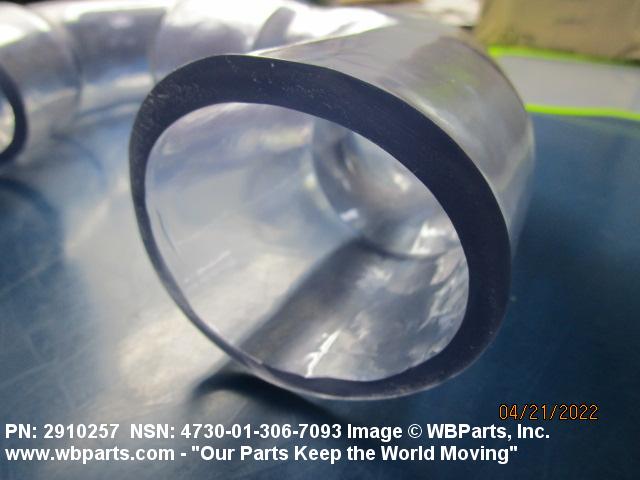

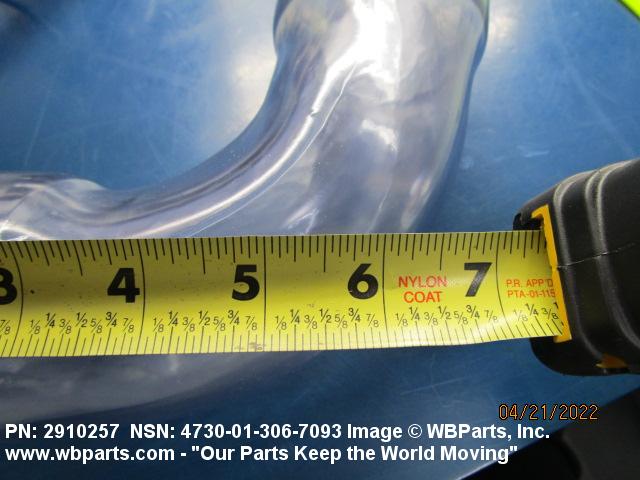

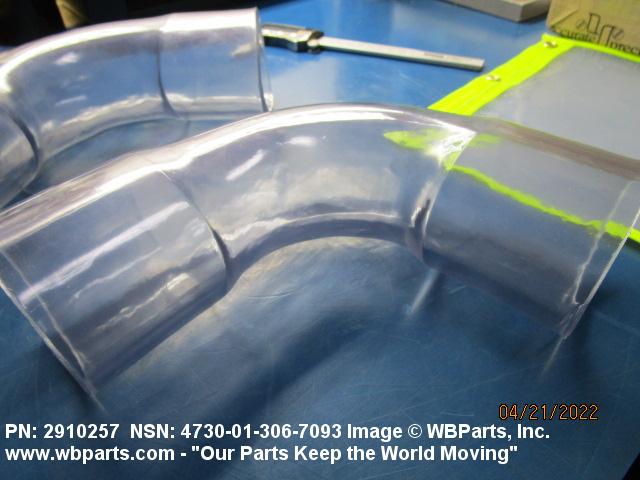

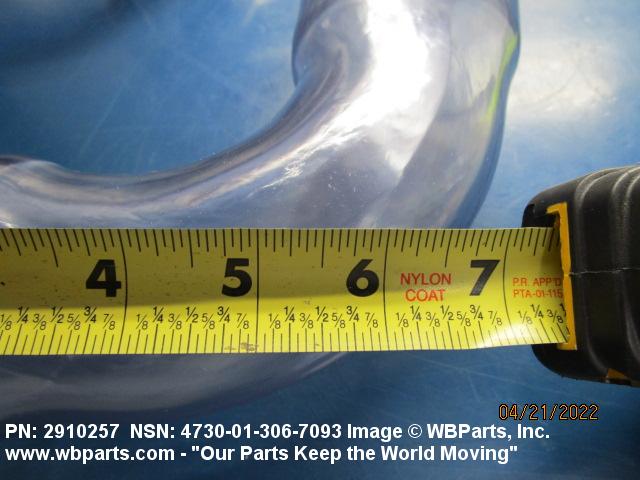

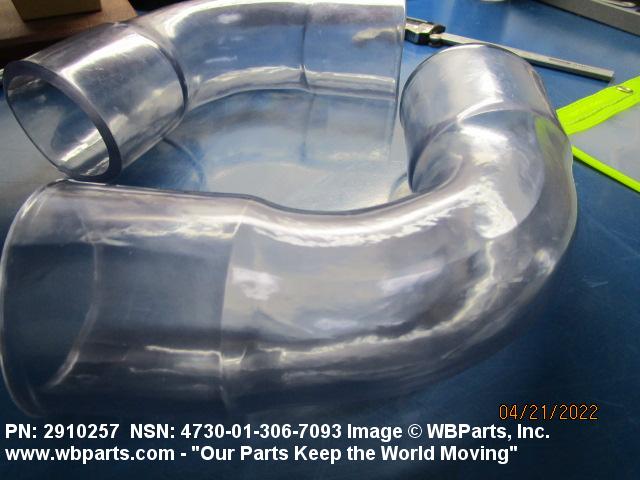

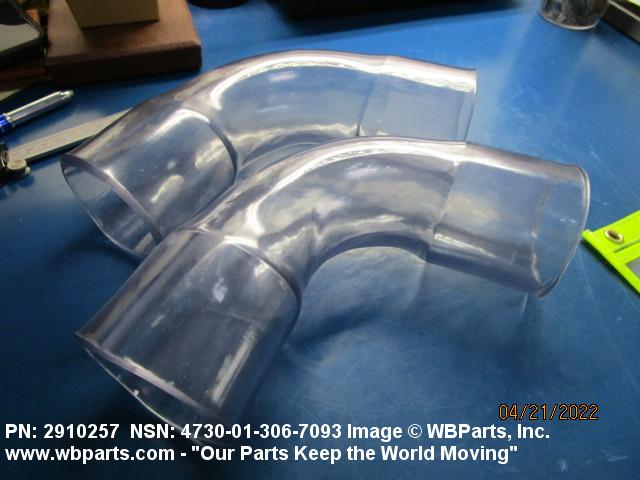

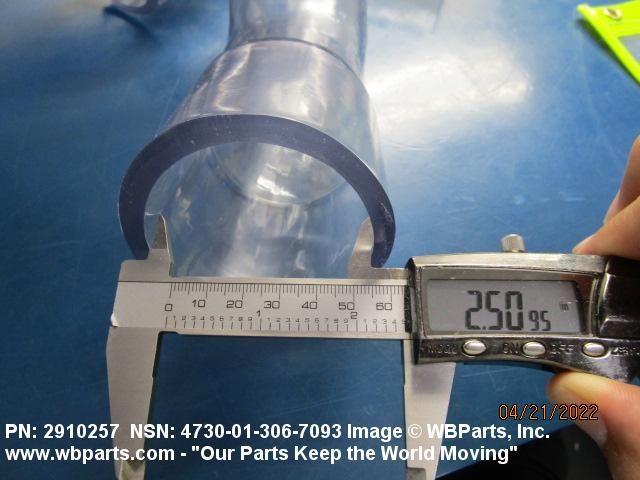

Drawings & Photos | NSN 4730-01-306-7093
Demand History | NSN 4730-01-306-7093
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-306-7093 | 2025-11-310 | 139 | DIBBS |
| 4730-01-306-7093 | 2025-10-287 | 240 | DIBBS |
| 4730-01-306-7093 | 2022-04-97 | 2 | United States |
| 4730-01-306-7093 | 2021-01-12 | 3 | United States |
| 4730-01-306-7093 | 2019-10-295 | 500 | DIBBS |
| 4730-01-306-7093 | 2019-06-178 | 230 | DIBBS |
| 4730-01-306-7093 | 2019-05-148 | 274 | DIBBS |
| 4730-01-306-7093 | 2019-05-136 | 274 | DIBBS |
| 4730-01-306-7093 | 2017-12-345 | 343 | DIBBS |
| 4730-01-306-7093 | 2017-11-334 | 343 | DIBBS |
| 4730-01-306-7093 | 2017-05-150 | 306 | DIBBS |
| 4730-01-306-7093 | 2017-05-138 | 306 | DIBBS |
| 4730-01-306-7093 | 2016-06-164 | 157 | DIBBS |
| 4730-01-306-7093 | 2015-12-340 | 174 | DIBBS |
| 4730-01-306-7093 | 2015-08-232 | 136 | DIBBS |
| 4730-01-306-7093 | 2015-01-15 | 148 | DIBBS |
| 4730-01-306-7093 | 2014-01-23 | 99 | DIBBS |
| 4730-01-306-7093 | 2014-01-08 | 99 | DIBBS |
| 4730-01-306-7093 | 2012-11-307 | 172 | DIBBS |
| 4730-01-306-7093 | 2012-10-286 | 71 | DIBBS |
| 4730-01-306-7093 | 2011-12-343 | 96 | United States |
| 4730-01-306-7093 | 2011-04-116 | 136 | DIBBS |
| 4730-01-306-7093 | 2010-09-266 | 108 | DIBBS |
| 4730-01-306-7093 | 2010-06-181 | 69 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-306-7093
Related Products | NSN 4730-01-306-7093
Technical Data | NSN 4730-01-306-7093
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| MEDIA FOR WHICH DESIGNED | AIR SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 180.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | B36 PLAIN ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 2.500 INCHES ALL ENDS |
| LEG LENGTH | 5.500 INCHES MINIMUM AND 6.500 INCHES MAXIMUM ALL ENDS |
| REDUCED PASSAGE NOMINAL INSIDE DIAMETER | 2.000 INCHES ALL ENDS |
| III FSC APPLICATION DATA | AEGIS ICSS UNIQUE ITEMS |
| MANUFACTURERS CODE | 06034 |
| DESIGN CONTROL REFERENCE | F1000-F15E |
Restrictions/Controls & Freight Information | NSN 4730-01-306-7093
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-306-7093
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
