NSN 4730-01-325-4079 MS20756J24, MS20756-J24, 01-325-4079
Product Details | SWIVEL RETAINING PIPE FLANGE
4730-01-325-4079 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).
Part Alternates: MS20756J24, MS20756-J24, 4730-01-325-4079, 01-325-4079, 4730013254079, 013254079
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 SEP 1990 | 01-325-4079 | 03799 ( FLANGE, PIPE, SWIVEL RETAINING ) |

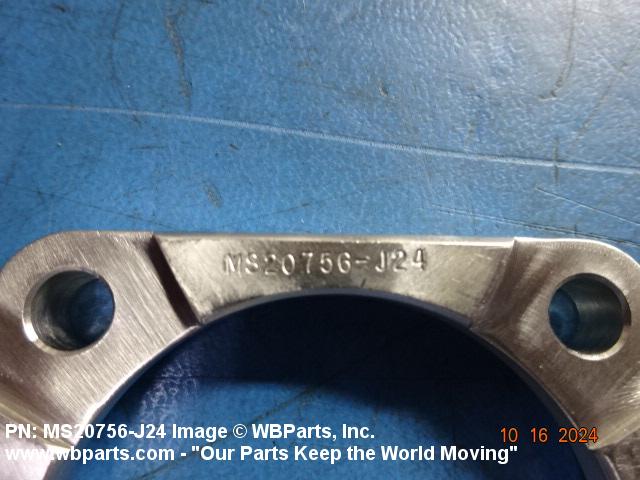

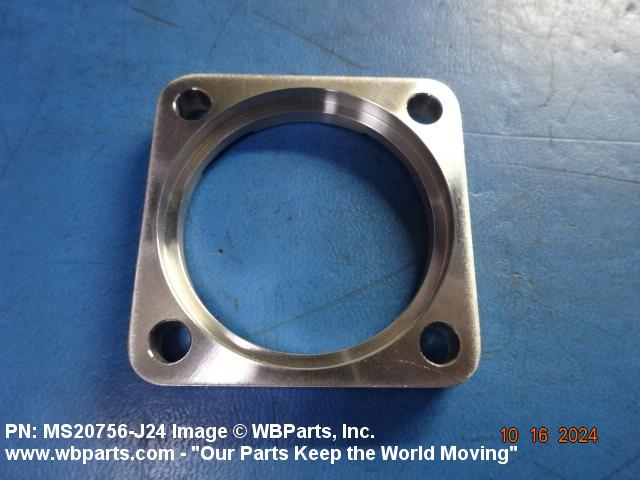

Drawings & Photos | NSN 4730-01-325-4079
Demand History | NSN 4730-01-325-4079
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20756J24 | 2024-10-275 | 1 | United States |
| MS20756J24 | 2024-04-100 | 10 | United States |
| 4730-01-325-4079 | 2021-06-179 | 24 | US |
| 4730-01-325-4079 | 2021-05-125 | 100 | United States |
Cross Reference | NSN 4730-01-325-4079
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20756-J24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-325-4079
Technical Data | NSN 4730-01-325-4079
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| STYLE DESIGNATOR | 7 SQUARE, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 2.562 INCHES NOMINAL |

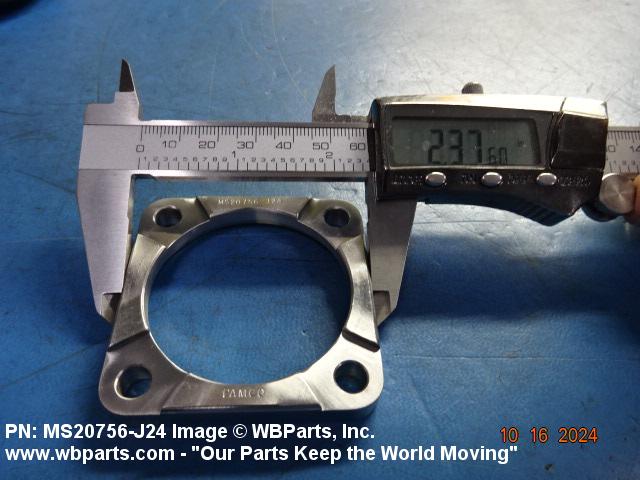

| FLANGE WIDTH | 2.375 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.266 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| FLANGE SECTION STYLE | 19 PLAIN RECESSED FACE |
| RECESS DIAMETER | 2.135 INCHES NOMINAL |
| RECESS DEPTH | 0.168 INCHES NOMINAL |
| THICKNESS | 0.297 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.500 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 500.0 KILOGRAMS PER SQUARE CENTIMETER FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT FUEL/OIL, HYDROCARBON |
| FACE SEATING SURFACE CONDITION | MACHINED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20756-J24 |
Restrictions/Controls & Freight Information | NSN 4730-01-325-4079
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
