NSN 4730-01-329-0450 MS21902K10, 1576-18-185, 01-329-0450
Product Details | TUBE NIPPLE
4730-01-329-0450 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: MS21902K10, 1576-18-185, 4730-01-329-0450, 01-329-0450, 4730013290450, 157618185, 013290450
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 NOV 1990 | 01-329-0450 | 03783 ( NIPPLE, TUBE ) |

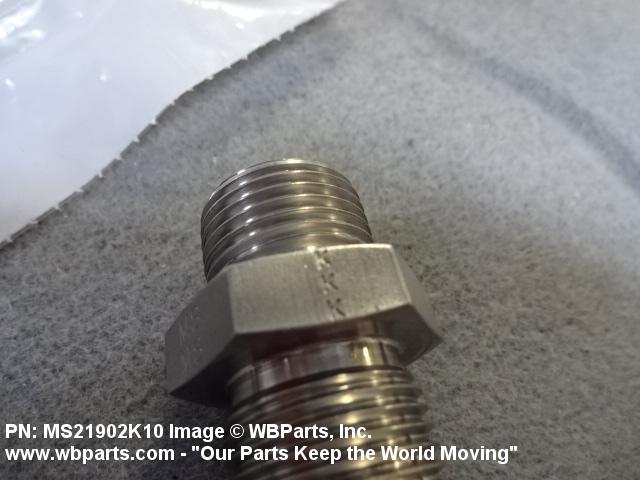

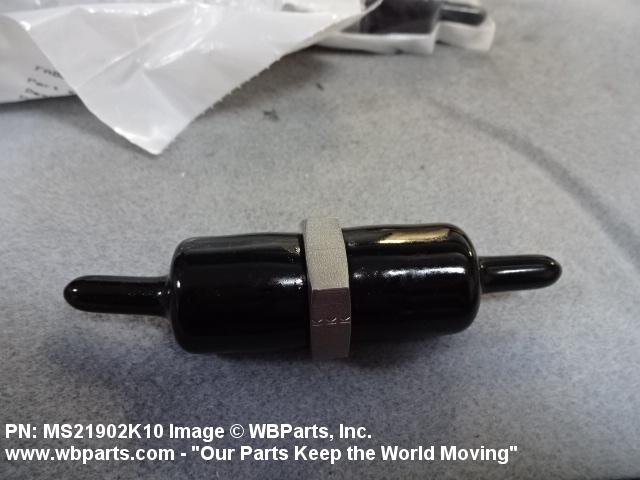

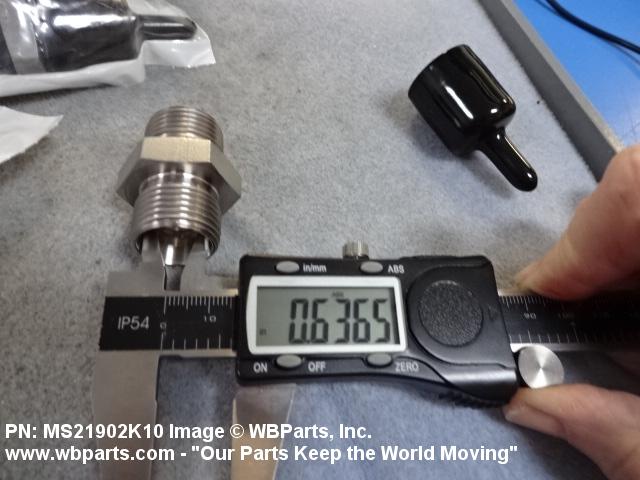

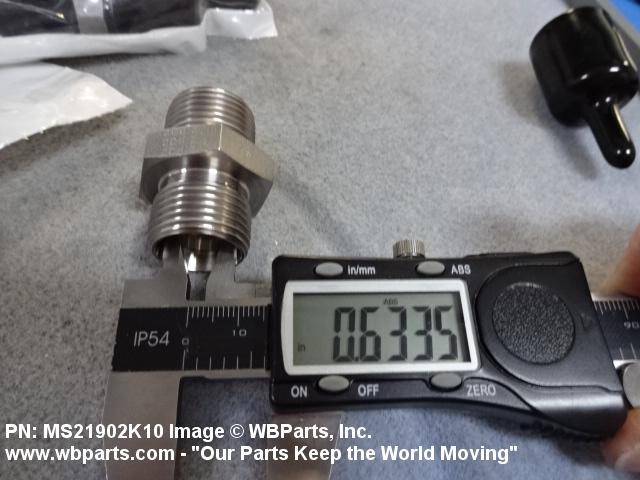

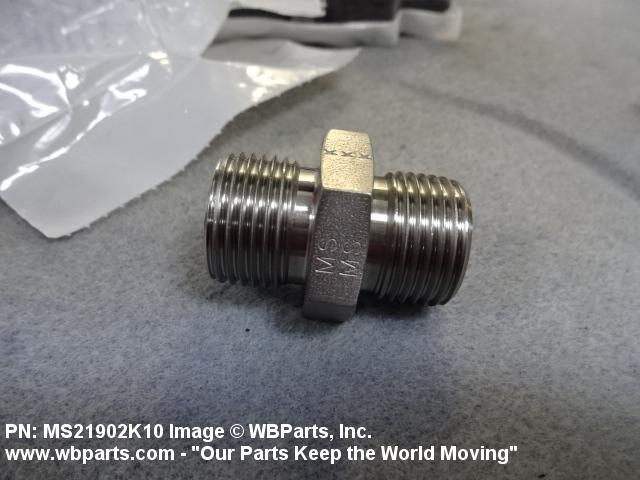

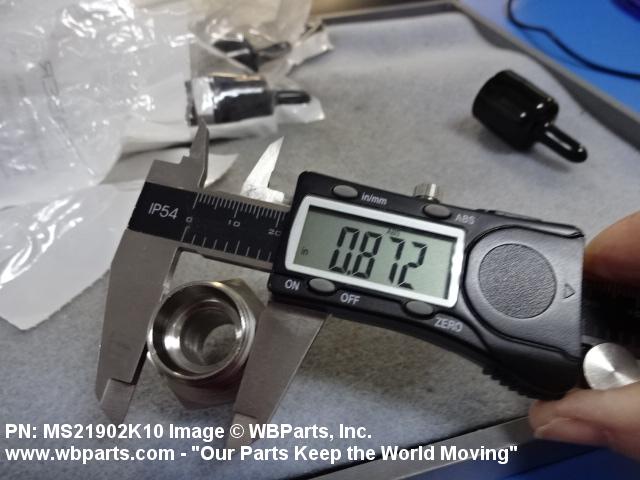

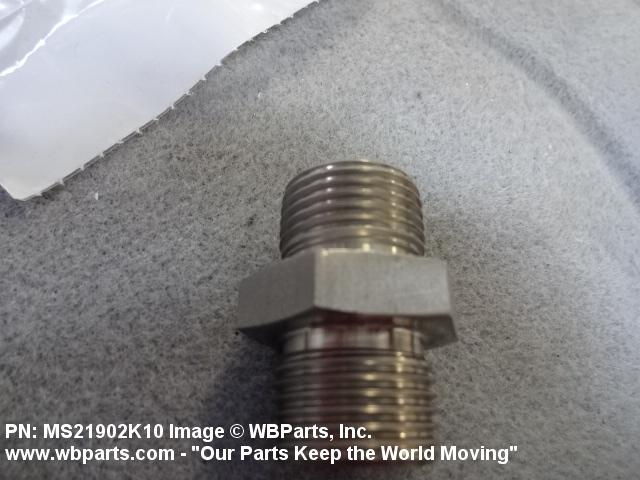

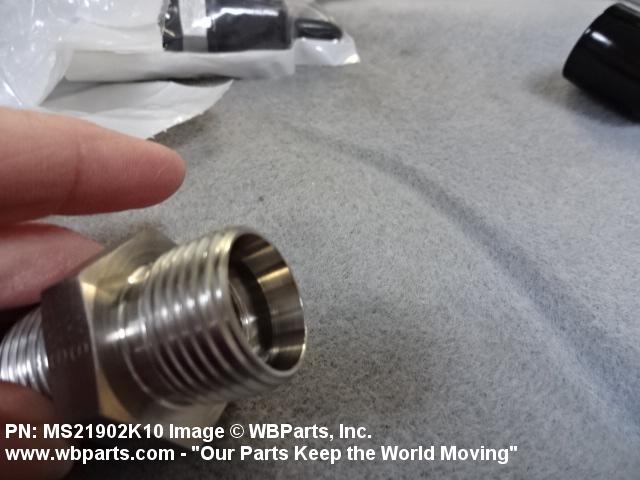

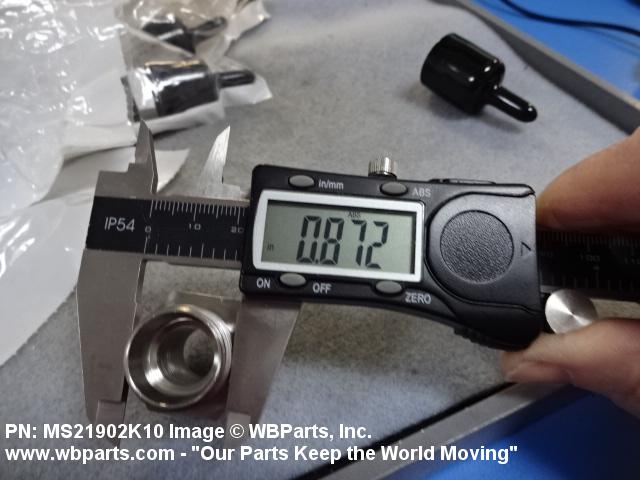

Drawings & Photos | NSN 4730-01-329-0450
Demand History | NSN 4730-01-329-0450
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21902K10 | 2025-11-330 | 100 | United States |
| MS21902K10 | 2023-10-277 | 2 | US |
| MS21902K10 | 2022-08-215 | 2 | United States |
| MS21902K10 | 2019-01-02 | 1 | US |
| MS21902K10 | 2017-05-129 | 10 | United States |
| MS21902K10 | 2017-04-94 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-329-0450
Technical Data | NSN 4730-01-329-0450
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OR STEEL COMP 304 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | A66 FLARELESS W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B66 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |
| NOMINAL THREAD SIZE | 0.875 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 14 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.563 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS21902 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21902K10 |
Restrictions/Controls & Freight Information | NSN 4730-01-329-0450
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
