NSN 4730-01-344-1692 SLAS409904, SLAS4099-04 , RFK990413
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-01-344-1692 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: SLAS409904, SLAS4099-04 , RFK990413, RFK9904-13, 7D0109, 7D010904, 7D0109-04, 32790LP04TA , 4730-01-344-1692, 01-344-1692, 4730013441692, 013441692
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 AUG 1991 | 01-344-1692 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

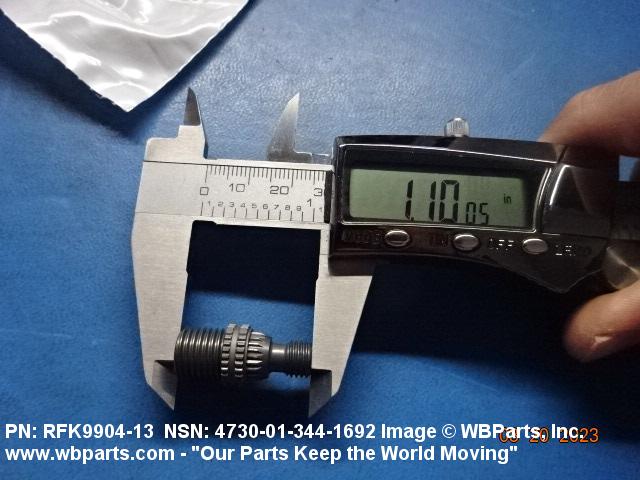

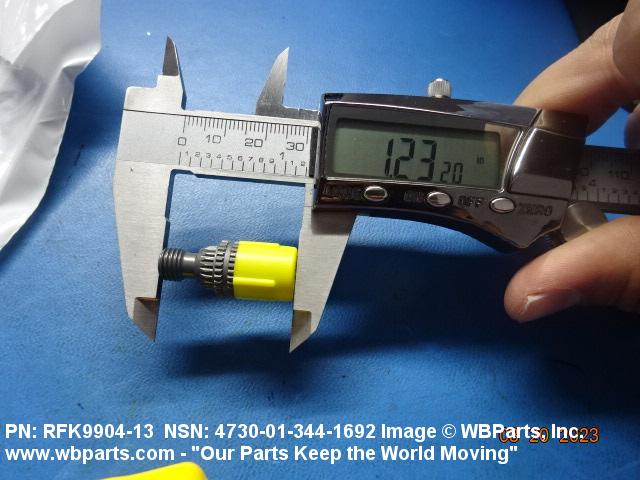

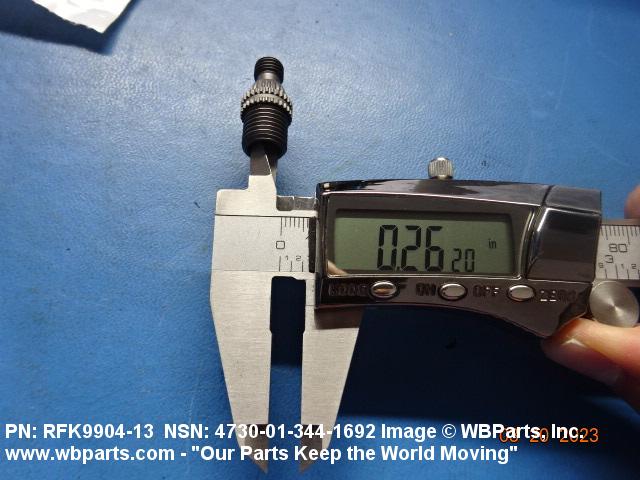

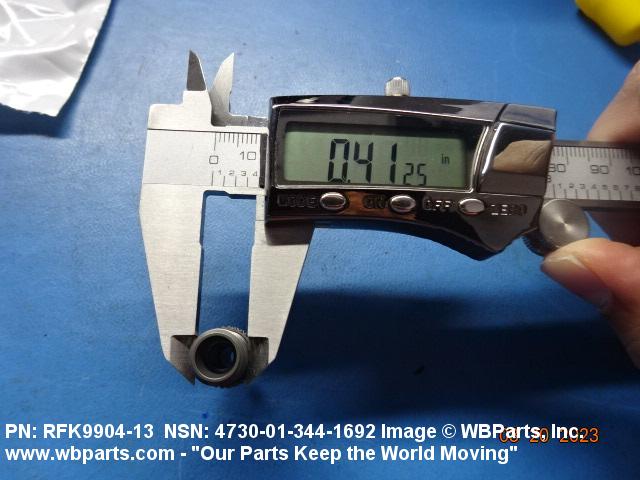

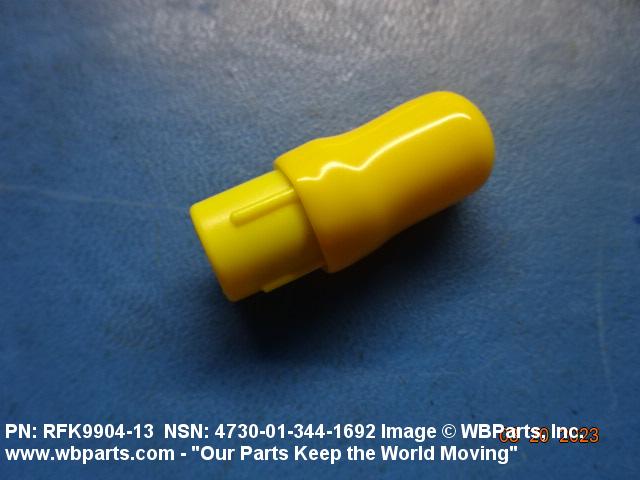

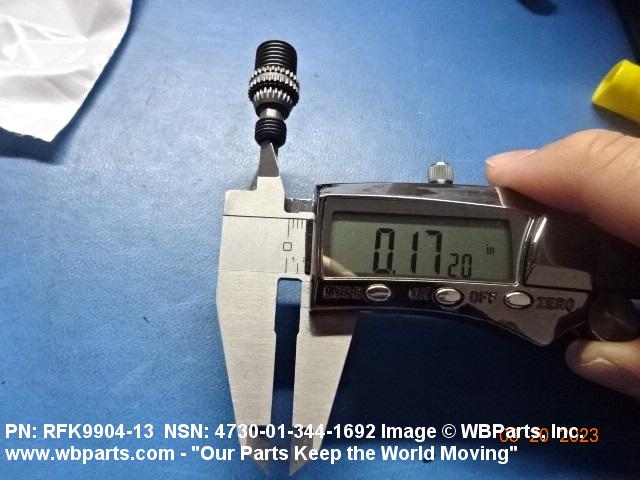

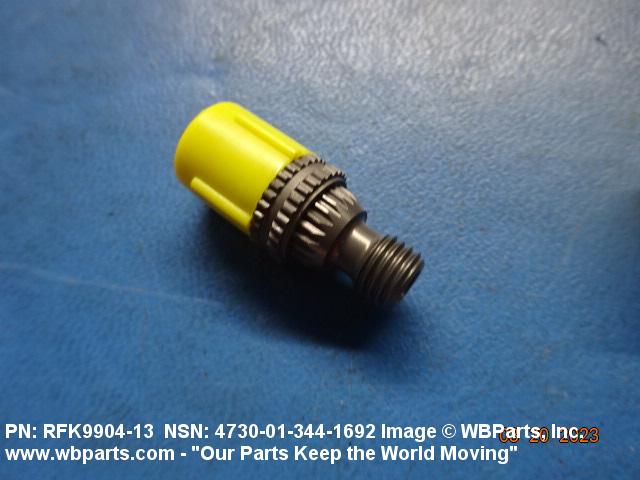

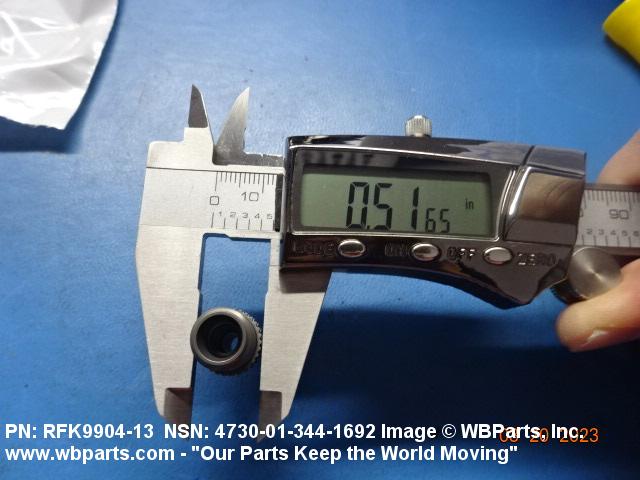

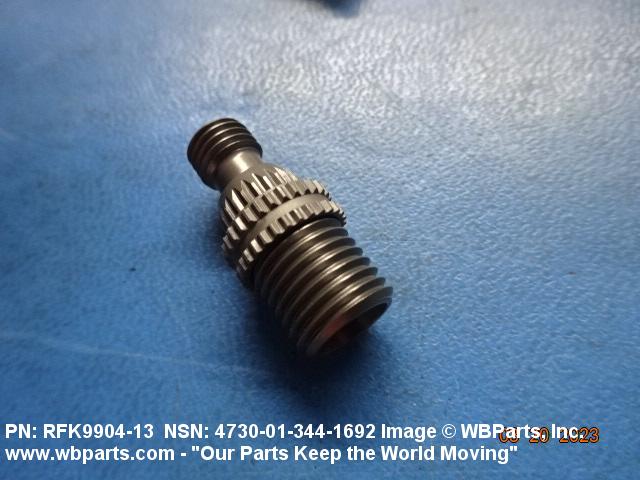

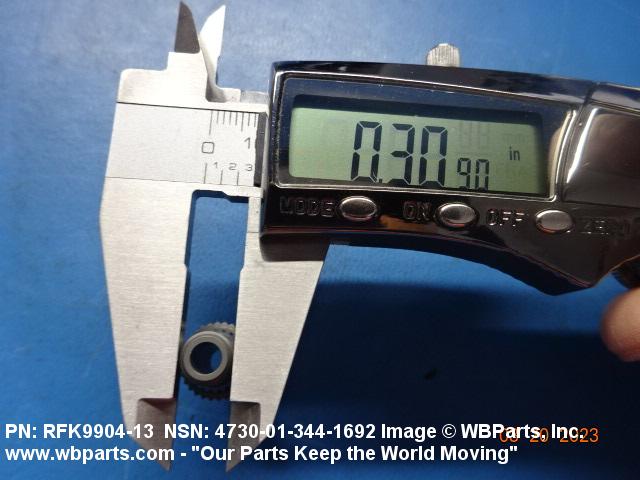

Drawings & Photos | NSN 4730-01-344-1692
Demand History | NSN 4730-01-344-1692
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-344-1692 | 2025-10-289 | 8 | United States |
| 4730-01-344-1692 | 2025-10-286 | 11 | United States |
| RFK990413 | 2023-09-267 | 2000 | United States |
| 4730-01-344-1692 | 2023-03-68 | 3 | United States |
| RFK990413 | 2022-12-362 | 20 | us |
| 4730-01-344-1692 | 2022-12-346 | 20 | UK |
Cross Reference | NSN 4730-01-344-1692
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32790LP04TA | 14397 | FABER ENTERPRISES, INC. |
| 7D0109 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 7D0109-04 | 88277 | BOEING COMPANY, THE DBA BOEING |
| RFK9904-13 | 66776 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| RFK9904-13 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| SLAS4099-04 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-344-1692
Technical Data | NSN 4730-01-344-1692
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MAXIMUM OPERATING PRESSURE | 4000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.312 INCHES 2ND END |
| THREAD CLASS | 3A ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.099 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 PREFORMED PACKING |
| III END ITEM IDENTIFICATION | C-17A ACFT |
Restrictions/Controls & Freight Information | NSN 4730-01-344-1692
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052250 | PIPE R TUBING R PIPE FITTINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-344-1692
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
