NSN 4730-01-344-3214 MS21926K20, MS21926-K20, 01-344-3214
Product Details | TUBE ELBOW
4730-01-344-3214 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS21926K20, MS21926-K20, 4730-01-344-3214, 01-344-3214, 4730013443214, 013443214
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 AUG 1991 | 01-344-3214 | 03771 ( ELBOW, TUBE ) |

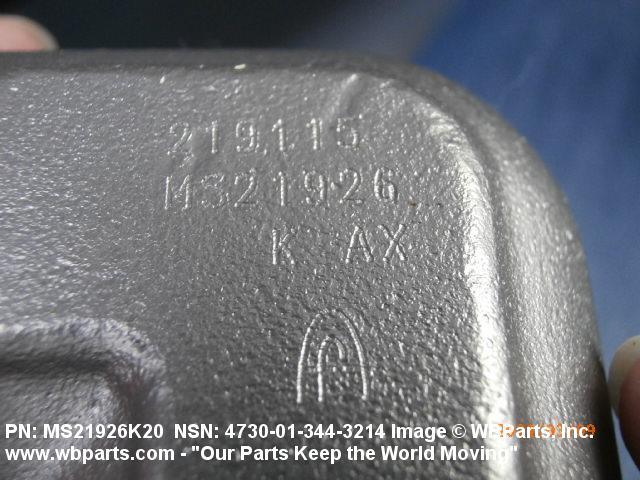

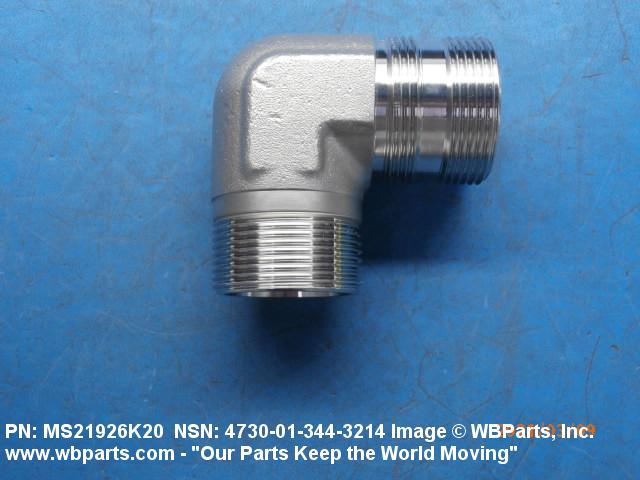

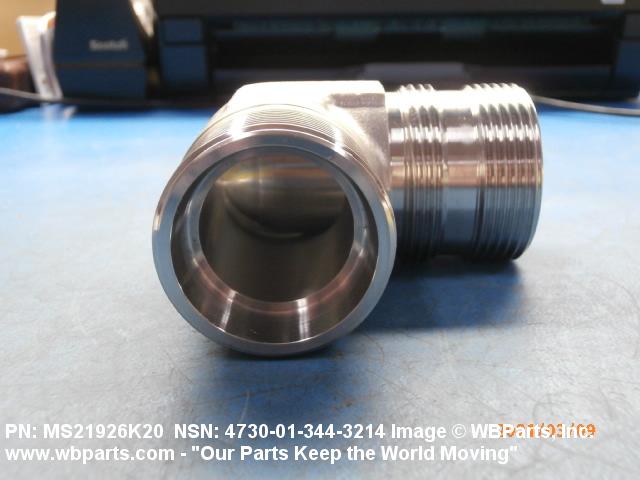

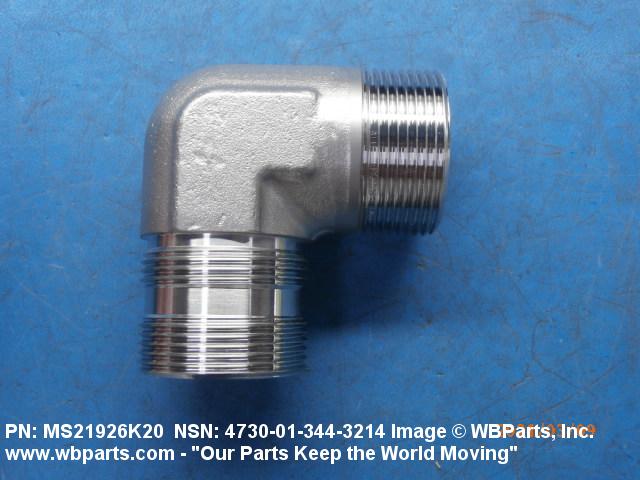

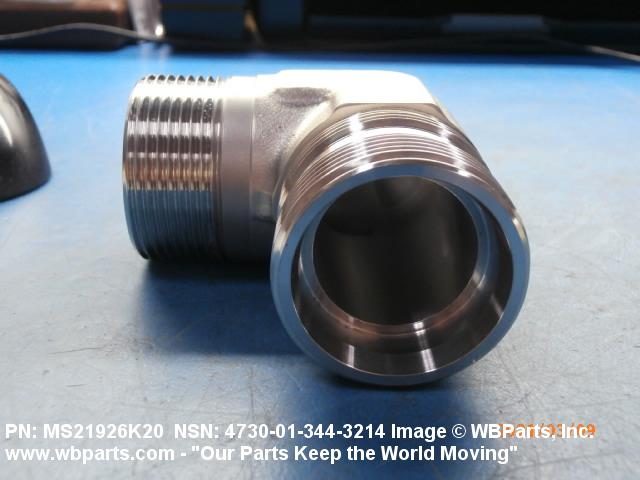

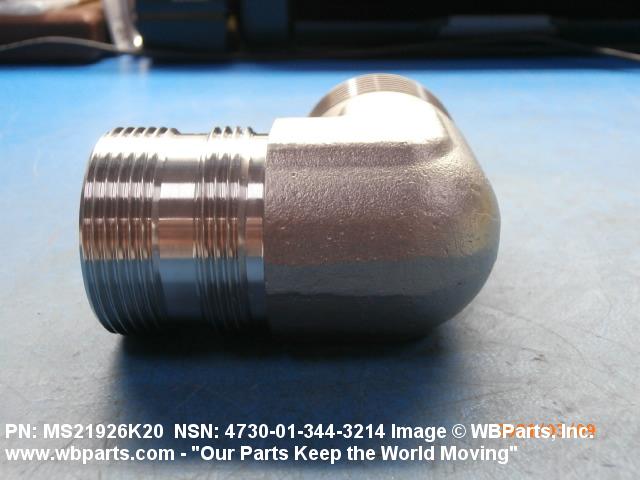

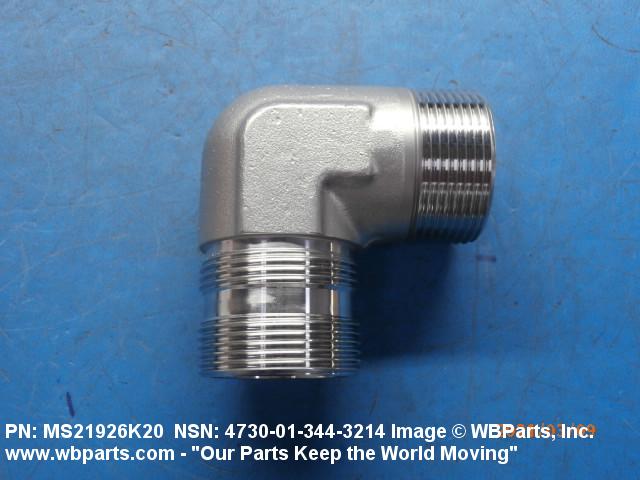

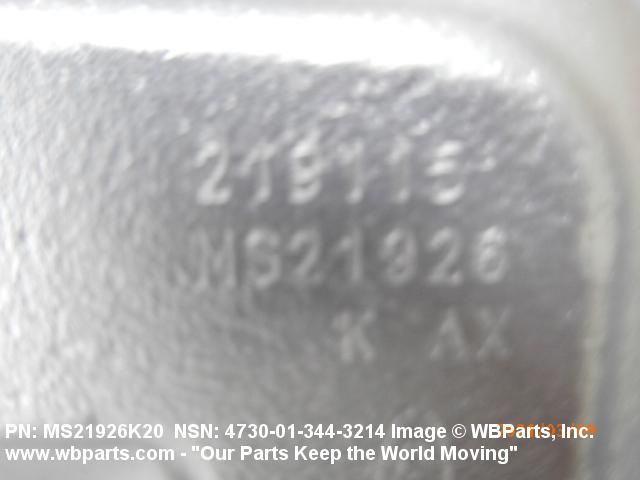

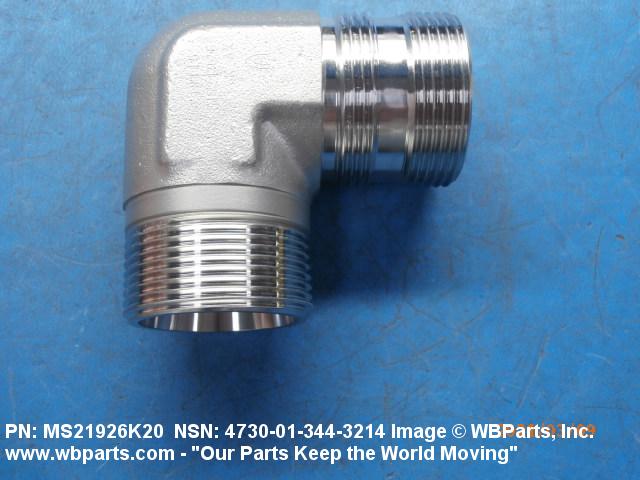

Drawings & Photos | NSN 4730-01-344-3214
Demand History | NSN 4730-01-344-3214
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-344-3214 | 2021-02-47 | 20 | Denmark |
Cross Reference | NSN 4730-01-344-3214
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21926-K20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-344-3214
Technical Data | NSN 4730-01-344-3214
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS THREADED EXTERNAL TUBE 1ST END BULKHEAD |
| CONNECTION STYLE | B66 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |

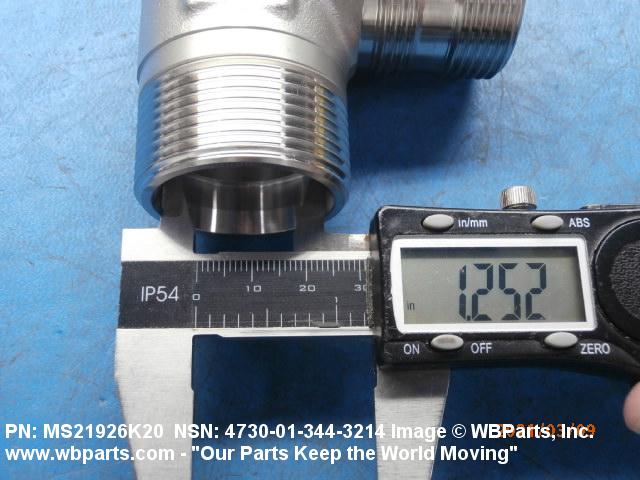

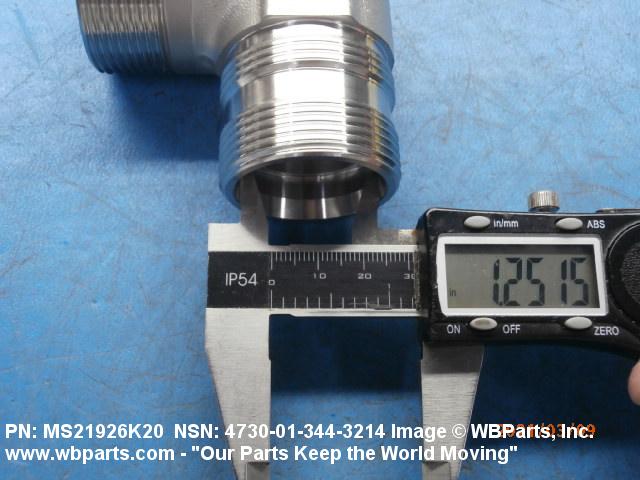

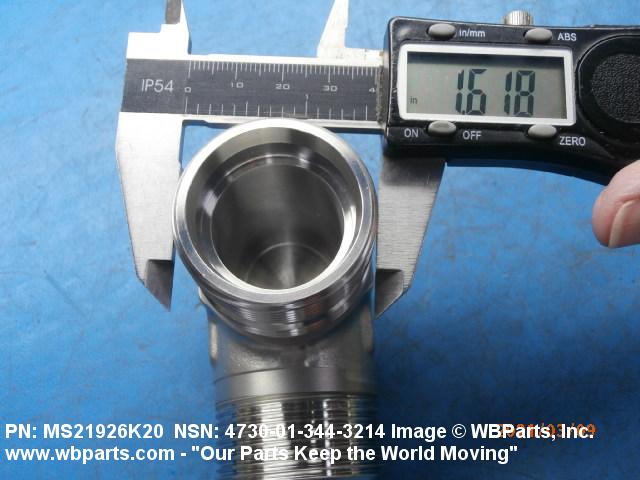

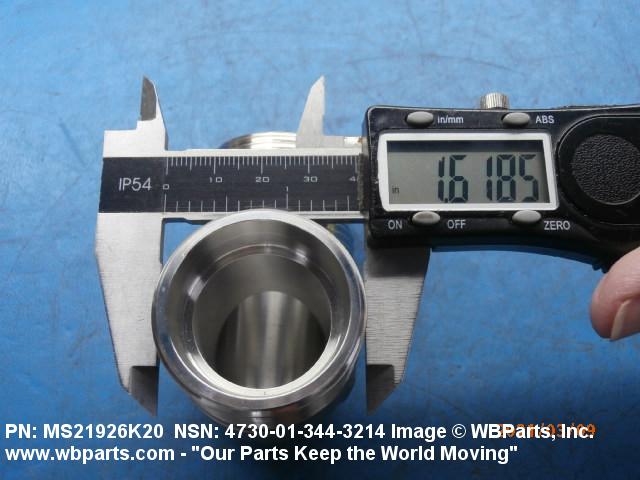

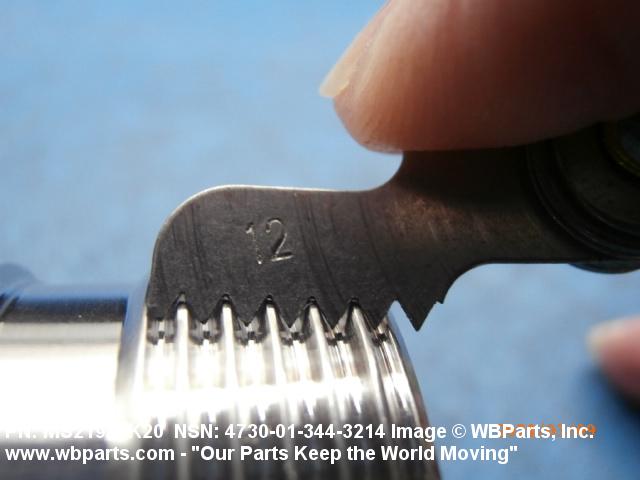

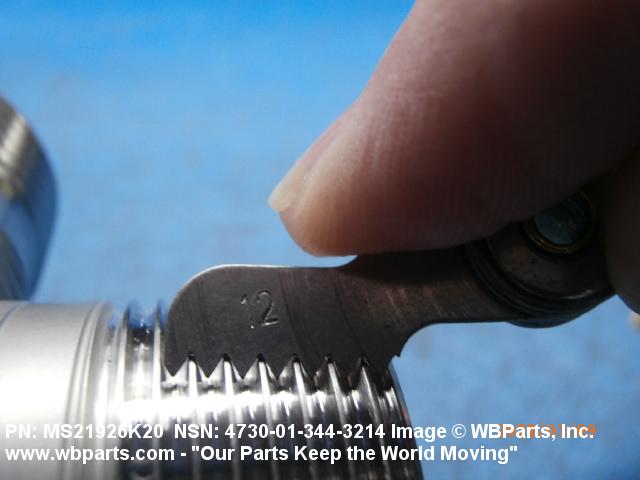

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.250 INCHES ALL ENDS 1.250 INCHES 1ST END BULKHEAD |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS UNJ 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 1.625 INCHES ALL ENDS 1.625 INCHES 1ST END BULKHEAD |
| THREAD QUANTITY PER INCH | 12 ALL ENDS 12 1ST END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 1ST END BULKHEAD |

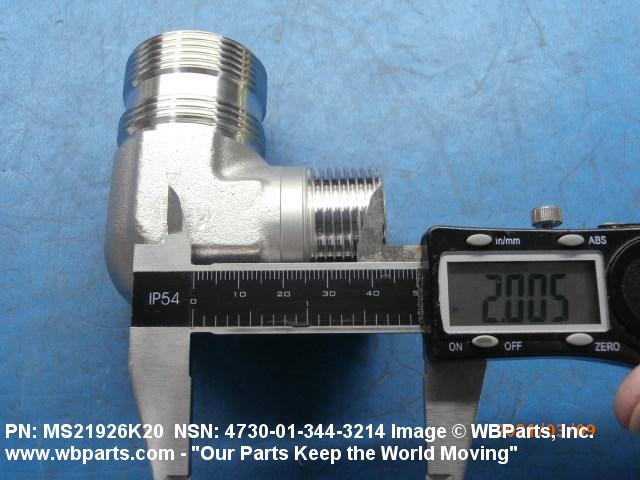

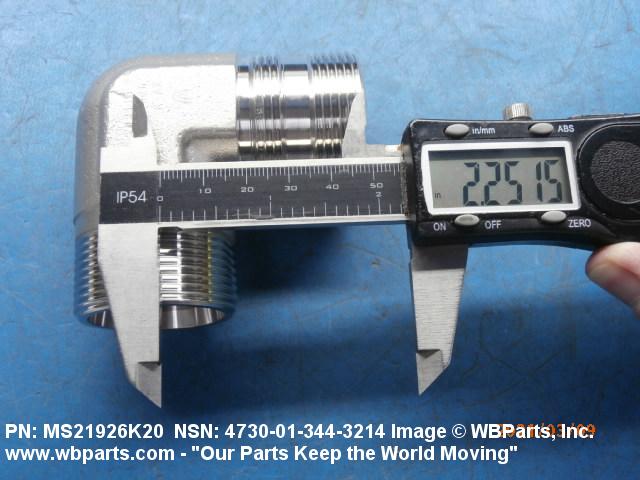

| LEG LENGTH | 2.250 INCHES NOMINAL 1ST END 2.000 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21926-K20 |
Restrictions/Controls & Freight Information | NSN 4730-01-344-3214
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
