NSN 4730-01-350-9037 CMC-4-5603-3/8-08, CMC456033808, MILF24787
Product Details | HOSE TO BOSS STRAIGHT ADAPTER
4730-01-350-9037 An adapter having standard hose threads on one end, an incomplete part of a threaded end connection that grips the hose directly, or an unthreaded end designed to accommodate a hose. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a hose or hose fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, HOSE and CONNECTOR, HOSE, BULKHEAD. Excludes items having flanged ends.
Part Alternates: CMC-4-5603-3/8-08, CMC456033808, MILF24787, MIL-F-24787, MIL-F-24787/3, MILF247873, 4-190885-3/8-8, 4190885388, 4730-01-350-9037, 01-350-9037, 4730013509037, 013509037
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 DEC 1991 | 01-350-9037 | 22673 ( ADAPTER, STRAIGHT, HOSE TO BOSS ) |

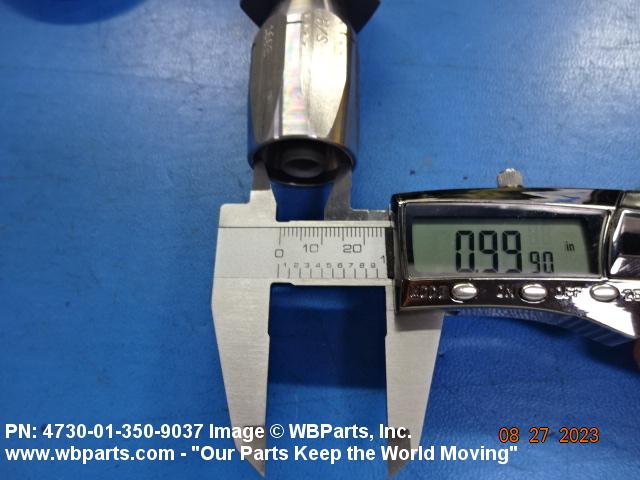

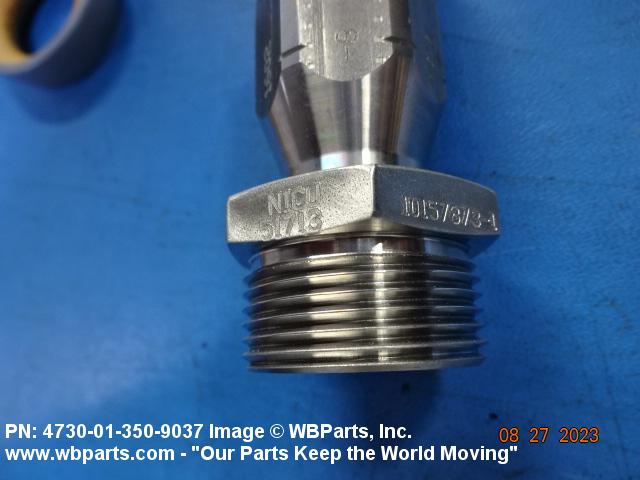

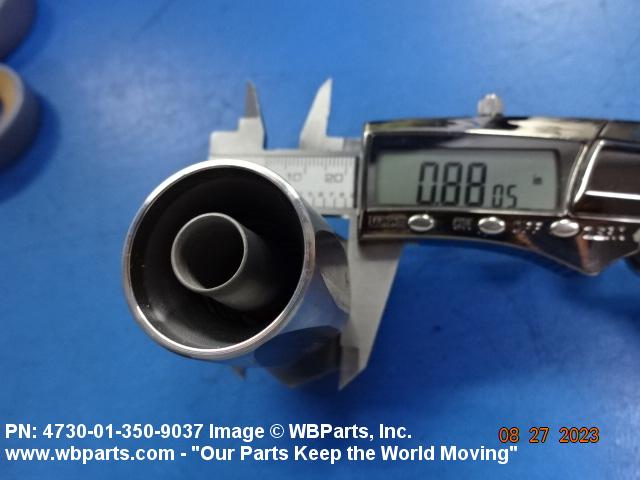

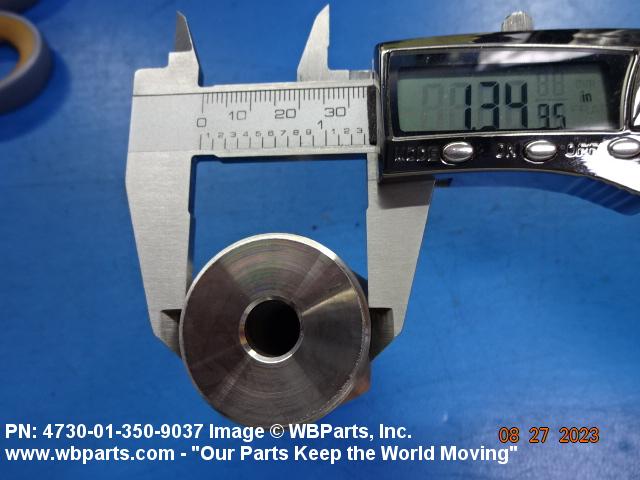

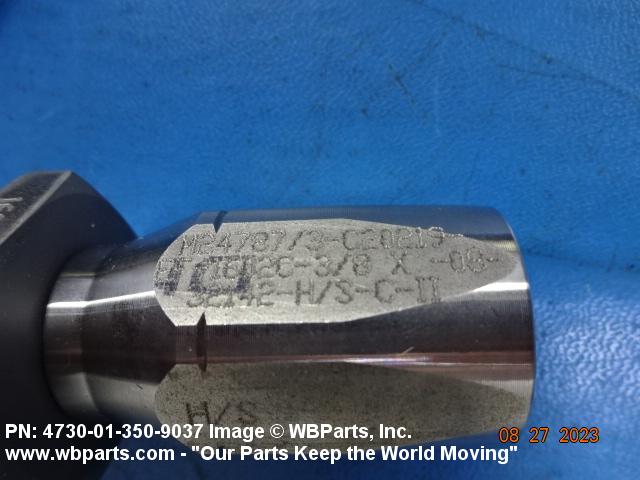

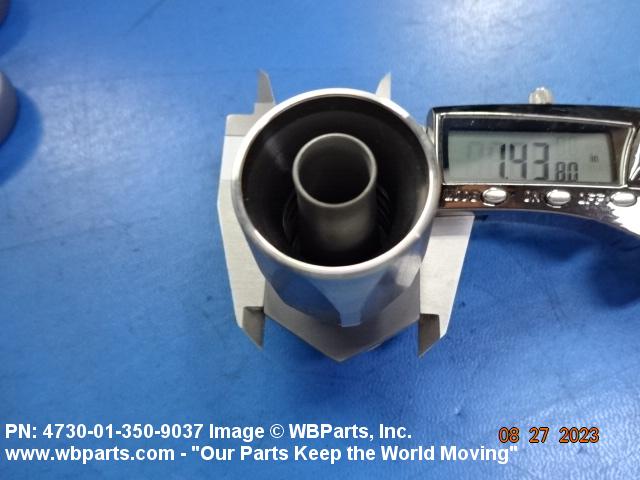

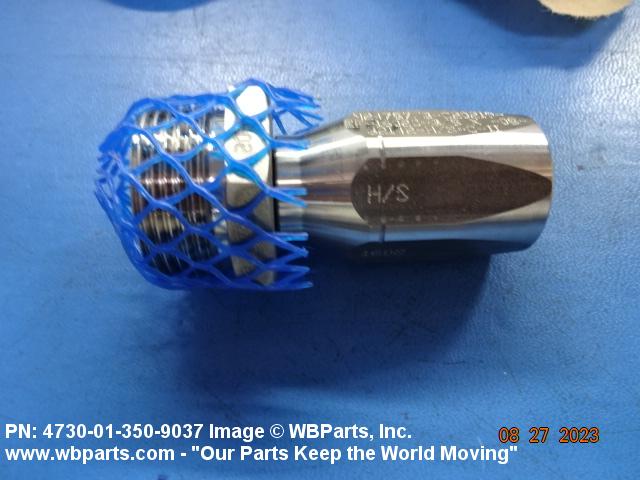

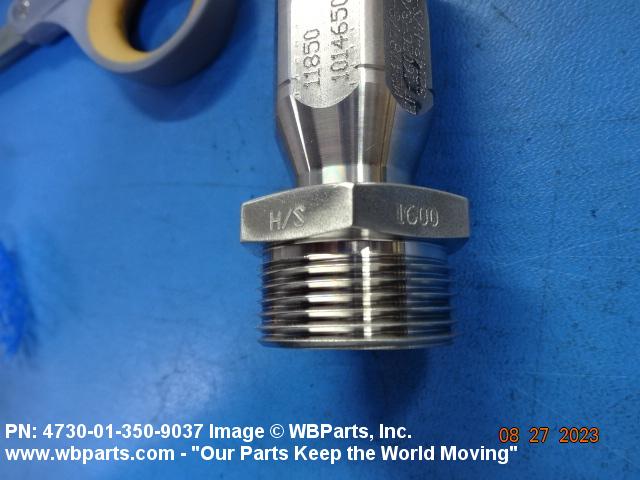

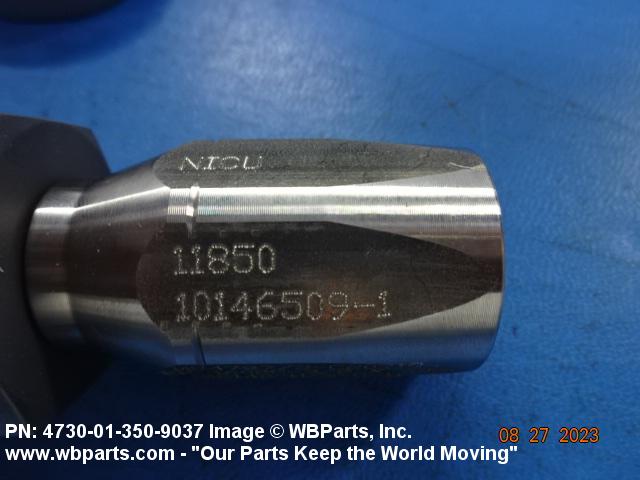

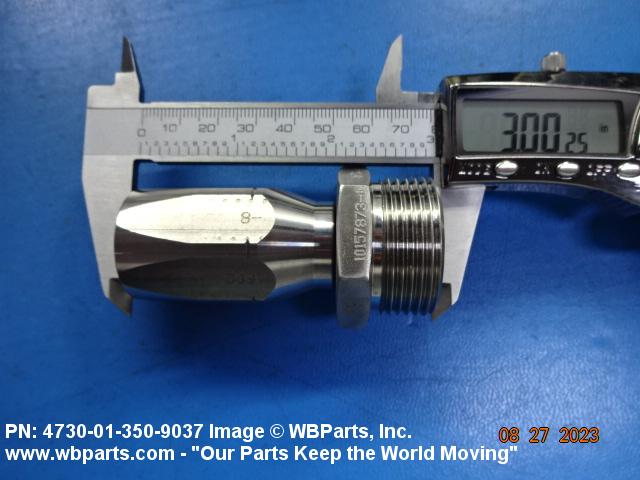

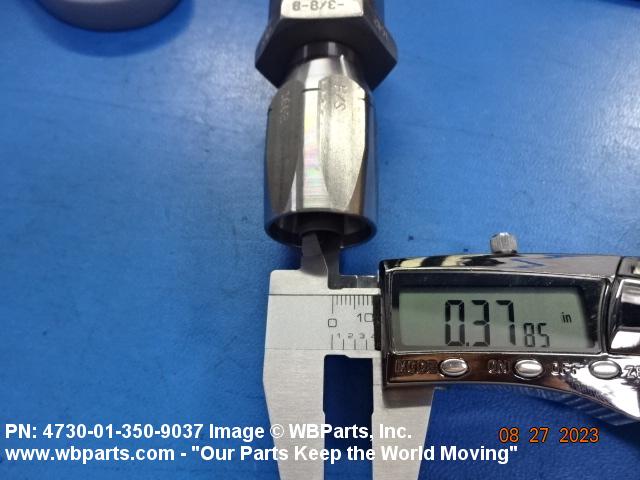

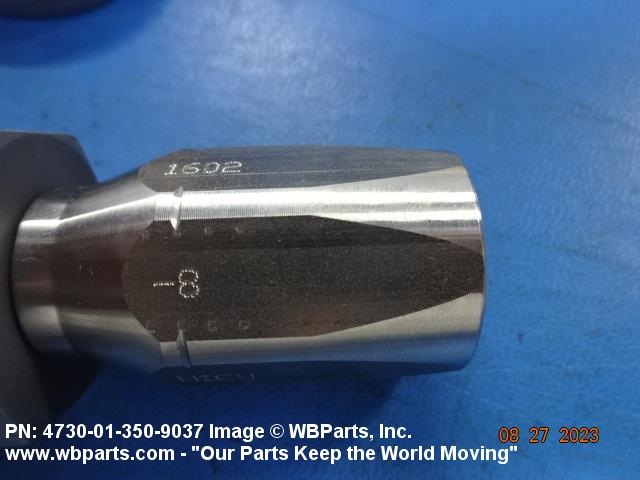

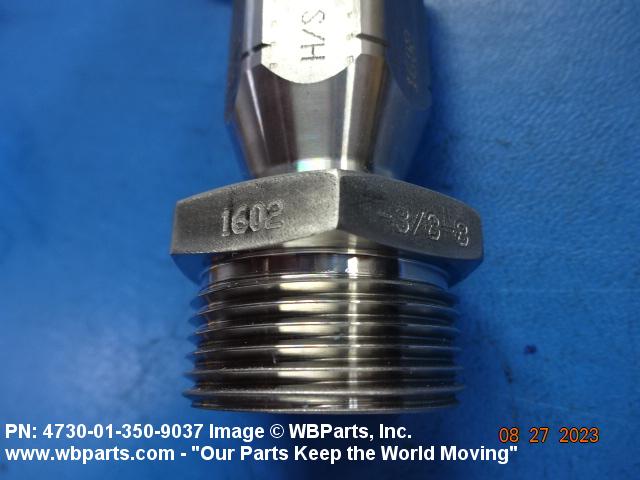

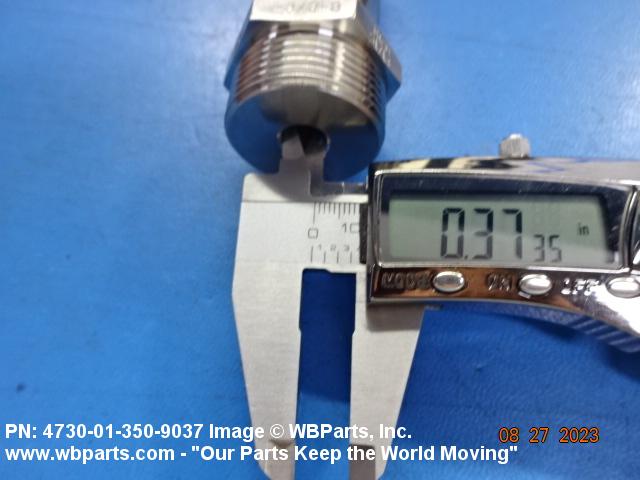

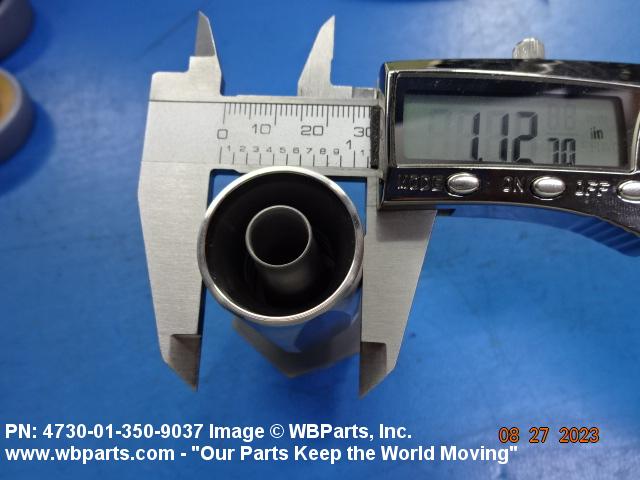

Drawings & Photos | NSN 4730-01-350-9037
Demand History | NSN 4730-01-350-9037
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-350-9037 | 2025-07-205 | 19 | DIBBS |
| 4730-01-350-9037 | 2023-08-235 | 2 | United States |
| 4730-01-350-9037 | 2023-07-201 | 49 | DIBBS |
| 4730-01-350-9037 | 2019-09-255 | 85 | DIBBS |
| 4730-01-350-9037 | 2017-09-257 | 55 | DIBBS |
| 4730-01-350-9037 | 2016-07-213 | 45 | DIBBS |
| 4730-01-350-9037 | 2015-03-64 | 40 | DIBBS |
| 4730-01-350-9037 | 2012-09-249 | 5 | DIBBS |
| 4730-01-350-9037 | 2012-09-249 | 27 | DIBBS |
| 4730-01-350-9037 | 2012-08-244 | 27 | DIBBS |
| 4730-01-350-9037 | 2012-07-200 | 5 | DIBBS |
| 4730-01-350-9037 | 2012-05-143 | 16 | DIBBS |
| 4730-01-350-9037 | 2011-08-220 | 5 | DIBBS |
| 4730-01-350-9037 | 2009-07-211 | 26 | DIBBS |
Cross Reference | NSN 4730-01-350-9037
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-190885-3/8-8 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| CMC-4-5603-3/8-08 | 53159 | CUSTOM HYDRAULIC & MACHINE, INC. DBA CUSTOM MACHINE |
| MIL-F-24787 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-24787/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-350-9037
Technical Data | NSN 4730-01-350-9037
| Characteristic | Specifications |
|---|---|
| CONNECTION TYPE | UNTHREADED EXTERNAL HOSE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B111C INSERT 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.500 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 2ND END |
| NOMINAL THREAD SIZE | 1.375 INCHES 2ND END |
| THREAD CLASS | 3A 2ND END |
| NOMINAL OVERALL LENGTH | 2.960 INCHES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-24787 |
Restrictions/Controls & Freight Information | NSN 4730-01-350-9037
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051630 | PIPE DUCT ETC SUB 7 |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-350-9037
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
