NSN 4730-01-358-2512 17P6W6050, 17P6W6050503, 17P6W6050-503
Product Details | FLUID PASSAGE BOLT
4730-01-358-2512 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 17P6W6050, 17P6W6050503, 17P6W6050-503, 4730-01-358-2512, 01-358-2512, 4730013582512, 013582512
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 MAY 1992 | 01-358-2512 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-01-358-2512
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-358-2512
Technical Data | NSN 4730-01-358-2512
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | DMS2263,CL3,GDB MFR REF SINGLE MATERIAL RESPONSE |
| BODY STYLE | 4 PLAIN |
| CONCENTRIC HOLE DEPTH | 4.352 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.187 INCHES NOMINAL |
| OVERALL LENGTH | 8.727 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.998 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 7.312 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.125 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 4.500 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 8.227 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.480 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 1.000 INCHES |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.915 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL BOSS |

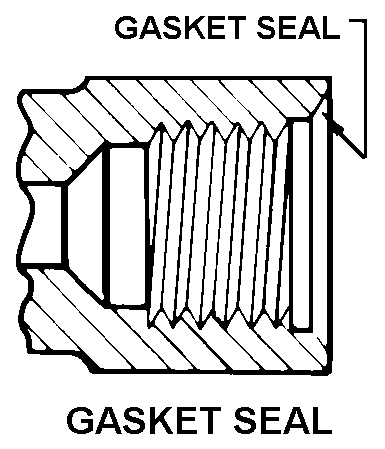

| SECOND END STYLE DESIGNATOR | C7 GASKET SEAL |
| SECOND END THREAD SERIES DESIGNATOR | UNJF |
| SECOND END NOMINAL THREAD SIZE | 0.250 INCHES |
| SECOND END THREAD CLASS | 3B |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD LENGTH | 0.157 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 1.434 INCHES NOMINAL |
| COTTER PIN HOLE DIAMETER | 0.141 INCHES NOMINAL |
| DISTANCE FROM BOLT END TO HOLE CENTER | 0.182 INCHES NOMINAL |
| SPECIAL FEATURES | WIDTH ACROSS ONE FLAT 1.248 IN. |
Restrictions/Controls & Freight Information | NSN 4730-01-358-2512
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-358-2512
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
