NSN 4730-01-373-6420 DMD10021AV08, 7D0182, 7D0182T08
Product Details | TUBE ELBOW
4730-01-373-6420 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: DMD10021AV08, 7D0182, 7D0182T08, 4730-01-373-6420, 01-373-6420, 4730013736420, 013736420
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01-373-6420 | 03771 ( ELBOW, TUBE ) |

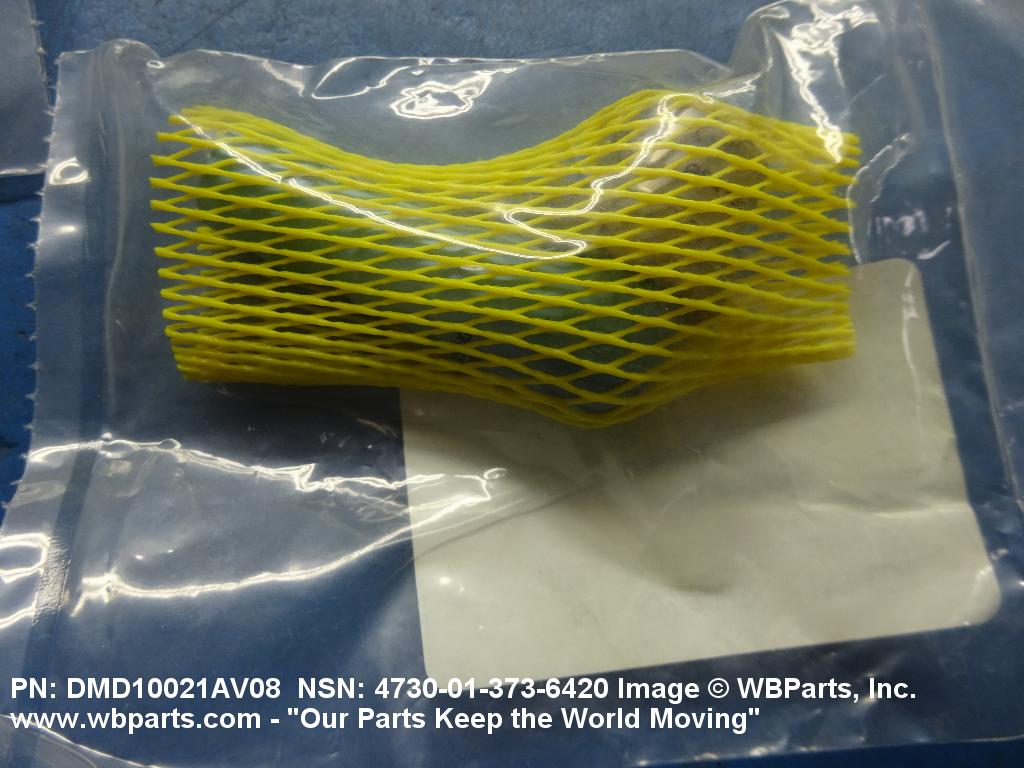

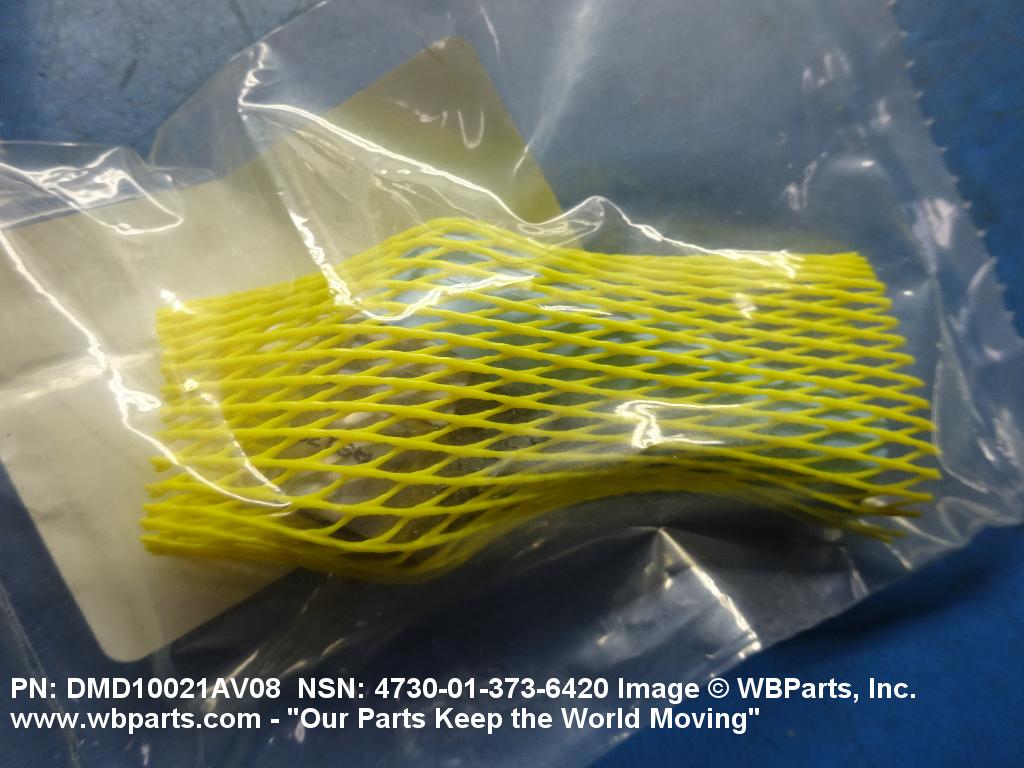

Drawings & Photos | NSN 4730-01-373-6420
Demand History | NSN 4730-01-373-6420
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-373-6420 | 2022-04-101 | 2 | United States |
| 4730-01-373-6420 | 2014-11-321 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-373-6420
Technical Data | NSN 4730-01-373-6420
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM UNS R50700 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4921 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 2ND END |
| CONNECTION STYLE | B12 SWIVEL NUT, FLARELESS 1ST END B48 SWAGED W/GROOVES 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD CLASS | 3B 1ST END |
| LEG LENGTH | 1.156 INCHES NOMINAL 1ST END 2.150 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
