NSN 4730-01-375-1460 FJ523932404, FJ5239-3240-4, 4FW1019240
Product Details | PIPE FLANGE
4730-01-375-1460 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).

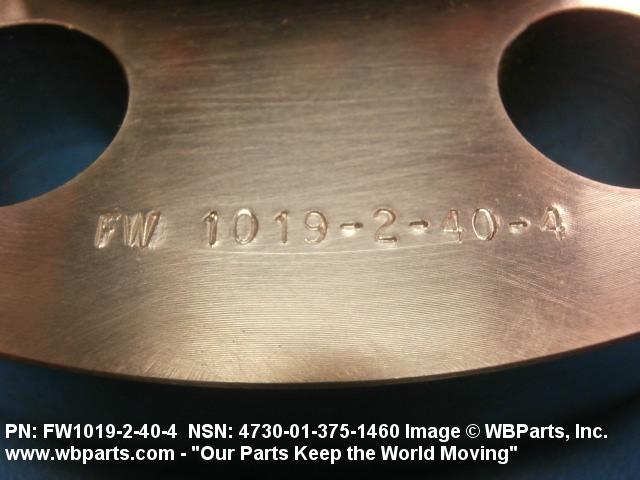

Part Alternates: FJ523932404, FJ5239-3240-4, 4FW1019240, 4-FW1019-2-40, 4730-01-375-1460, 01-375-1460, 4730013751460, 013751460
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 MAY 1993 | 01-375-1460 | 03798 ( FLANGE, PIPE ) |

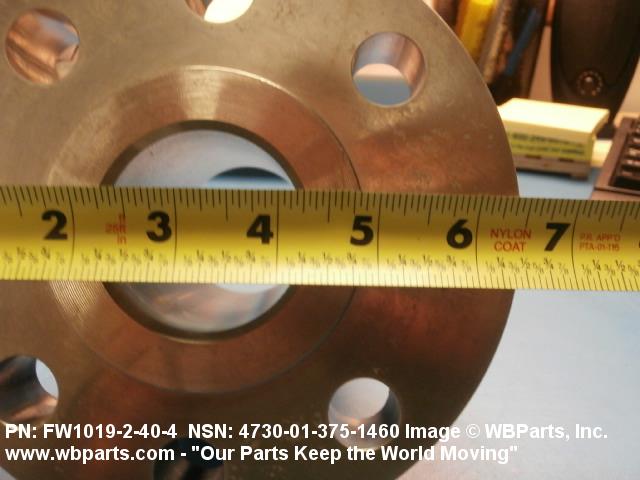

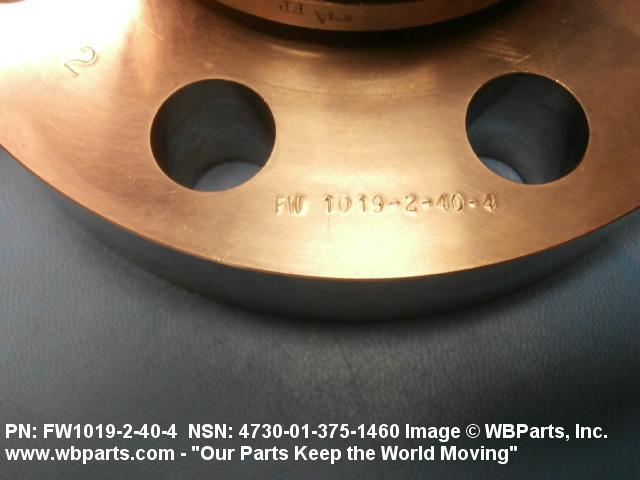

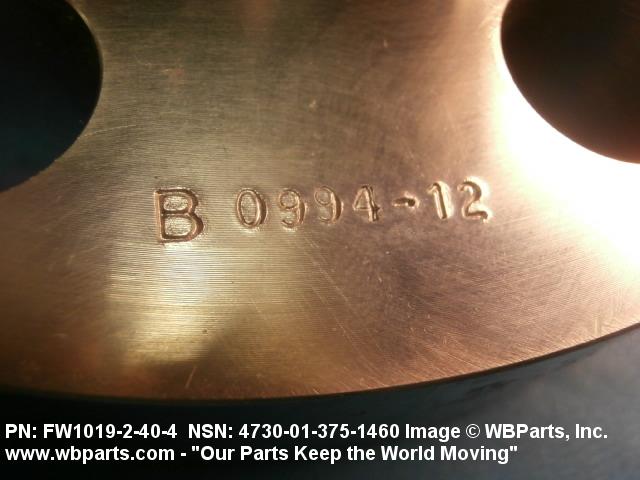

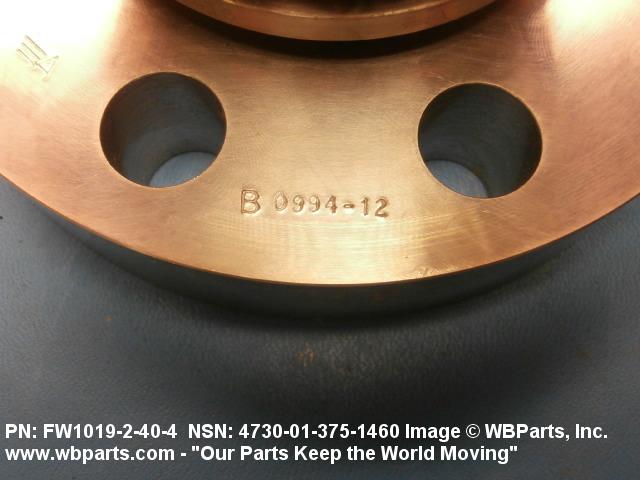

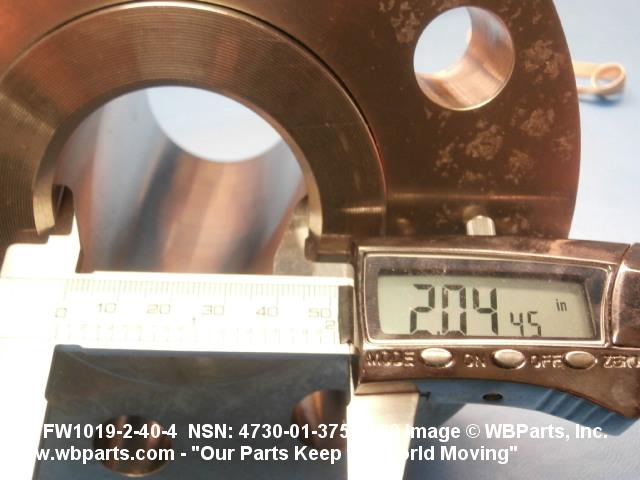

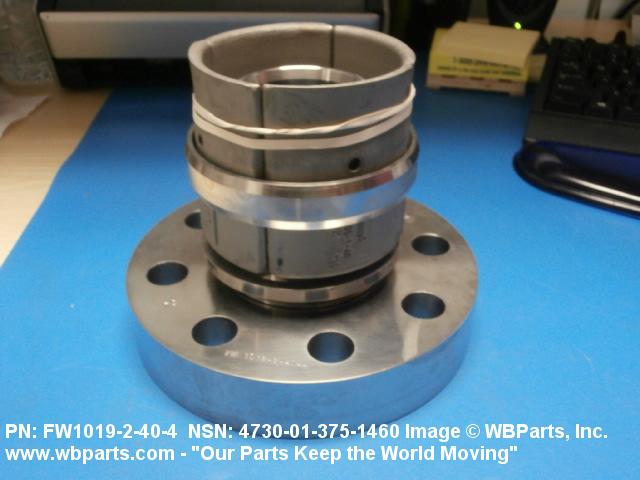

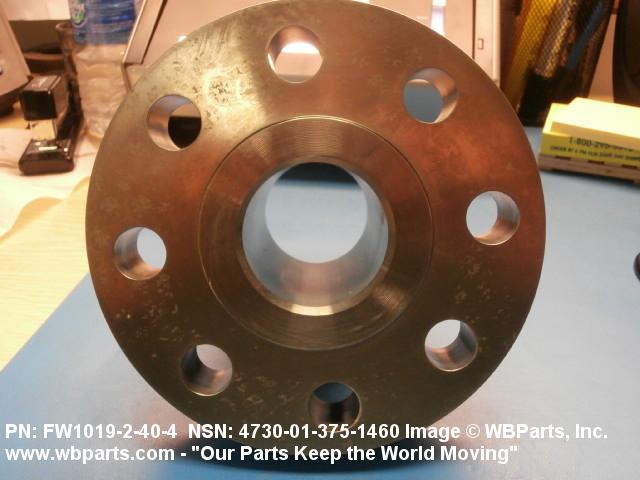

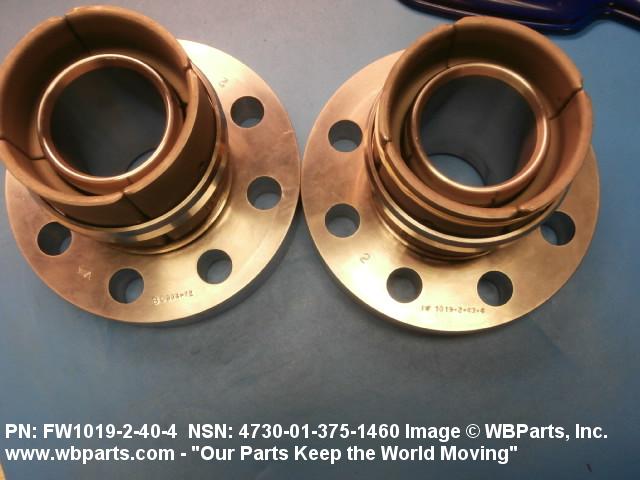

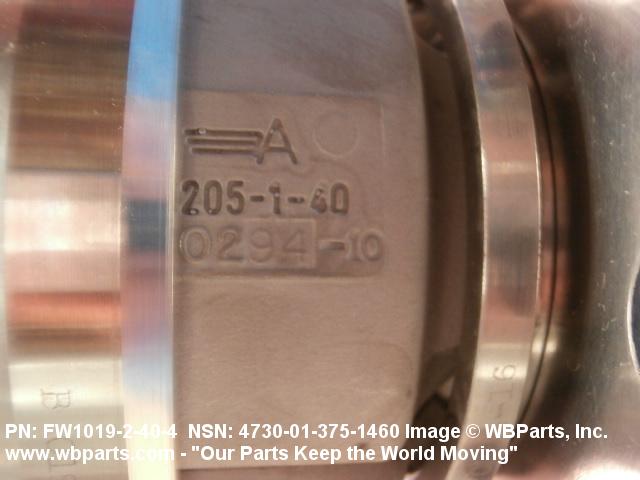

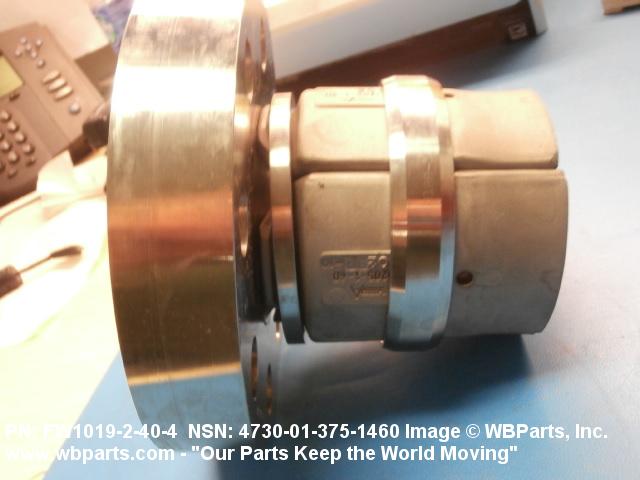

Drawings & Photos | NSN 4730-01-375-1460
Demand History | NSN 4730-01-375-1460
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-375-1460 | 2015-12-352 | 4 | United States |
| 4730-01-375-1460 | 2015-11-323 | 2 | United States |
| 4730-01-375-1460 | 2015-07-195 | 2 | DIBBS |
| 4730-01-375-1460 | 2014-07-190 | 5 | DIBBS |
| 4730-01-375-1460 | 2013-08-218 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-375-1460
Technical Data | NSN 4730-01-375-1460
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-286 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |

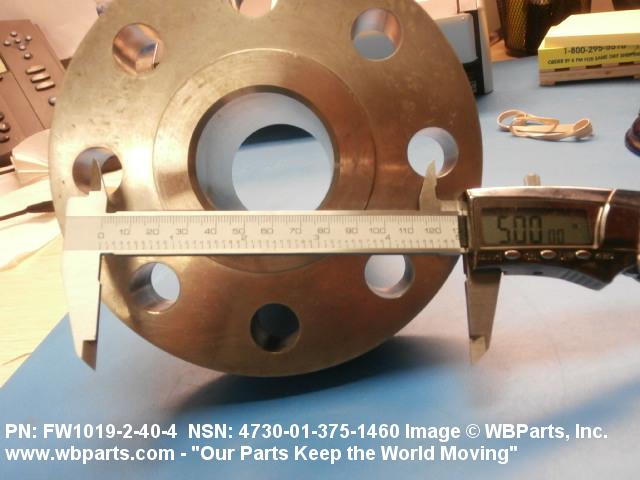

| BOLT CIRCLE DIAMETER | 5.000 INCHES NOMINAL |
| FLANGE DIAMETER | 6.500 INCHES NOMINAL |

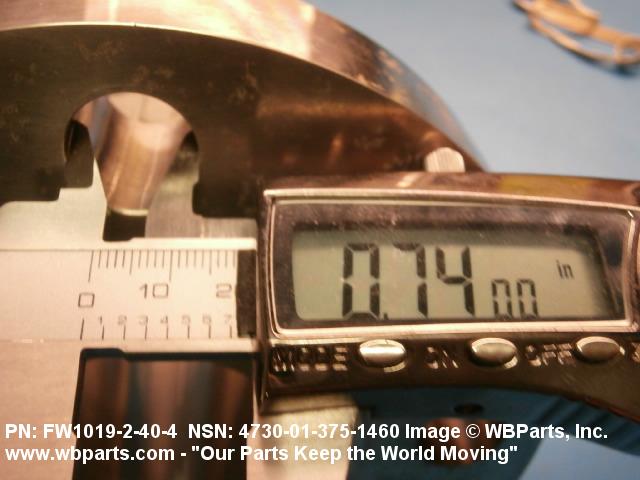

| BOLT HOLE DIAMETER | 0.750 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 8 |
| FLANGE SECTION STYLE | 4 PLAIN FACE, RAISED NECK |

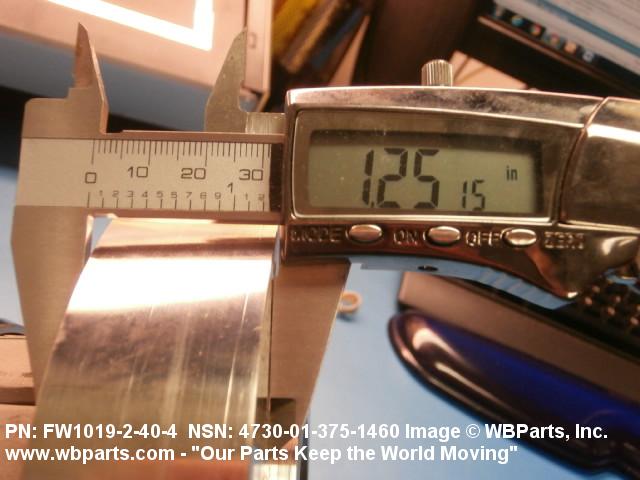

| THICKNESS | 1.250 INCHES NOMINAL |
| NECK HEIGHT | 0.015 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 2.500 INCHES |
| FACE SEATING SURFACE CONDITION | MACHINED |
Restrictions/Controls & Freight Information | NSN 4730-01-375-1460
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051450 | PIPE FITTINGS CUPRO NICKEL/COPPER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-375-1460
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
