NSN 4730-01-379-7203 AP310T06, ST7M393T6, R44150T06

Product Details | TUBE COUPLING

4730-01-379-7203 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.

Part Alternates: AP310T06, ST7M393T6, R44150T06, R44150T-06, 4730-01-379-7203, 01-379-7203, 4730013797203, 013797203

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	07 SEP 1993	01-379-7203	06078 ( COUPLING, TUBE )

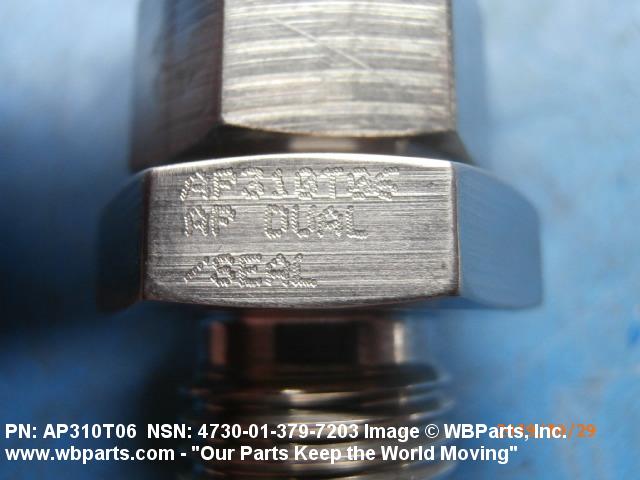

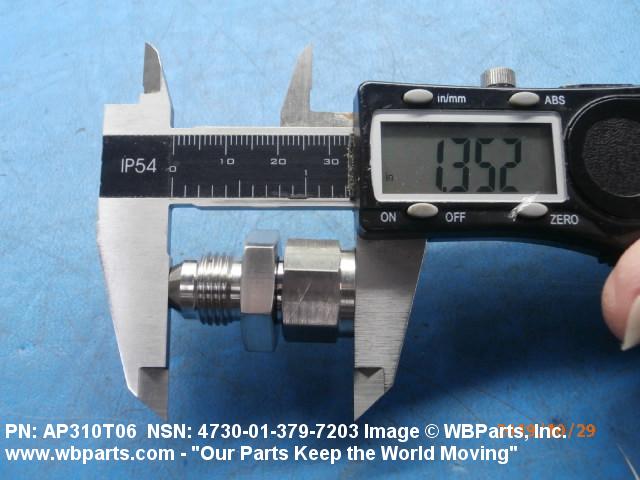

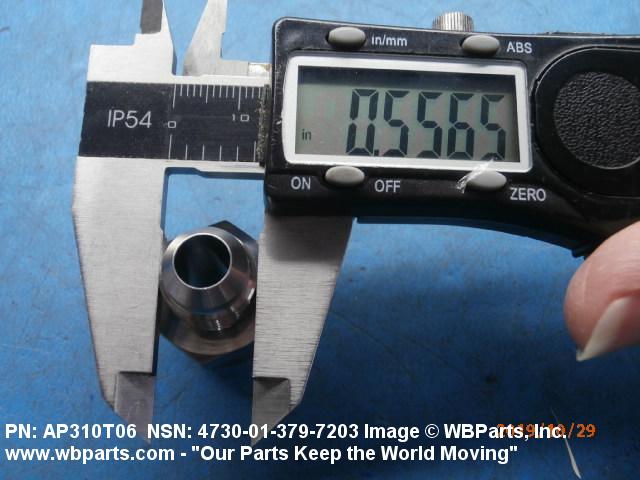

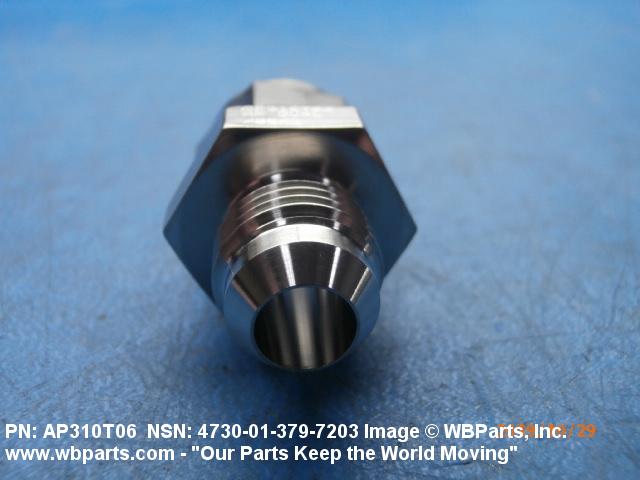

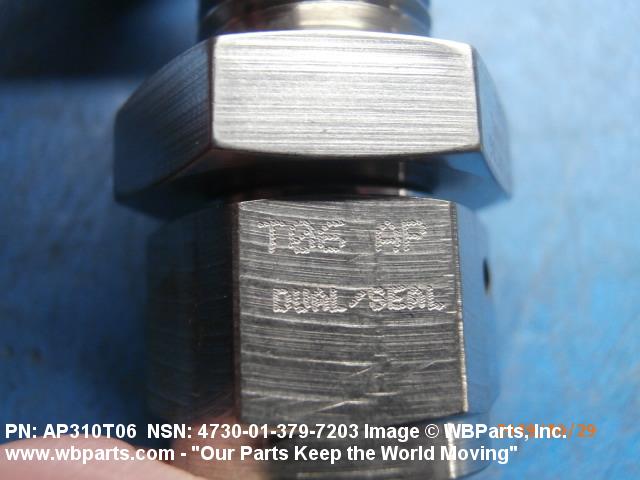

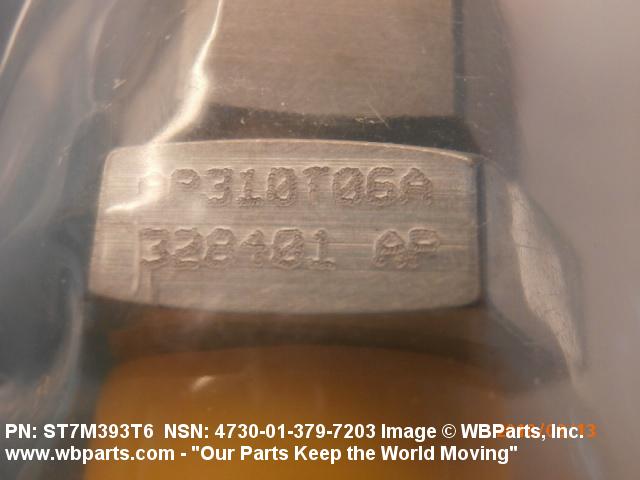

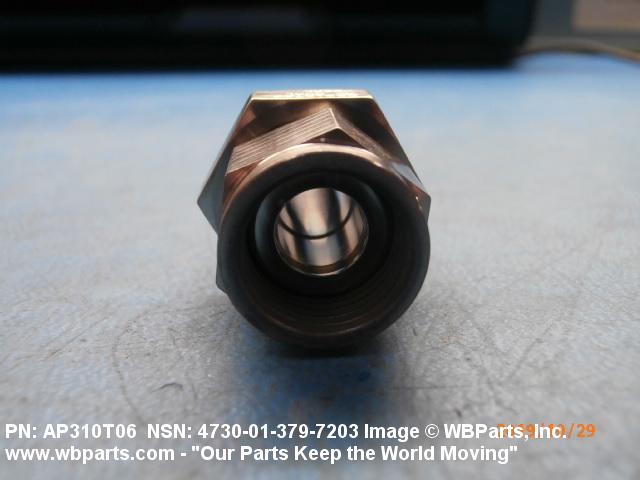

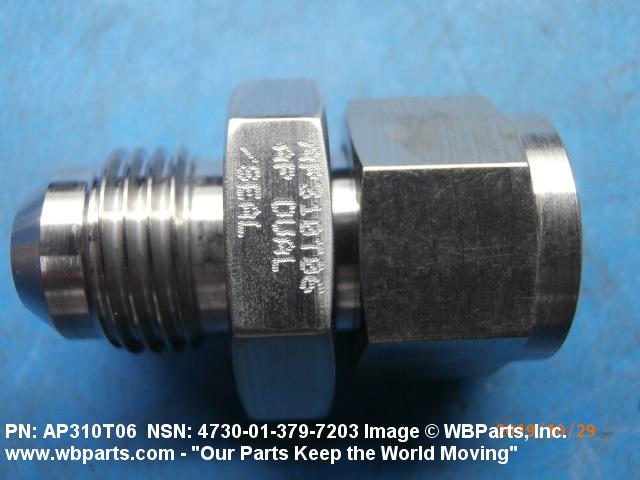

Drawings & Photos | NSN 4730-01-379-7203

Part Number	Request Date	QTY	Origin
R44150T06	2026-02-41	5	United States
4730-01-379-7203	2025-11-321	10	US
4730-01-379-7203	2025-06-174	4	US
AP310T06	2021-12-339	4	DIBBS
R44150T-06	2021-12-339	4	DIBBS
ST7M393T6	2021-12-339	4	DIBBS
AP310T06	2021-08-217	1	US
AP310T06	2019-09-249	1	us
AP310T06	2019-07-197	1	us
4730-01-379-7203	2019-01-10	1	us
4730-01-379-7203	2018-09-253	11	DIBBS
4730-01-379-7203	2018-08-242	11	DIBBS
4730-01-379-7203	2018-08-218	11	us
4730-01-379-7203	2018-08-214	14	us
4730-01-379-7203	2018-07-212	4	us
4730-01-379-7203	2018-07-212	11	us
4730-01-379-7203	2018-07-211	5	US
4730-01-379-7203	2018-07-207	3	us
4730-01-379-7203	2016-02-52	8	DIBBS
4730-01-379-7203	2015-07-211	9	DIBBS
R44150T06	2014-05-132	8	United States
4730-01-379-7203	2012-08-244	4	DIBBS
4730-01-379-7203	2012-06-171	1	United States
4730-01-379-7203	2012-01-04	11	DIBBS
R44150T06	2011-08-229	25	United States
R44150T06	2010-12-342	33	IN
R44150T06	2007-09-254	2	US
R44150T06	2007-07-192	3	US

Cross Reference | NSN 4730-01-379-7203

Part Number	Cage Code	Manufacturer
AP310T06	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
R44150T-06	50599	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
ST7M393T6	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-379-7203

Compare

Related Products | NSN 4730-01-379-7203

4730-01-379-7204, 4730-01-379-7206, 4730-01-379-7208, 4730-01-379-7210, 4730-01-379-7212

Technical Data | NSN 4730-01-379-7203

Characteristic	Specifications
MATERIAL	TITANIUM OVERALL
CONNECTION TYPE	THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END
CONNECTION STYLE	B14B PLAIN 1ST END B64 FLARED 2ND END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.563 INCHES ALL ENDS 0.623 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNJS 1ST END UNJF 2ND END
THREAD QUANTITY PER INCH	20 1ST END
NOMINAL OVERALL LENGTH	1.384 INCHES

Restrictions/Controls & Freight Information | NSN 4730-01-379-7203

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051420	CONDUITS,O/T EARTHEN:PIPE FITTINGS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	736	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-379-7203

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	TG	TG:AF SICA RESIDUAL MMAC-WR-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
