NSN 4730-01-380-2655 MS208194K, MS20819-4K, AS4841
Product Details | TUBE FITTING FLARED SLEEVE
4730-01-380-2655 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208194K, MS20819-4K, AS4841, AS5176, AS5176K04, 4730-01-380-2655, 01-380-2655, 4730013802655, 013802655
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 SEP 1993 | 01-380-2655 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

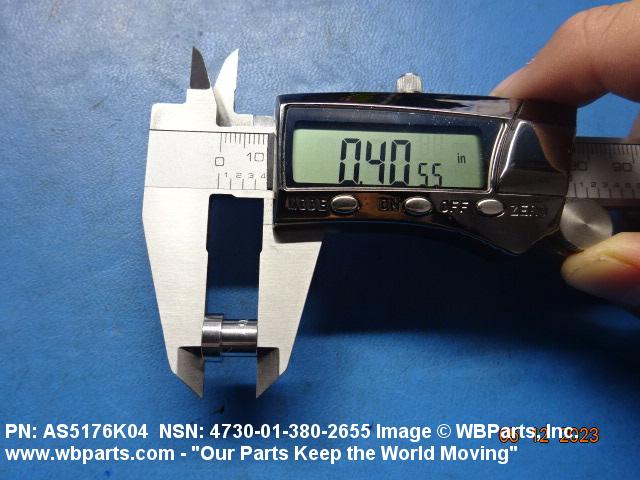

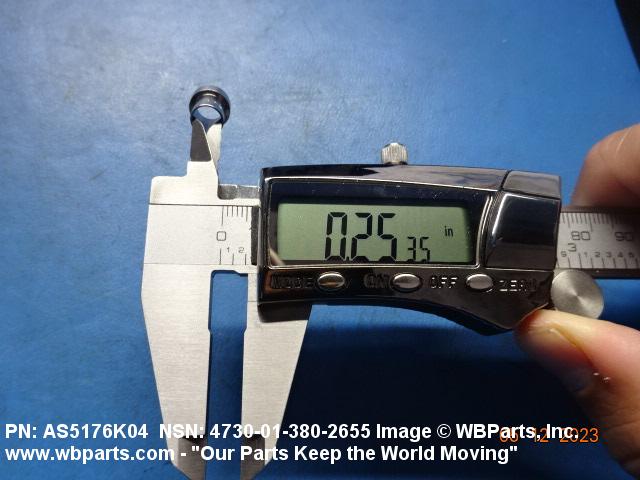

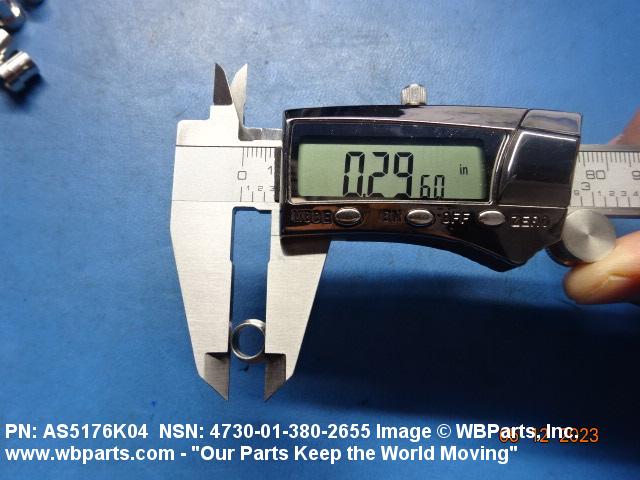

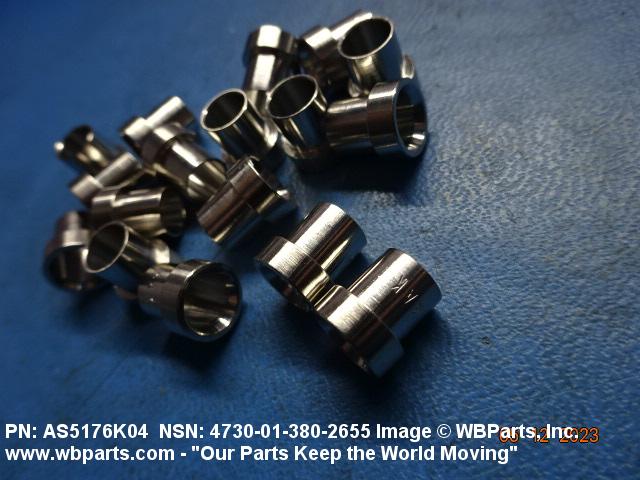

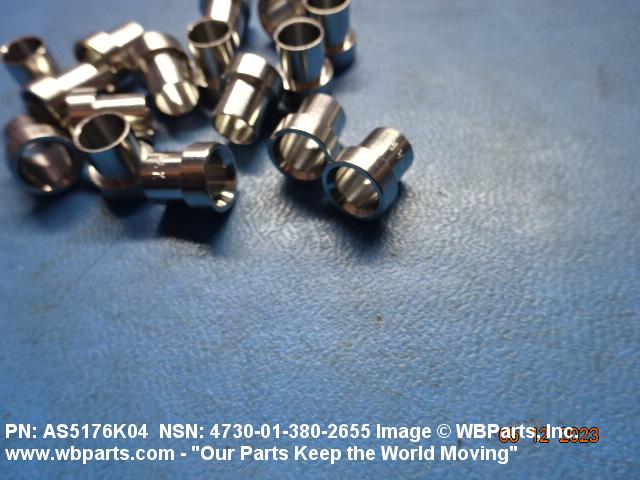

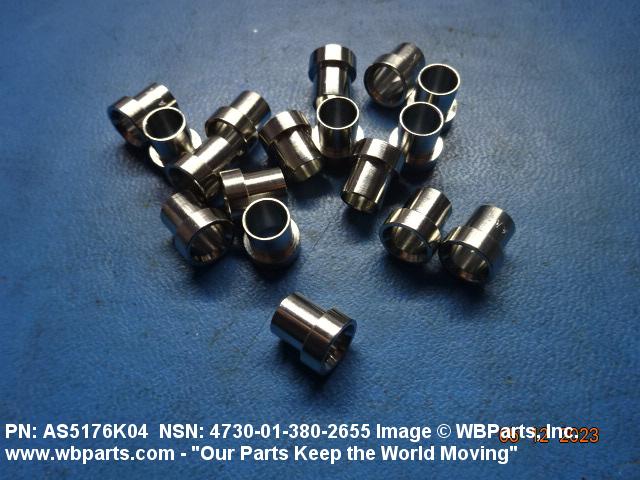

Drawings & Photos | NSN 4730-01-380-2655
Demand History | NSN 4730-01-380-2655
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-380-2655 | 2025-09-267 | 1000 | United States |
| AS5176K04 | 2025-08-239 | 8 | United States |
| AS4841 | 2025-04-106 | 1 | France |
| 4730-01-380-2655 | 2024-05-150 | 24 | US |
| AS5176K04 | 2023-10-284 | 1 | United States |
| AS5176K04 | 2023-03-83 | 1 | United States |
| AS5176K04 | 2022-12-335 | 400 | US |
| AS5176K04 | 2022-01-27 | 30 | US |
| 4730-01-380-2655 | 2021-05-151 | 50 | DE |
| AS5176K04 | 2020-01-30 | 5 | US |
| AS5176K04 | 2019-11-308 | 30 | US |
| 4730-01-380-2655 | 2019-07-192 | 2235 | DIBBS |
| 4730-01-380-2655 | 2019-06-177 | 700 | United States |
| AS5176K04 | 2019-02-32 | 1 | US |
| 4730-01-380-2655 | 2016-10-292 | 1419 | DIBBS |
| AS5176K04 | 2016-08-243 | 22 | US |
| 4730-01-380-2655 | 2015-03-77 | 1583 | DIBBS |
| 4730-01-380-2655 | 2014-06-178 | 1177 | DIBBS |
| AS5176K04 | 2013-07-200 | 10 | US |
| 4730-01-380-2655 | 2013-06-155 | 20 | US |
| 4730-01-380-2655 | 2013-01-31 | 990 | DIBBS |
| 4730-01-380-2655 | 2012-03-65 | 238 | DIBBS |
| AS5176K04 | 2011-09-263 | 30 | us |
| MS208194K | 2011-09-249 | 1 | US |
| AS5176K04 | 2011-07-192 | 252 | US |
| MS208194K | 2011-05-145 | 82 | US |
| AS4841 | 2011-03-69 | 8 | |
| 4730-01-380-2655 | 2011-01-11 | 183 | DIBBS |
| 4730-01-380-2655 | 2010-10-278 | 133 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-380-2655
Related Products | NSN 4730-01-380-2655
Technical Data | NSN 4730-01-380-2655
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-763, CLASS 316 |
| SURFACE TREATMENT | PASSIVATED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | M4 SLEEVE |
| OVERALL LENGTH | 0.406 INCHES NOMINAL |
| FLANGE WIDTH | 0.141 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.383 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |
| SLEEVE OUTSIDE DIAMETER | 0.297 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | HELICOPTER, SEA-KING, MK41 |
Restrictions/Controls & Freight Information | NSN 4730-01-380-2655
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | DX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-380-2655
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
