NSN 4730-01-384-2107 7M587P1022, 7M587P10-22, 01-384-2107
Product Details | TUBE COUPLING
4730-01-384-2107 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: 7M587P1022, 7M587P10-22, 4730-01-384-2107, 01-384-2107, 4730013842107, 013842107
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 DEC 1993 | 01-384-2107 | 06078 ( COUPLING, TUBE ) |

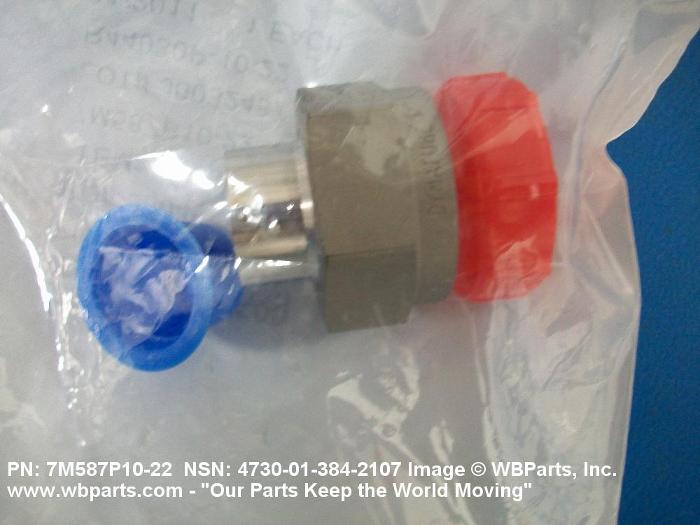

Drawings & Photos | NSN 4730-01-384-2107
Demand History | NSN 4730-01-384-2107
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7M587P1022 | 2011-07-195 | 5 | United States |
| 7M587P1022 | 2010-08-228 | 19 | UK |
| 4730-01-384-2107 | 2010-08-224 | 10 | United Kingdom |
Cross Reference | NSN 4730-01-384-2107
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7M587P10-22 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-384-2107
Technical Data | NSN 4730-01-384-2107
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | A5 RIGID, SHORT CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END BUTT WELD TUBE 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJS 1ST END |
| NOMINAL THREAD SIZE | 0.8435 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 16 1ST END |
| THREAD CLASS | 3B 1ST END |
| TUBING WALL NOMINAL THICKNESS FOR WHICH DESIGNED | 0.531 INCHES 2ND END |
| NOMINAL OVERALL LENGTH | 0.906 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-384-2107
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
