NSN 4730-01-390-8062 AP10100, AP10100D1208, D10045D1208
Product Details | TUBE REDUCER
4730-01-390-8062 A straight tube fitting having a different size connection on each end. It is designed to join two tubes of different sizes. Excludes BUSHING (as modified).
Part Alternates: AP10100, AP10100D1208, D10045D1208, 7D0021D1208, 4730-01-390-8062, 01-390-8062, 4730013908062, 013908062
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 MAY 1994 | 01-390-8062 | 08506 ( REDUCER, TUBE ) |

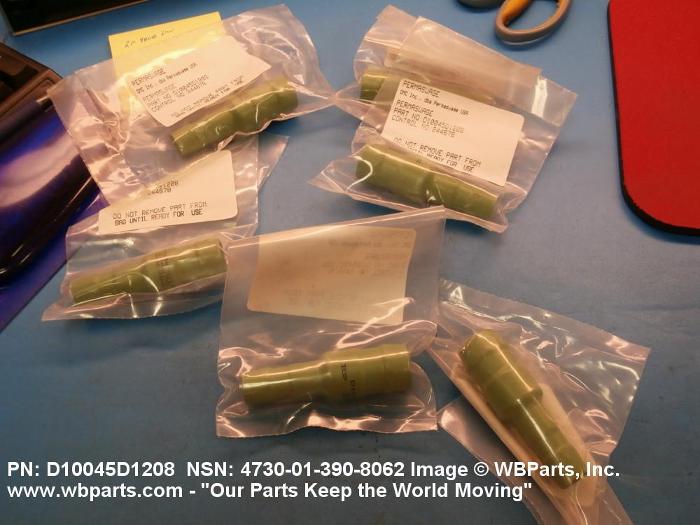

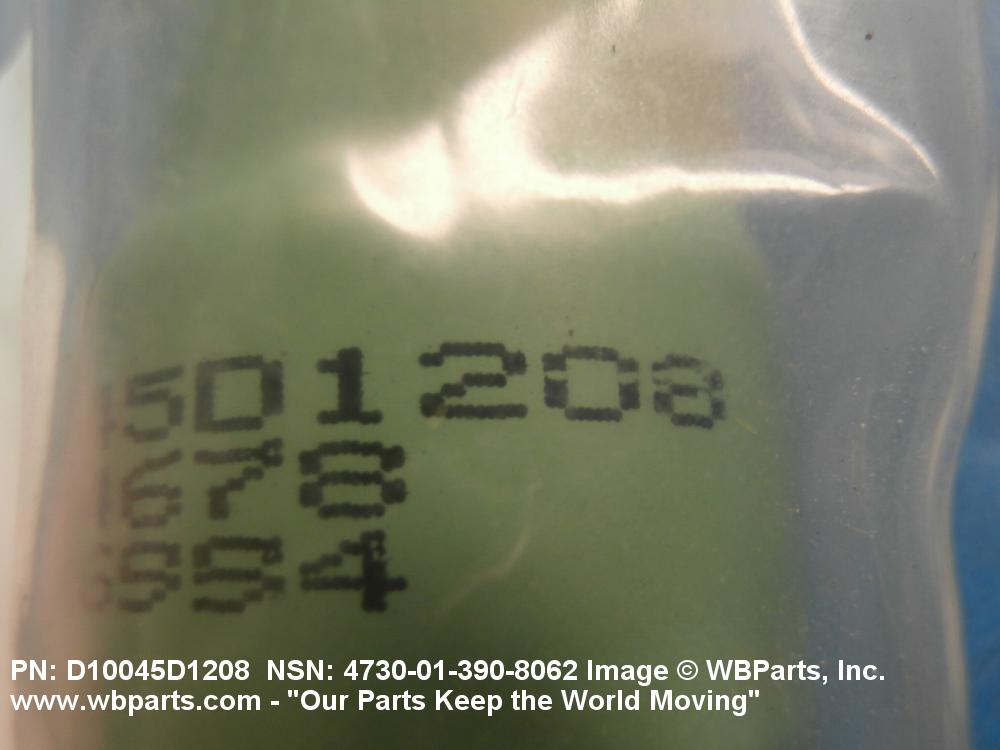

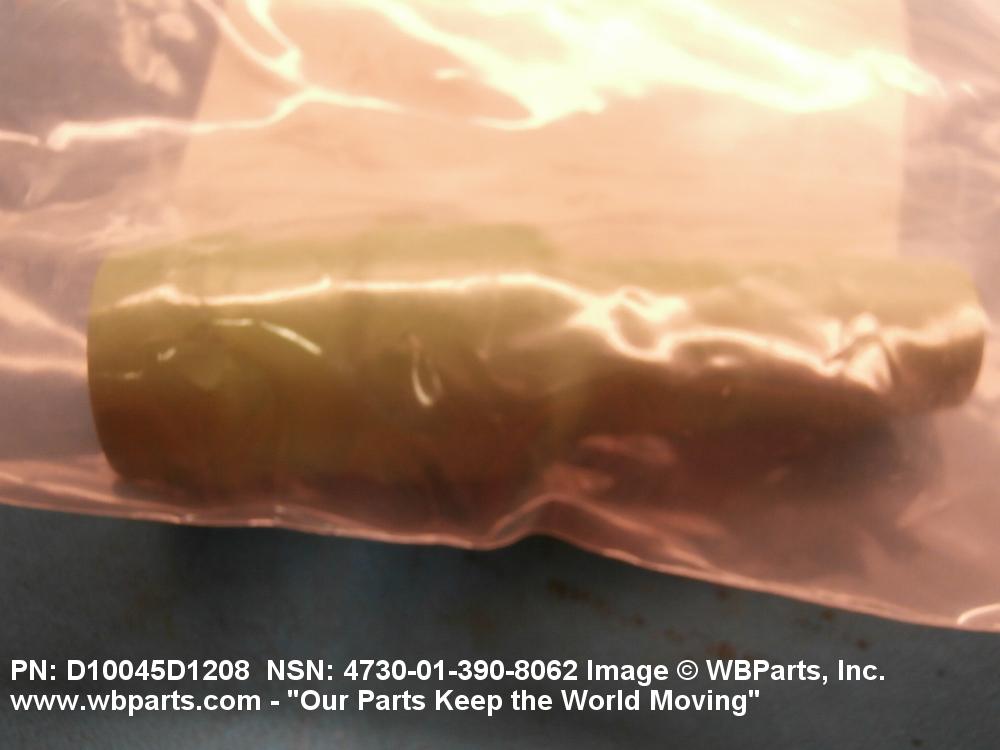

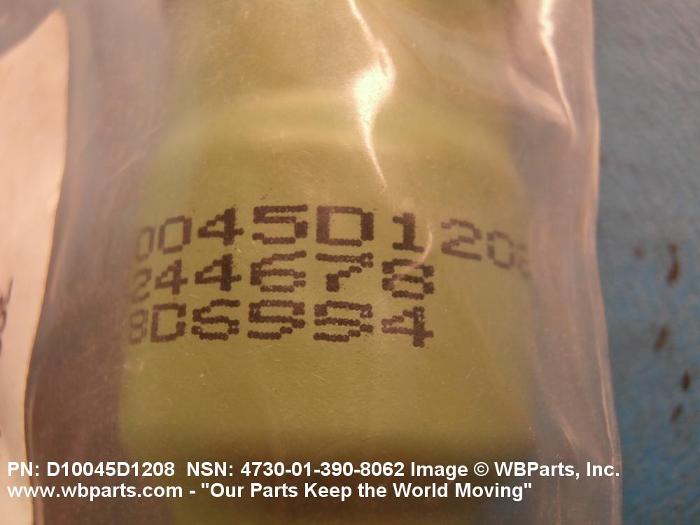

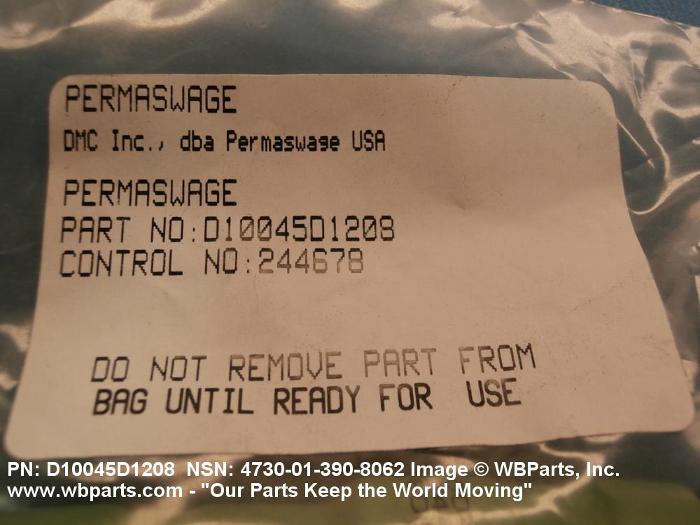

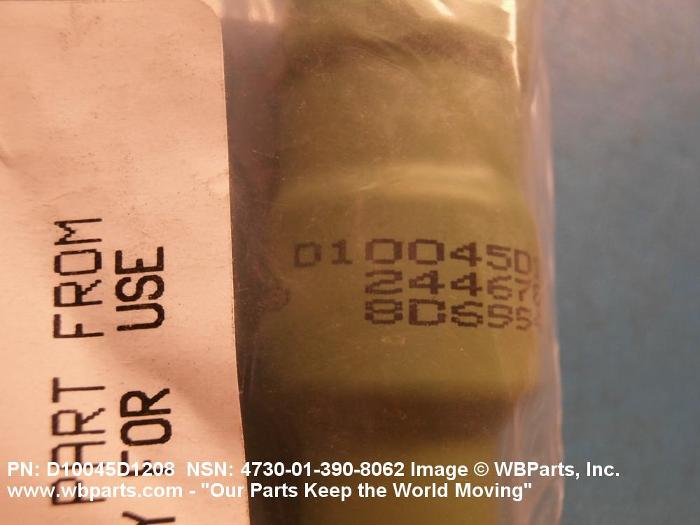

Drawings & Photos | NSN 4730-01-390-8062
Demand History | NSN 4730-01-390-8062
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| D10045D1208 | 2013-03-65 | 24 | Israel |
| 4730-01-390-8062 | 2013-03-65 | 18 | Israel |
| 4730-01-390-8062 | 2013-03-65 | 26 | Israel |
Cross Reference | NSN 4730-01-390-8062
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-390-8062
Technical Data | NSN 4730-01-390-8062
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B48 SWAGED W/GROOVES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES 1ST END 0.500 INCHES 2ND END |
| NOMINAL OVERALL LENGTH | 3.045 INCHES |
| REDUCER TYPE | CONCENTRIC |
| SPECIAL FEATURES | ALL GROOVES TO BE FILLED WITH SILICONE PER AP-004-001 |
Restrictions/Controls & Freight Information | NSN 4730-01-390-8062
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-390-8062
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
