NSN 4730-01-420-3234 7M1305J1, 7M130-5J-1, 01-420-3234
Product Details | FLUID PASSAGE BOLT
4730-01-420-3234 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 7M1305J1, 7M130-5J-1, 4730-01-420-3234, 01-420-3234, 4730014203234, 014203234
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 OCT 1995 | 01-420-3234 | 18683 ( BOLT, FLUID PASSAGE ) |

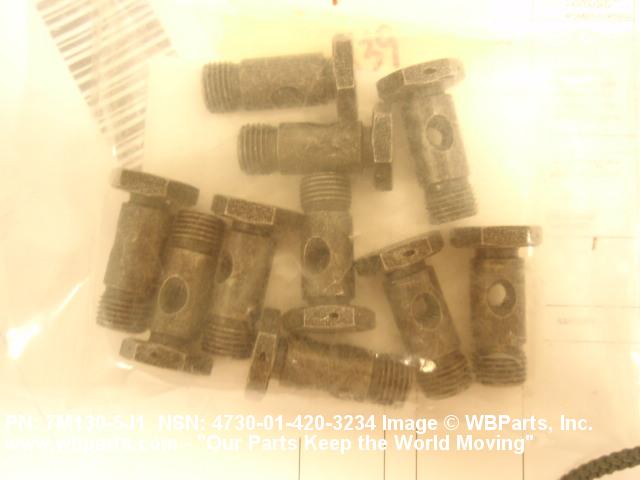

Drawings & Photos | NSN 4730-01-420-3234
Demand History | NSN 4730-01-420-3234
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-420-3234 | 2014-12-364 | 10 | us |
| 7M1305J1 | 2011-01-18 | 6 | United States |
| 7M1305J1 | 2009-11-316 | 10 | United States |
Cross Reference | NSN 4730-01-420-3234
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7M130-5J-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-420-3234
Technical Data | NSN 4730-01-420-3234
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | AV-8 HARRIER AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4730-01-420-3234
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
