NSN 4730-01-424-7395 1602AS229, 1602AS2291, 1602AS229-1
Product Details | TUBE COUPLING NUT
4730-01-424-7395 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: 1602AS229, 1602AS2291, 1602AS229-1, 4730-01-424-7395, 01-424-7395, 4730014247395, 014247395
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 03 FEB 1996 | 01-424-7395 | 03859 ( NUT, TUBE COUPLING ) |

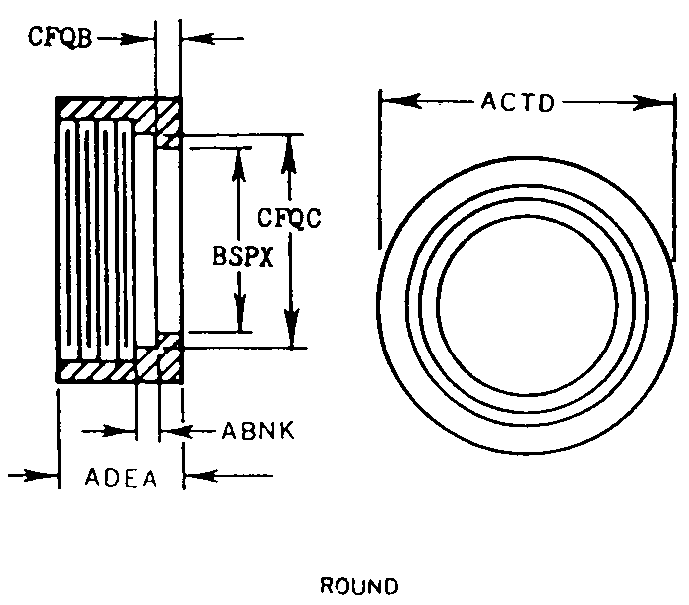

Drawings & Photos | NSN 4730-01-424-7395
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-424-7395
Technical Data | NSN 4730-01-424-7395
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | ACME |
| NOMINAL THREAD SIZE | 1.875 INCHES |
| THREAD QUANTITY PER INCH | 4 |
| THREAD CLASS | A2A |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | COPPER OVERALL |
| NUT STYLE | A358 ROUND |
| SHOULDER WIDTH | 0.125 INCHES NOMINAL |
| NUT DIAMETER | 2.187 INCHES NOMINAL |
| NUT HEIGHT | 1.000 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 1.320 INCHES NOMINAL |
| SHOULDER STEP WIDTH | 0.288 INCHES NOMINAL |
| SHOULDER SEAT DIAMETER | 1.875 INCHES NOMINAL |
| FABRICATION METHOD | CAST |
| NOMINAL TUBE OUTSIDE DIAMETER | 1.000 INCHES |
| SPECIAL FEATURES | CLEANED FOR OXYGEN SERVICE IN ACCORDANCE WITH MIL-I-52211,METHOD A,CLASS B. |
Restrictions/Controls & Freight Information | NSN 4730-01-424-7395
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-424-7395
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
