NSN 4730-01-428-6854 ST264SHBX, 103336, 1-03336
Product Details | SEDIMENT STRAINER ELEMENT
4730-01-428-6854 A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.
Part Alternates: ST264SHBX, 103336, 1-03336, 1-03336 ITEM 2, 103336ITEM2, 4730-01-428-6854, 01-428-6854, 4730014286854, 014286854
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 MAR 1996 | 01-428-6854 | 18347 ( STRAINER ELEMENT, SEDIMENT ) |

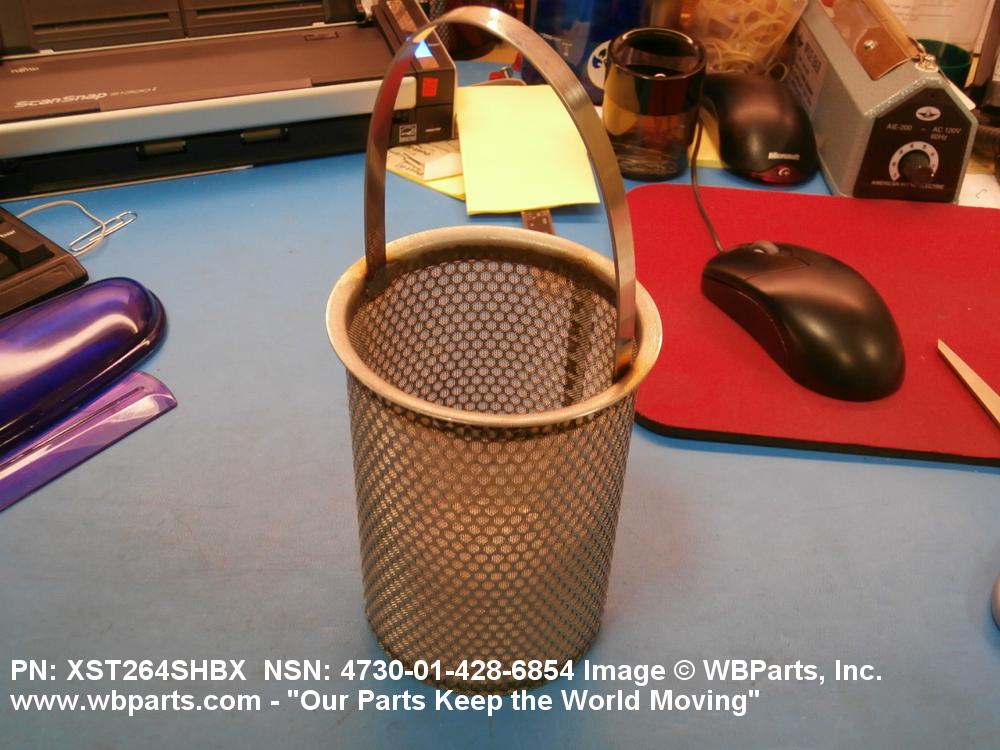

Drawings & Photos | NSN 4730-01-428-6854
Demand History | NSN 4730-01-428-6854
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-428-6854 | 2022-03-81 | 2 | US |
| 4730-01-428-6854 | 2020-09-253 | 2 | US |
| 4730-01-428-6854 | 2018-10-298 | 3 | FR |
| 4730-01-428-6854 | 2015-04-114 | 1 | US |
| 4730-01-428-6854 | 2013-08-225 | 4 | United States |
| 4730-01-428-6854 | 2013-01-21 | 4 | United States |
| 4730-01-428-6854 | 2012-12-339 | 5 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-428-6854
Technical Data | NSN 4730-01-428-6854
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 |
| FILTERING MEDIA DESIGN | PERFORATED OR MESH |
| MESH SIZE | 40.0 |
| WIRE DIAMETER | 0.010 INCHES NOMINAL |
| PERFORATION DIAMETER | 0.156 INCHES NOMINAL |
| PERFORATION QUANTITY | 33.0 PER SQUARE INCH |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| END CONNECTION TYPE | FLANGE W/BAIL 1ST END PLAIN 2ND END |
| III END ITEM IDENTIFICATION | HAYWARD INDUSTRIAL PRODUCTS INC, SIMPLEX STRAINER MODEL NO. 72; STRATEGIC SEALIFT CONVERSION SHIPS CLASS |
Restrictions/Controls & Freight Information | NSN 4730-01-428-6854
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-428-6854
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
