Product Details | FLUID PASSAGE BOLT
4730-01-433-2638 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 6990424, 4730-01-433-2638, 01-433-2638, 4730014332638, 014332638
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 JUN 1996 | 01-433-2638 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-01-433-2638
Demand History | NSN 4730-01-433-2638
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-433-2638 | 2024-10-294 | 1 | DIBBS |
| 4730-01-433-2638 | 2021-01-24 | 1 | DIBBS |
| 4730-01-433-2638 | 2019-10-302 | 2 | DIBBS |
Cross Reference | NSN 4730-01-433-2638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6990424 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-433-2638
Technical Data | NSN 4730-01-433-2638
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| BODY STYLE | 33 PLAIN |
| CONCENTRIC HOLE DIAMETER | 0.500 INCHES NOMINAL |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.744 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.204 INCHES NOMINAL |
| SECOND RADIAL FLUID HOLE DIAMETER | 0.125 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.943 INCHES NOMINAL |
| DISTANCE FROM SECOND RADIAL HOLE CENTER TO END OF BOLT | 0.234 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 0.650 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 1.438 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C3 FLARED |
| FIRST END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 6.000 INCHES |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.308 INCHES NOMINAL |

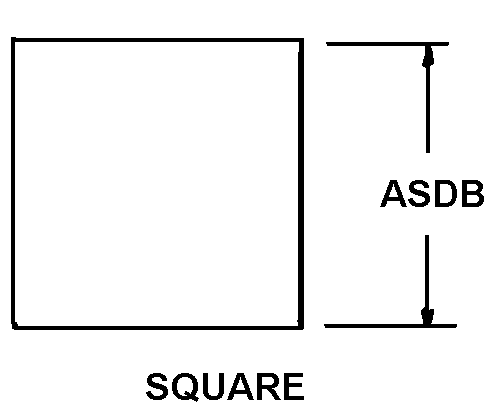

| WRENCHING FEATURE STYLE | 2 SQUARE |
| WIDTH ACROSS FLATS | 1.438 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | TORPEDO,ADCAP 48 |
