NSN 4730-01-438-5576 AN80610D, AN806-10D, 01-438-5576
Product Details | THREADED TUBE FITTING PLUG
4730-01-438-5576 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: AN80610D, AN806-10D, 4730-01-438-5576, 01-438-5576, 4730014385576, 014385576
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 NOV 1996 | 01-438-5576 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

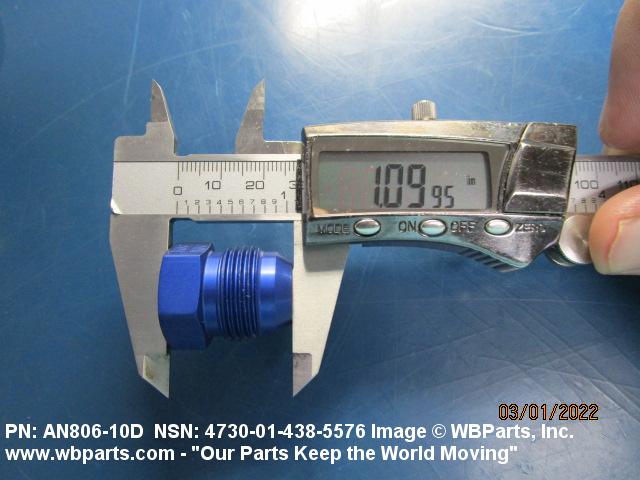

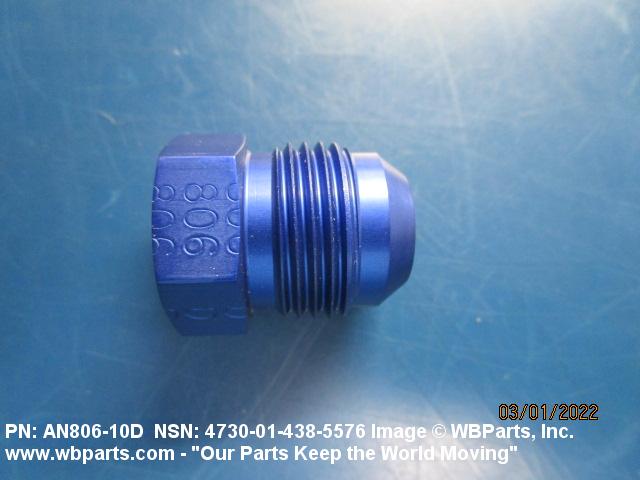

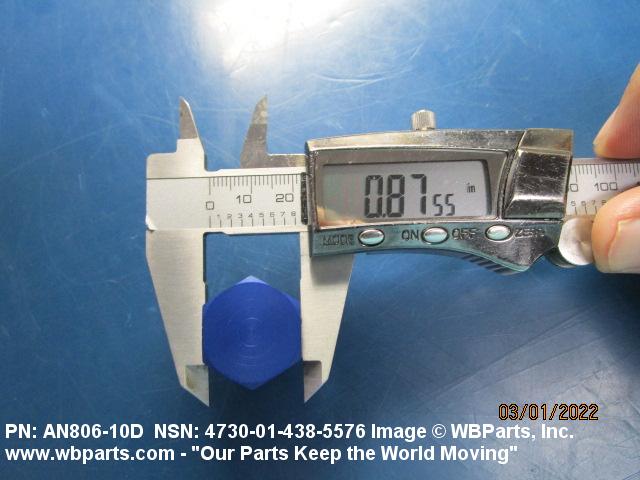

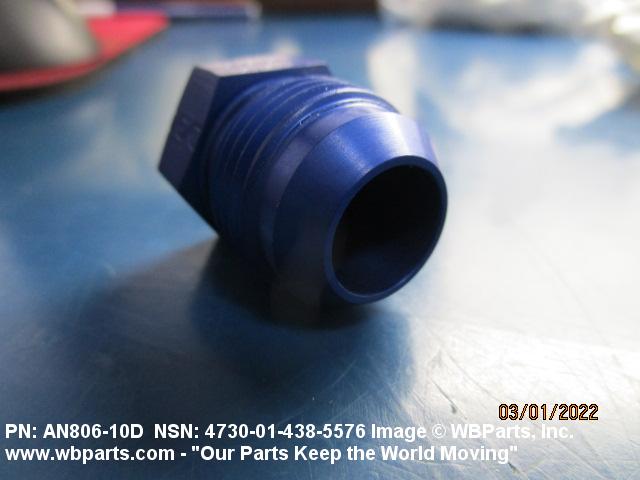

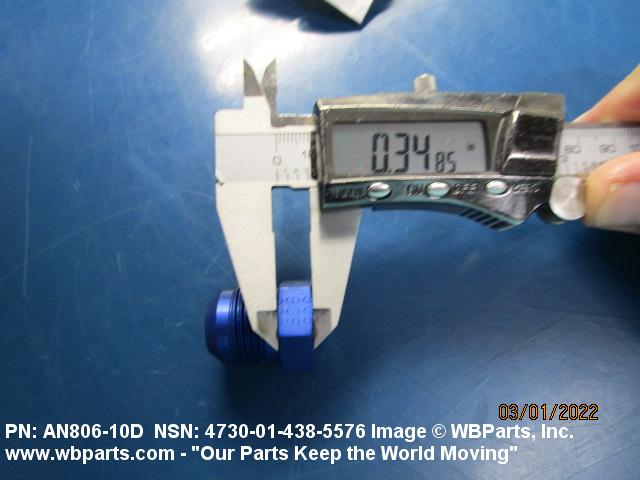

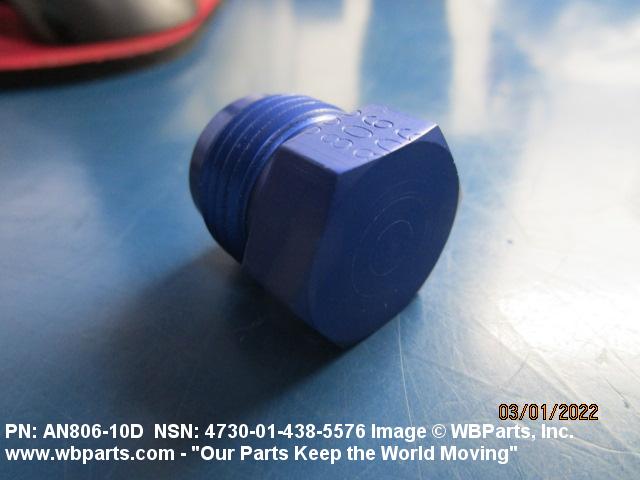

Drawings & Photos | NSN 4730-01-438-5576
Demand History | NSN 4730-01-438-5576
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-438-5576 | 2022-02-45 | 10 | United States |
| AN80610D | 2013-12-350 | 8 | United States |
Cross Reference | NSN 4730-01-438-5576
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN806-10D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-438-5576
Technical Data | NSN 4730-01-438-5576
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| STYLE DESIGNATOR | C42 PLUG, TUBE FITTING FLARED |
| OVERALL LENGTH | 1.109 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJ EXTERNAL |
| NOMINAL THREAD SIZE | 0.875 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| III END ITEM IDENTIFICATION | MOD (R) E3D SENTRY |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN806-10D |
Restrictions/Controls & Freight Information | NSN 4730-01-438-5576
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
