NSN 4730-01-451-7698 PL 8201-002 ITEM 68, PL8201002ITEM68, 1093K2
Product Details | LUBRICANT PRESSURE RELIEF FITTING
4730-01-451-7698 A spring loaded device designed to relieve excessive oil and grease pressure from gear box housings and such items as bearings, kingpins and universal joints. Excludes FITTING, LUBRICATION.
Part Alternates: PL 8201-002 ITEM 68, PL8201002ITEM68, 1093K2, 4730-01-451-7698, 01-451-7698, 4730014517698, 014517698
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 DEC 1997 | 01-451-7698 | 20483 ( FITTING, LUBRICANT PRESSURE RELIEF ) |
Drawings & Photos | NSN 4730-01-451-7698
Demand History | NSN 4730-01-451-7698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1093K2 | 2019-06-153 | 379 | DIBBS |
| PL 8201-002 ITEM 68 | 2019-06-153 | 379 | DIBBS |
| 4730-01-451-7698 | 2015-03-74 | 137 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-451-7698
Technical Data | NSN 4730-01-451-7698
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |

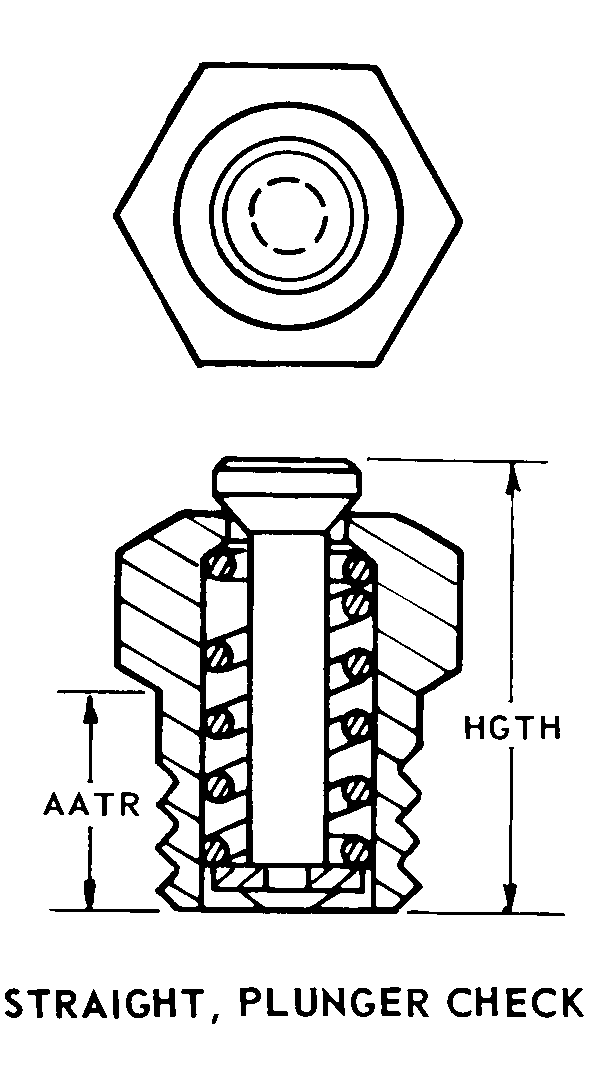

| STYLE DESIGNATOR | K1 STRAIGHT, PLUNGER CHECK |
| SHANK LENGTH | 0.297 INCHES NOMINAL |
| HEIGHT | 0.500 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPTF |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| PRESSURE RELIEF METHOD | PORT END |
| BYPASS RELIEF VALVE SETTING RANGE | 7.5 TO 15.0 POUNDS PER SQUARE INCH |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
| SPECIAL FEATURES | OSPREY CLASS MHC |
Restrictions/Controls & Freight Information | NSN 4730-01-451-7698
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-451-7698
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
