Product Details | PIPE REDUCER
4730-01-483-5433 A straight pipe fitting having a different size connection on each end. It is designed to join two pipes of different sizes or two pipe fittings of different sizes. Excludes BUSHING (as modified).
Part Alternates: 42500-12-04, 99157147, 4730-01-483-5433, 01-483-5433, 4730014835433, 425001204, 014835433
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 02 APR 2001 | 01-483-5433 | 08505 ( REDUCER, PIPE ) |

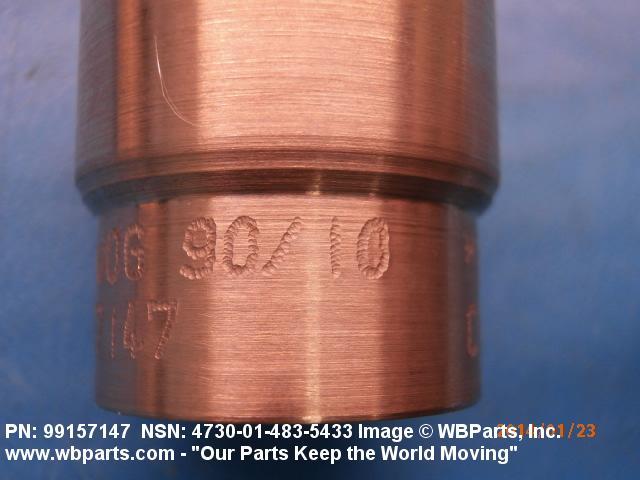

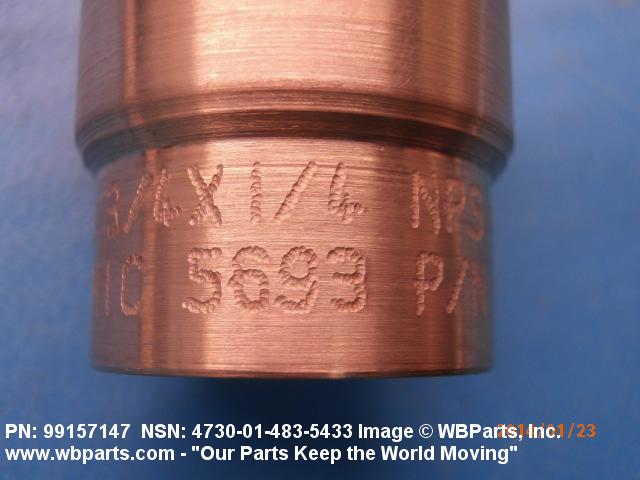

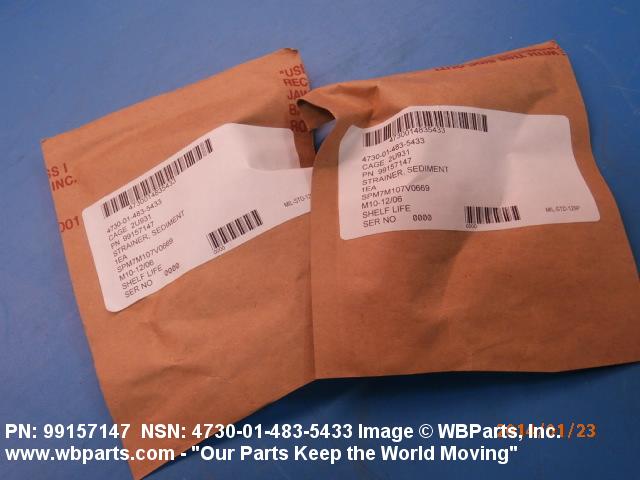

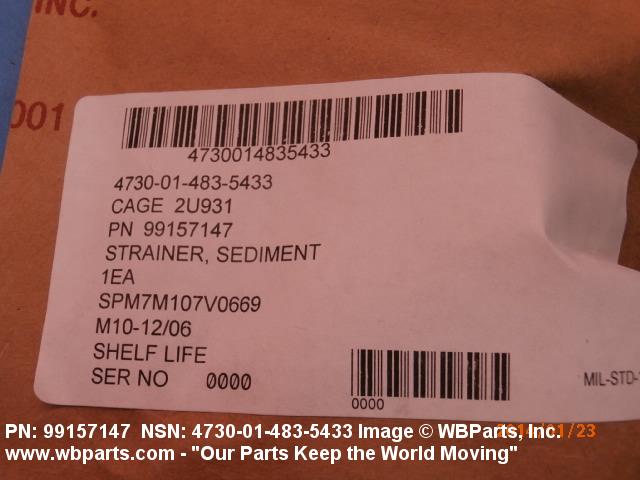

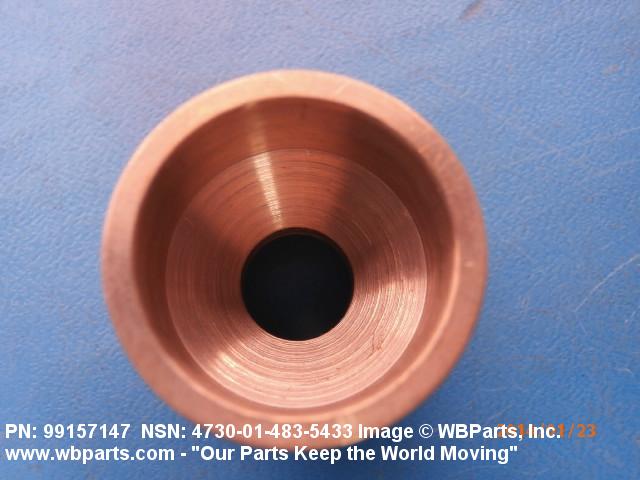

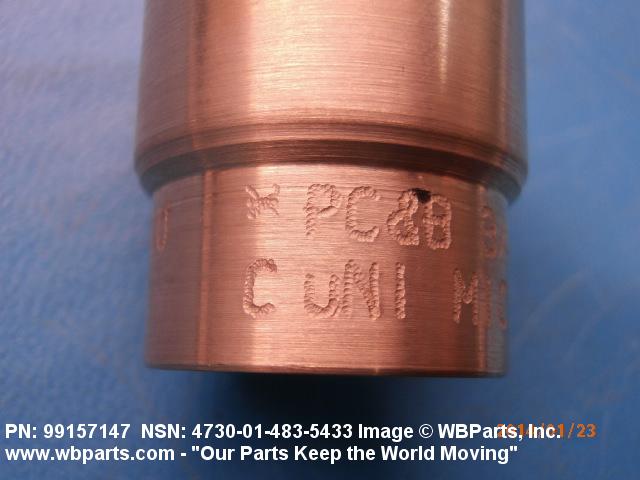

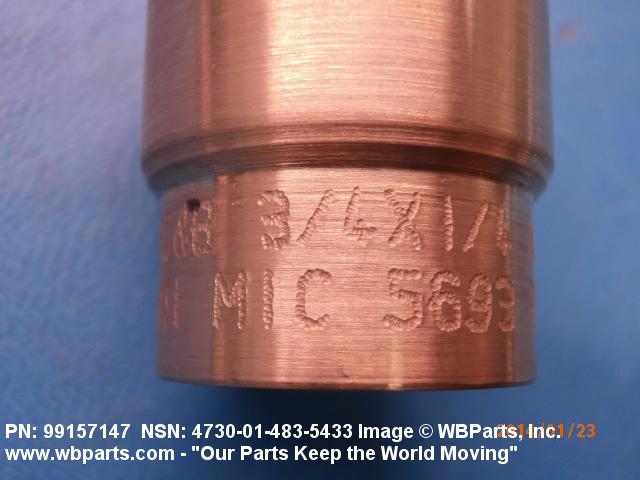

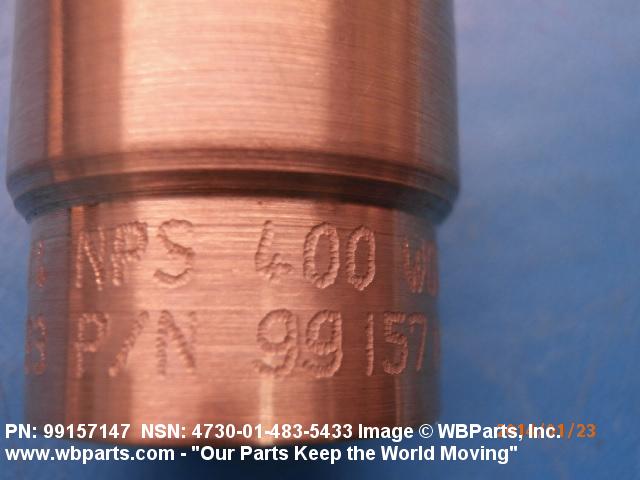

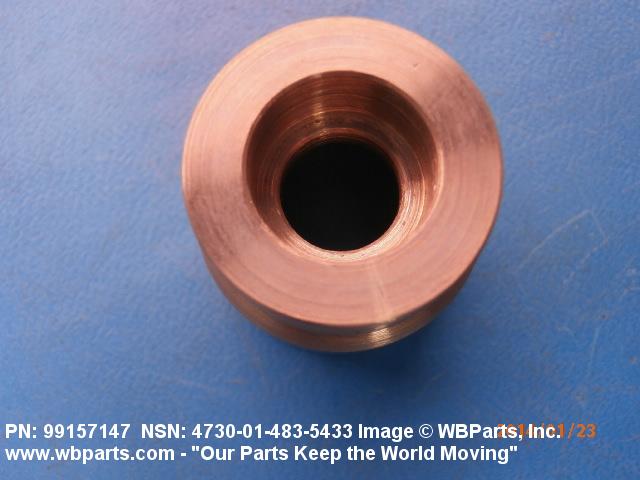

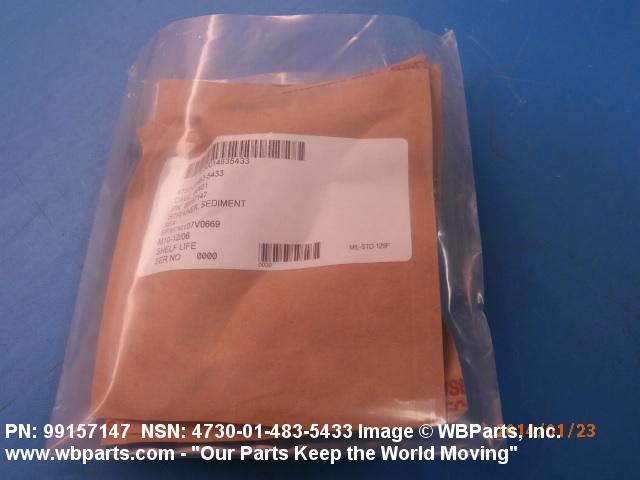

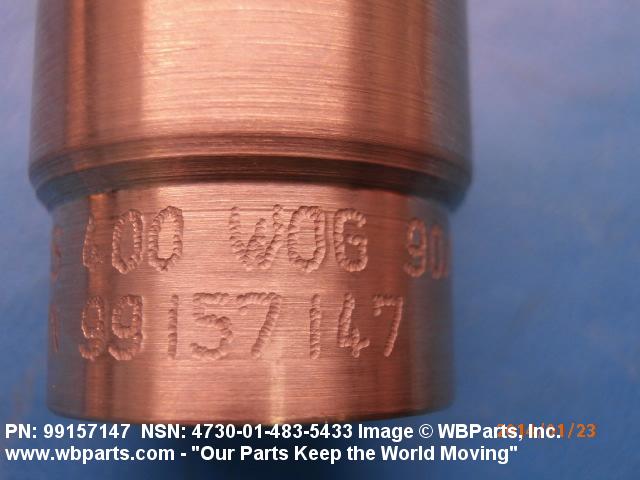

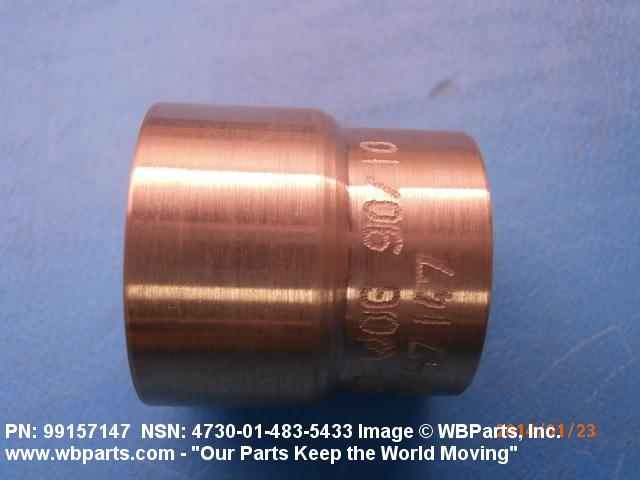

Drawings & Photos | NSN 4730-01-483-5433
Demand History | NSN 4730-01-483-5433
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 99157147 | 2019-01-31 | 63 | DIBBS |
| 4730-01-483-5433 | 2018-12-05 | 19 | DIBBS |
| 4730-01-483-5433 | 2018-11-27 | 1 | DIBBS |
| 4730-01-483-5433 | 2018-11-19 | 4 | DIBBS |
| 4730-01-483-5433 | 2018-06-14 | 15 | DIBBS |
| 4730-01-483-5433 | 2018-05-13 | 14 | DIBBS |
| 4730-01-483-5433 | 2018-05-13 | 15 | DIBBS |
| 4730-01-483-5433 | 2014-12-14 | 4 | DIBBS |
| 4730-01-483-5433 | 2014-01-22 | 2 | DIBBS |
| 4730-01-483-5433 | 2014-01-14 | 2 | United States |
| 4730-01-483-5433 | 2013-10-15 | 10 | DIBBS |
| 4730-01-483-5433 | 2013-09-29 | 10 | DIBBS |
| 4730-01-483-5433 | 2011-06-20 | 2 | DIBBS |
| 4730-01-483-5433 | 2011-01-08 | 4 | DIBBS |
| 4730-01-483-5433 | 2010-10-19 | 10 | DIBBS |
| 4730-01-483-5433 | 2008-12-22 | 1 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-01-483-5433
Related Products | NSN 4730-01-483-5433
4730-01-483-5436, 4730-01-483-5439, 4730-01-483-5446, 4730-01-483-5452, 4730-01-483-5453
Technical Data | NSN 4730-01-483-5433
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ANSIB16.11 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE OIL 2ND RESPONSE WATER 3RD RESPONSE |
| MAXIMUM OPERATING PRESSURE | 400.0 POUNDS PER SQUARE INCH 1ST RESPONSE 400.0 POUNDS PER SQUARE INCH 2ND RESPONSE 400.0 POUNDS PER SQUARE INCH 3RD RESPONSE |
| MAXIMUM OPERATING TEMP | 150.0 DEG FAHRENHEIT 1ST RESPONSE 150.0 DEG FAHRENHEIT 2ND RESPONSE 150.0 DEG FAHRENHEIT 3RD RESPONSE |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE 1ST END UNTHREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B41B SOCKET BRAZING RING 1ST END B100B PLAIN 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES 1ST END 0.250 INCHES 2ND END |
| PIPE WALL THICKNESS DESIGNATION FOR WHICH DESIGNED | EXTRA STRONG ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.063 INCHES |
| REDUCER TYPE | CONCENTRIC |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | 400 PSI SOCKET WELD BUSHING FITTING |
Restrictions/Controls & Freight Information | NSN 4730-01-483-5433
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-483-5433
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
