NSN 4730-01-490-3307 MS2191412W, MS21914-12W, 01-490-3307
Product Details | TUBE CAP
4730-01-490-3307 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS2191412W, MS21914-12W, 4730-01-490-3307, 01-490-3307, 4730014903307, 014903307
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01-490-3307 | 06074 ( CAP, TUBE ) |

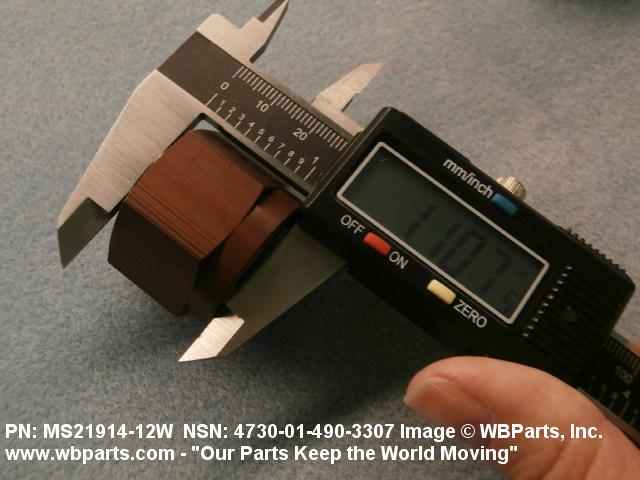

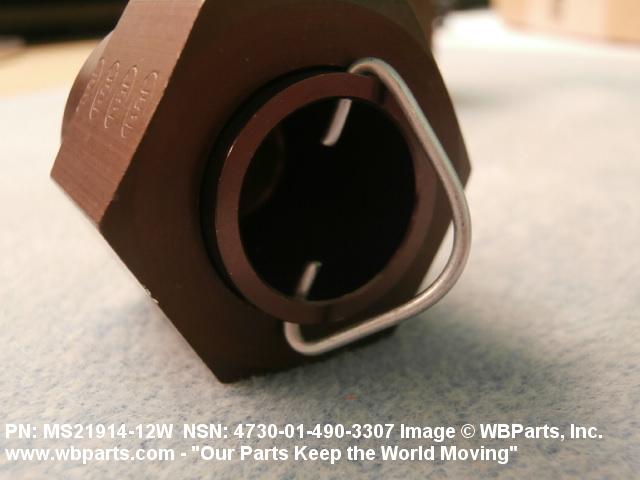

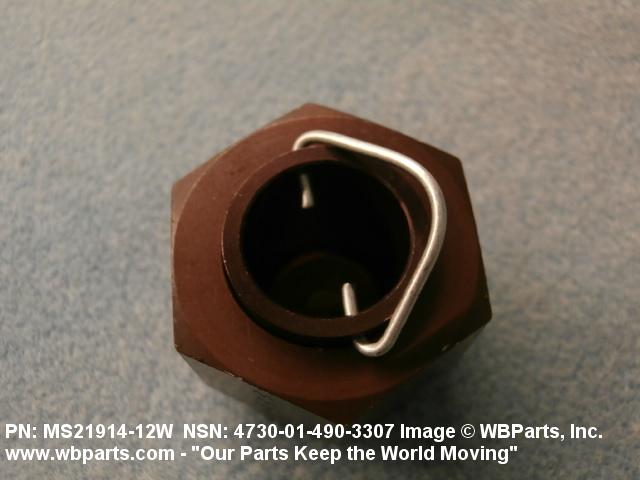

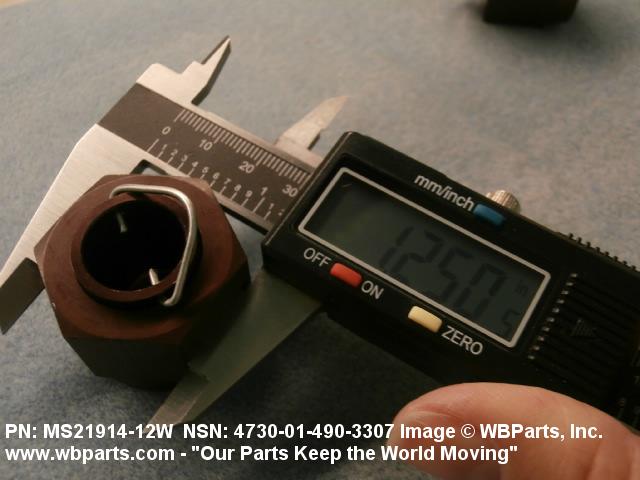

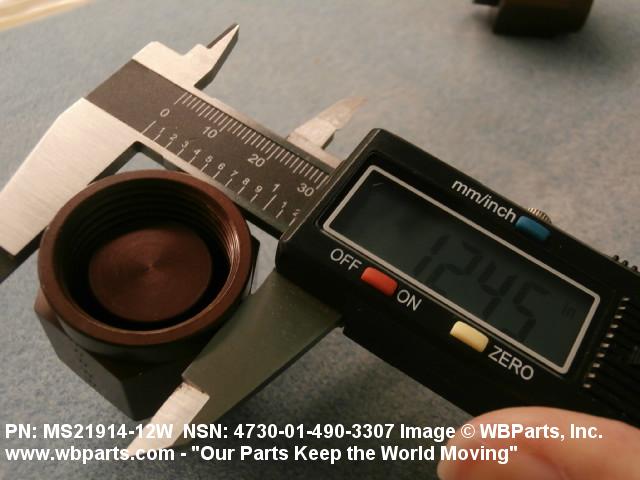

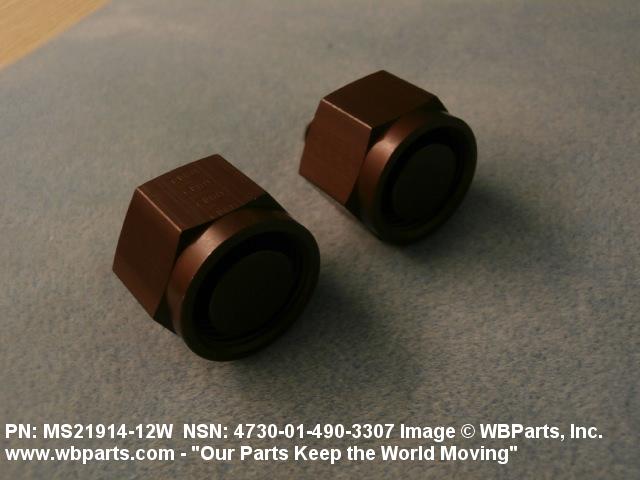

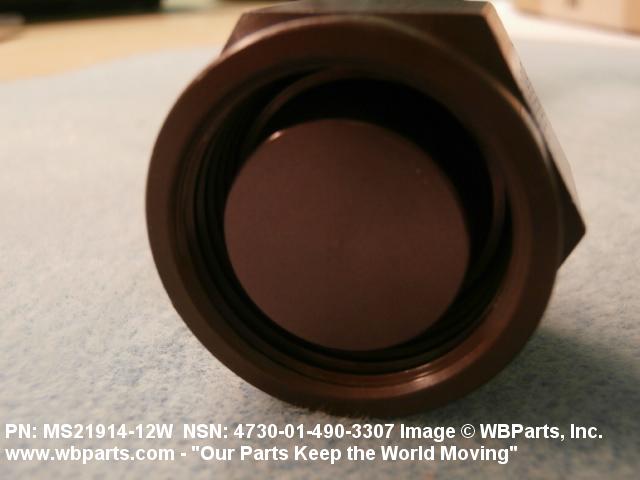

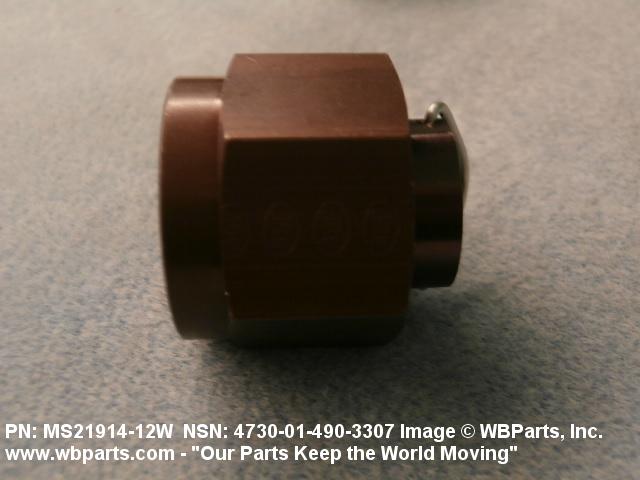

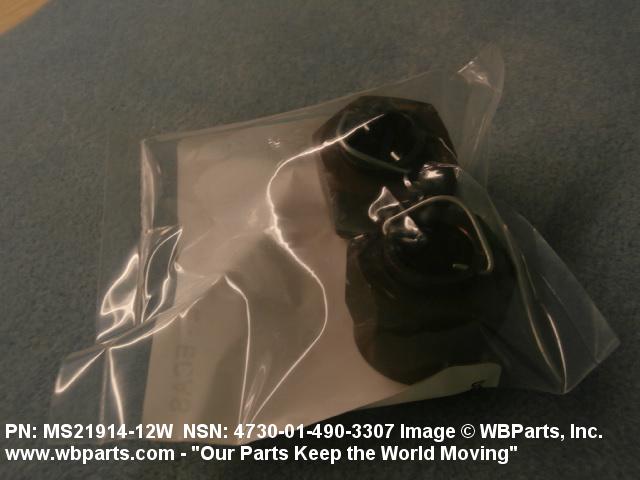

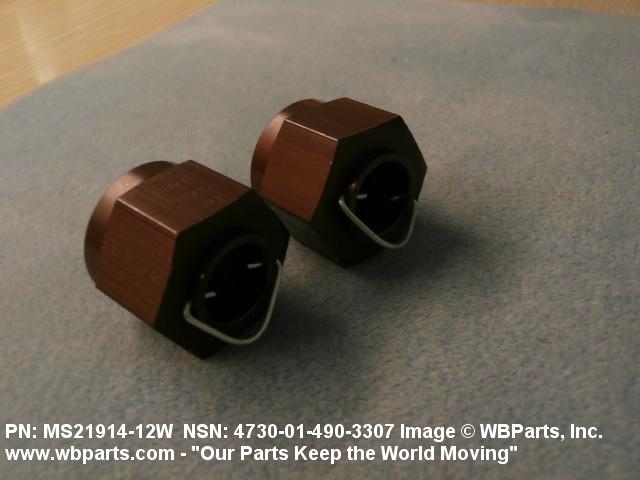

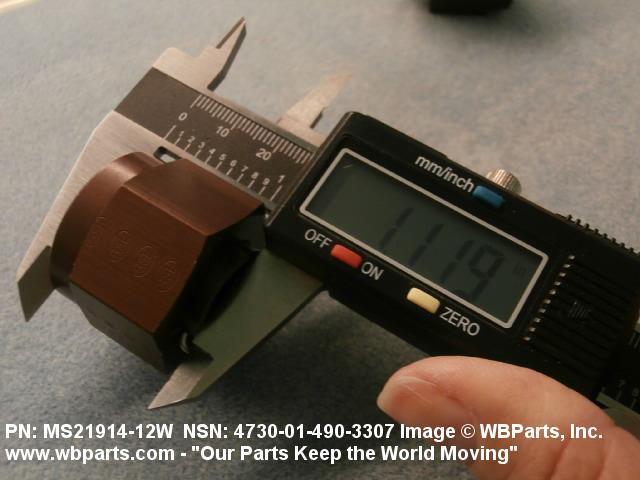

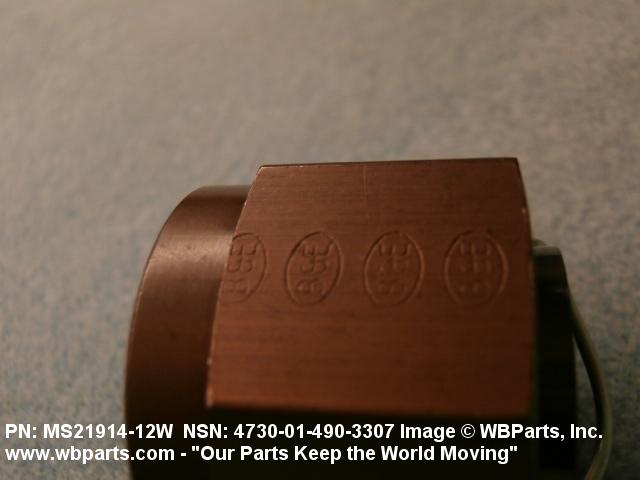

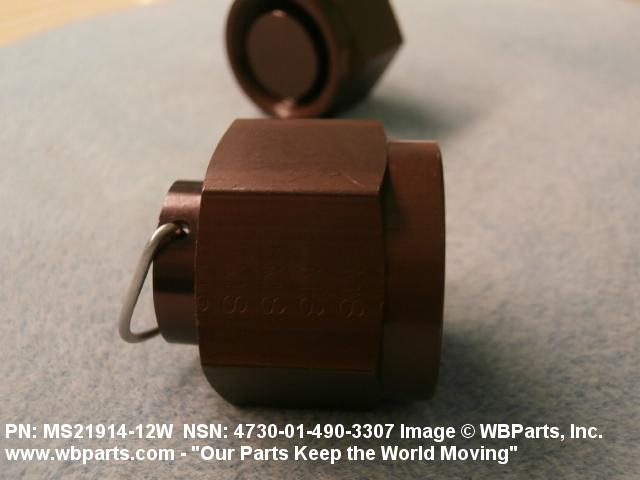

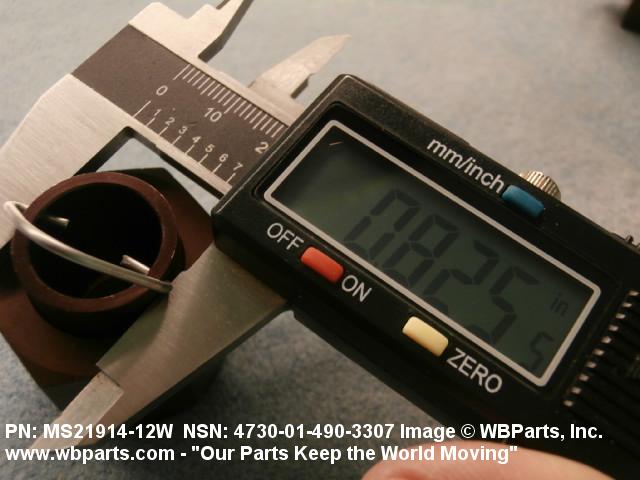

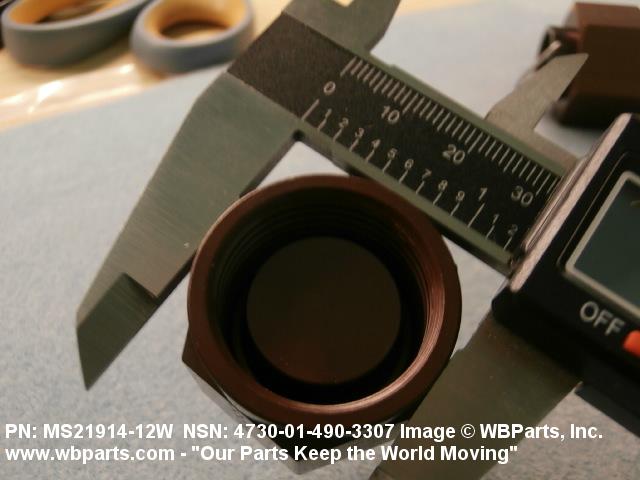

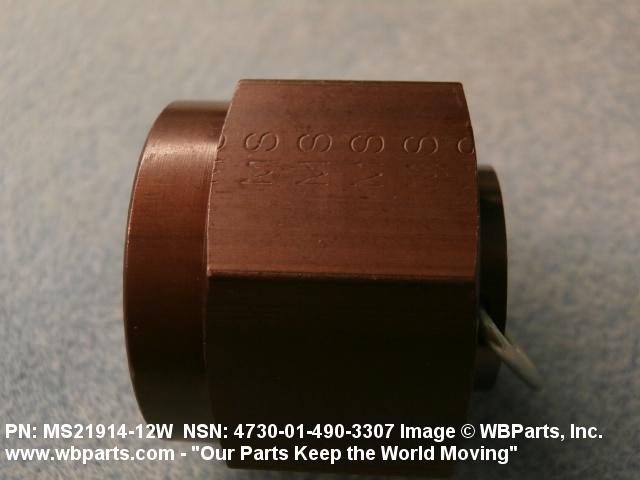

Drawings & Photos | NSN 4730-01-490-3307
Demand History | NSN 4730-01-490-3307
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2191412W | 2016-09-252 | 1 | us |
| MS2191412W | 2016-05-137 | 20 | Singapore |
| MS2191412W | 2015-09-268 | 1 | us |
Cross Reference | NSN 4730-01-490-3307
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-490-3307
Technical Data | NSN 4730-01-490-3307
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| STYLE DESIGNATOR | A14 CAP, TUBE, FLARELESS |
| CONNECTION STYLE | G6 PRESSURE SEAL FLARELESS |
| THREAD SERIES DESIGNATOR | UNJ INTERNAL |
| NOMINAL THREAD SIZE | 1.062 INCHES INTERNAL |
| THREAD QUANTITY PER INCH | 12 INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 96906-MS21914 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | F-22 AIRCRAFT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21914-12W |
Restrictions/Controls & Freight Information | NSN 4730-01-490-3307
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
