NSN 4730-01-495-6241 AS3220, AS322006, AS3220-06
Product Details | TUBE FITTING FLARED SLEEVE

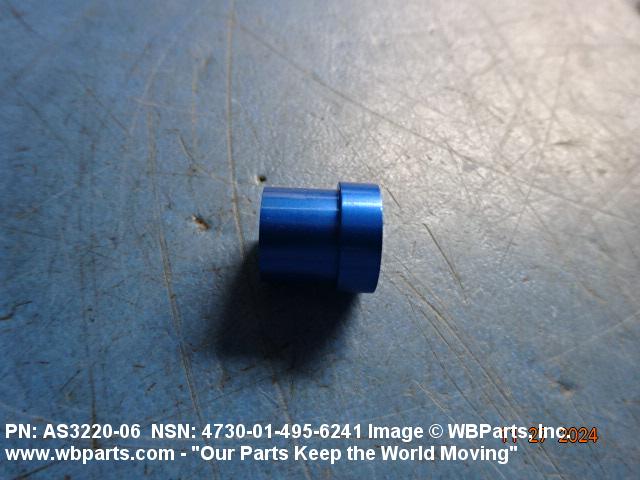

4730-01-495-6241 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: AS3220, AS322006, AS3220-06, AS3220D06 , AS4841, 4730-01-495-6241, 01-495-6241, 4730014956241, 014956241
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 MAR 2002 | 01-495-6241 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

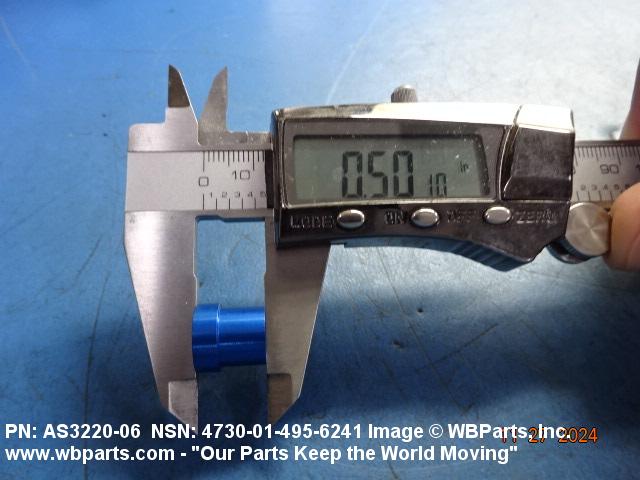

Drawings & Photos | NSN 4730-01-495-6241
Demand History | NSN 4730-01-495-6241
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS322006 | 2025-05-148 | 20 | United States |
| AS4841 | 2025-04-106 | 1 | France |
| AS322006 | 2024-11-323 | 20 | United States |
| 4730-01-495-6241 | 2024-08-232 | 1219 | DIBBS |
| 4730-01-495-6241 | 2024-08-225 | 10 | US |
| 4730-01-495-6241 | 2024-08-221 | 1219 | DIBBS |
| 4730-01-495-6241 | 2023-05-138 | 582 | DIBBS |
| 4730-01-495-6241 | 2022-10-284 | 582 | DIBBS |
| 4730-01-495-6241 | 2022-03-87 | 582 | DIBBS |
| AS3220D06 | 2020-10-301 | 20 | US |
| AS322006 | 2014-08-218 | 80 | US |
| 4730-01-495-6241 | 2013-11-316 | 1199 | DIBBS |
| 4730-01-495-6241 | 2013-10-297 | 30 | US |
| AS322006 | 2012-10-297 | 10 | us |
| 4730-01-495-6241 | 2012-07-187 | 276 | DIBBS |
| 4730-01-495-6241 | 2012-06-156 | 171 | DIBBS |
| AS322006 | 2012-06-153 | 2 | us |
| 4730-01-495-6241 | 2012-05-136 | 331 | DIBBS |
| AS322006 | 2011-03-74 | 125 | United States |
| AS4841 | 2011-03-69 | 8 | |
| 4730-01-495-6241 | 2011-01-28 | 167 | DIBBS |
| 4730-01-495-6241 | 2011-01-14 | 167 | DIBBS |
| 4730-01-495-6241 | 2010-11-314 | 167 | DIBBS |
| 4730-01-495-6241 | 2010-10-286 | 167 | DIBBS |
| 4730-01-495-6241 | 2010-08-243 | 167 | DIBBS |
| AS322006 | 2006-11-319 | 6 | US |
