NSN 4730-01-502-7378 AS1792, AS1792V04N, AS18280
Product Details | TUBE COUPLING NUT
4730-01-502-7378 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: AS1792, AS1792V04N, AS18280, 4730-01-502-7378, 01-502-7378, 4730015027378, 015027378
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 NOV 2002 | 01-502-7378 | 03859 ( NUT, TUBE COUPLING ) |

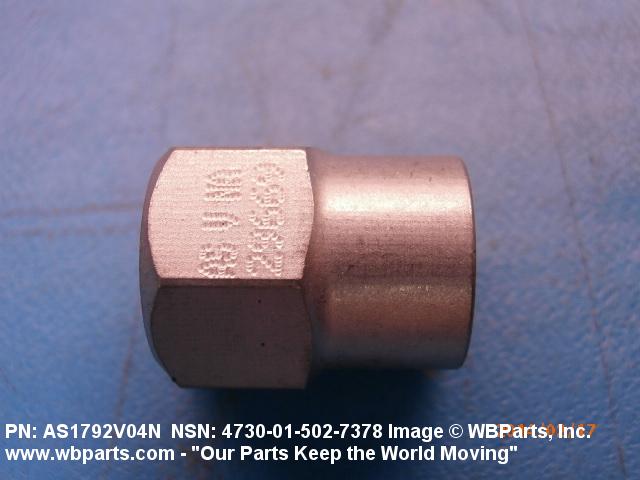

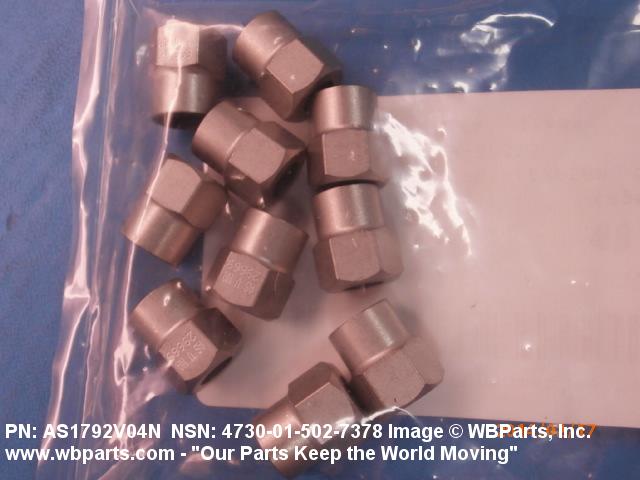

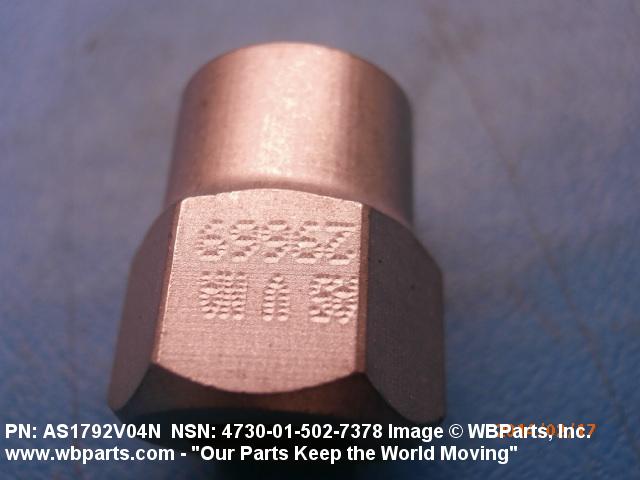

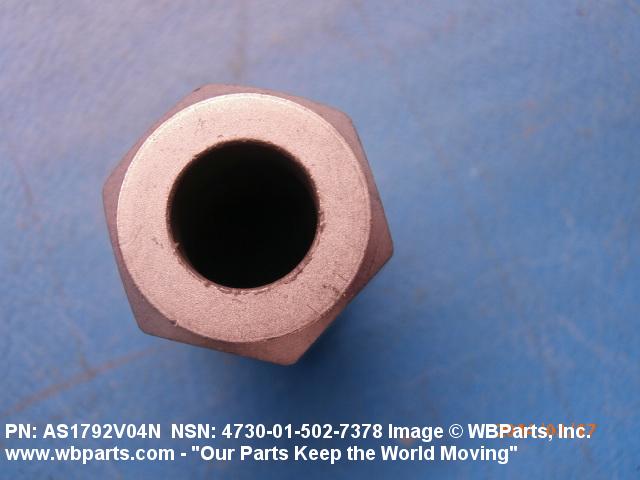

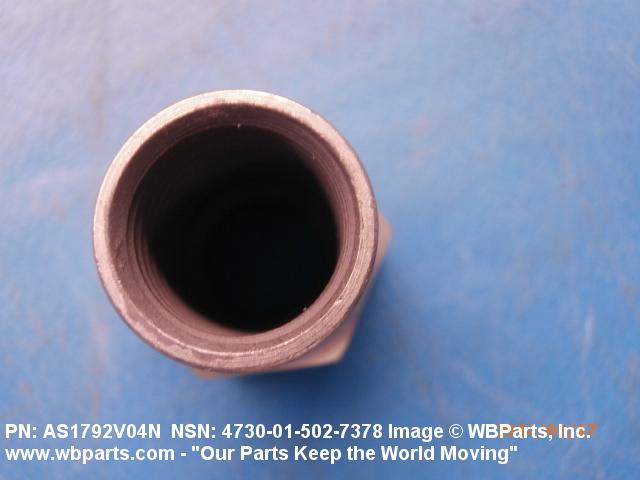

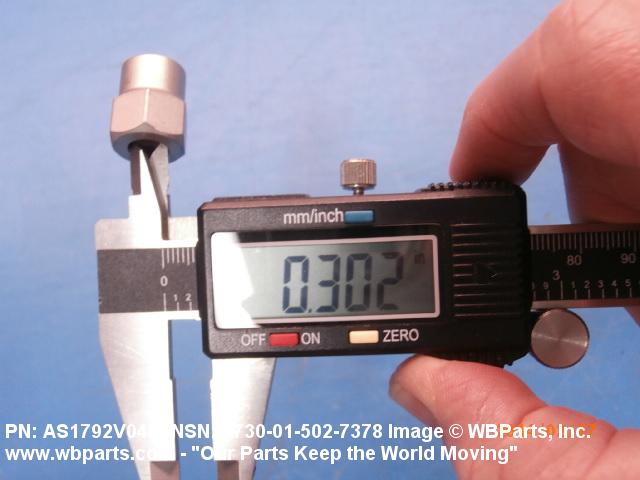

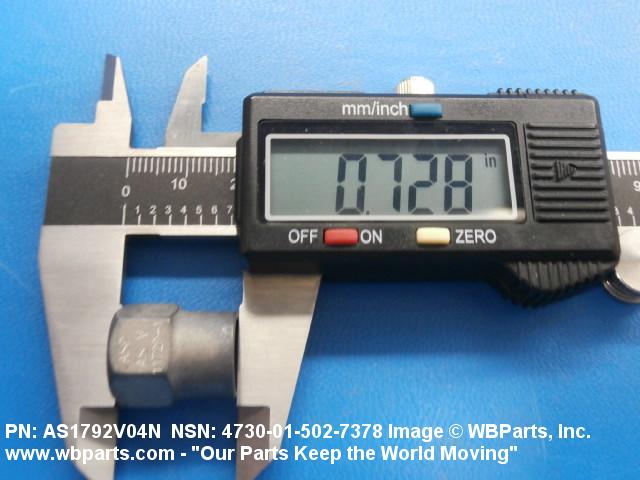

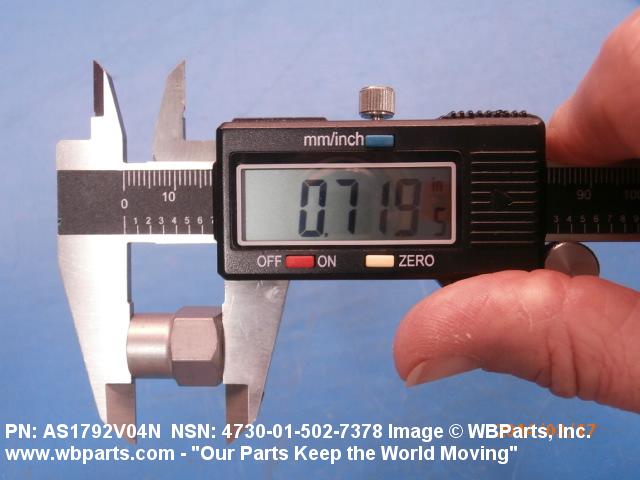

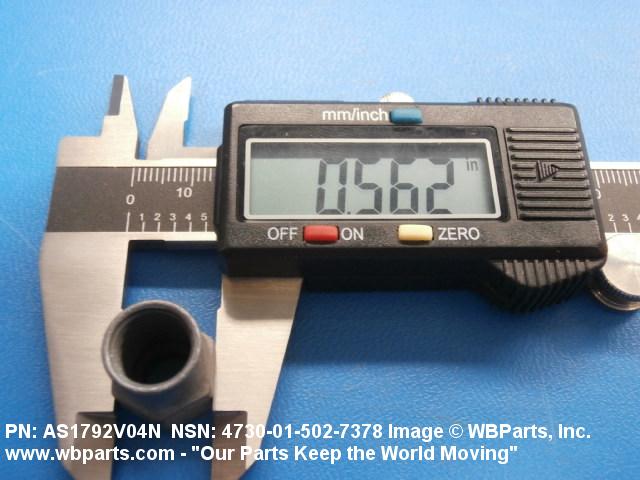

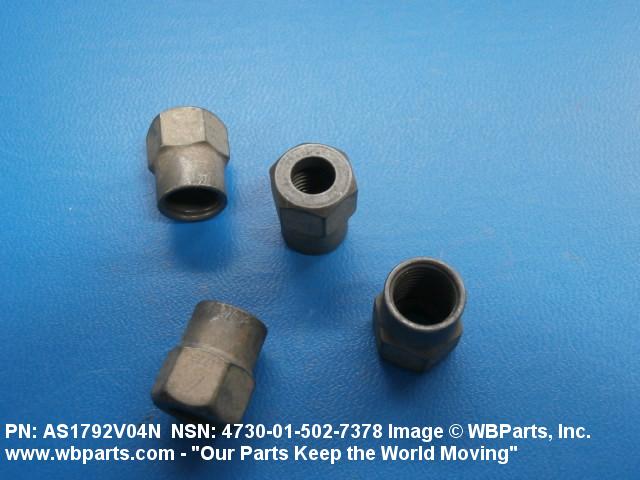

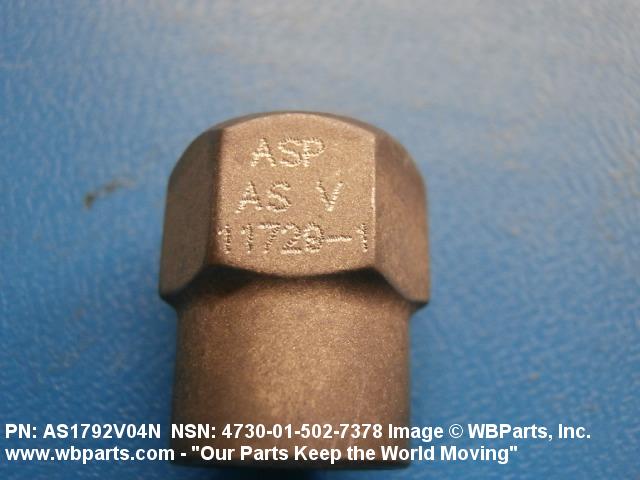

Drawings & Photos | NSN 4730-01-502-7378
Demand History | NSN 4730-01-502-7378
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-502-7378 | 2024-08-240 | 139 | DIBBS |
| AS1792V04N | 2024-05-152 | 4 | China |
| 4730-01-502-7378 | 2023-10-290 | 32 | US |
| 4730-01-502-7378 | 2023-06-164 | 25 | US |
| AS1792V04N | 2023-01-17 | 140 | United States |
| 4730-01-502-7378 | 2022-06-172 | 174 | DIBBS |
| 4730-01-502-7378 | 2022-06-160 | 174 | DIBBS |
| AS1792V04N | 2022-04-96 | 120 | United States |
| AS1792V04N | 2021-01-25 | 50 | United States |
| 4730-01-502-7378 | 2020-11-327 | 97 | DIBBS |
| AS1792V04N | 2019-06-172 | 140 | United States |
| AS1792V04N | 2018-09-271 | 175 | United States |
| 4730-01-502-7378 | 2017-10-283 | 94 | DIBBS |
| 4730-01-502-7378 | 2017-06-155 | 268 | DIBBS |
| 4730-01-502-7378 | 2015-10-291 | 253 | DIBBS |
| 4730-01-502-7378 | 2015-08-228 | 249 | DIBBS |
| 4730-01-502-7378 | 2015-06-156 | 159 | DIBBS |
| AS1792V04N | 2015-02-33 | 4 | United States |
| AS18280 | 2014-10-280 | 1 | US |
| AS1792V04N | 2014-02-41 | 4 | United States |
| AS1792V04N | 2014-02-37 | 4 | United States |
| 4730-01-502-7378 | 2014-02-34 | 96 | DIBBS |
| AS1792V04N | 2011-05-139 | 150 | United States |
| AS1792V04N | 2011-02-53 | 16 | US |
| 4730-01-502-7378 | 2010-12-337 | 45 | DIBBS |
| 4730-01-502-7378 | 2010-09-244 | 15 | DIBBS |
| 4730-01-502-7378 | 2010-08-239 | 88 | DIBBS |
| 4730-01-502-7378 | 2010-03-64 | 58 | DIBBS |
| 4730-01-502-7378 | 2010-02-42 | 35 | DIBBS |
| 4730-01-502-7378 | 2009-01-13 | 11 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-502-7378
Related Products | NSN 4730-01-502-7378
Technical Data | NSN 4730-01-502-7378
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.4375 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE II OR VIII FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A351 TUBE COUPLING |
| NUT HEIGHT | 0.720 INCHES NOMINAL |

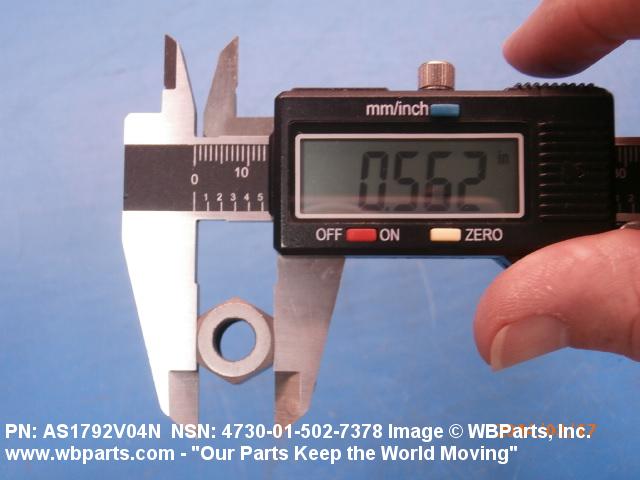

| WIDTH ACROSS FLATS | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |

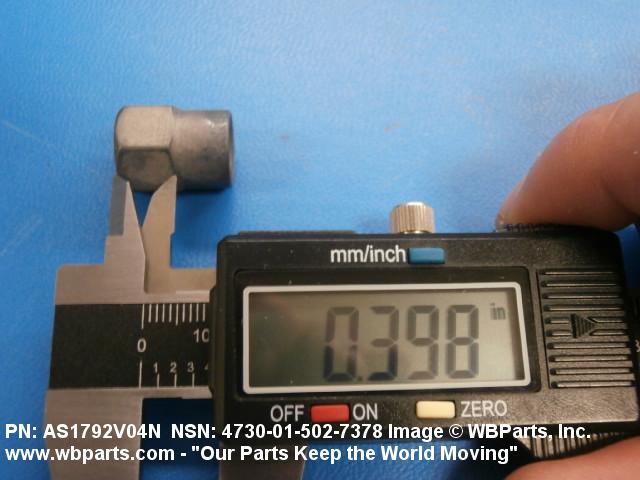

| LENGTH TO SHOULDER | 0.398 INCHES NOMINAL |

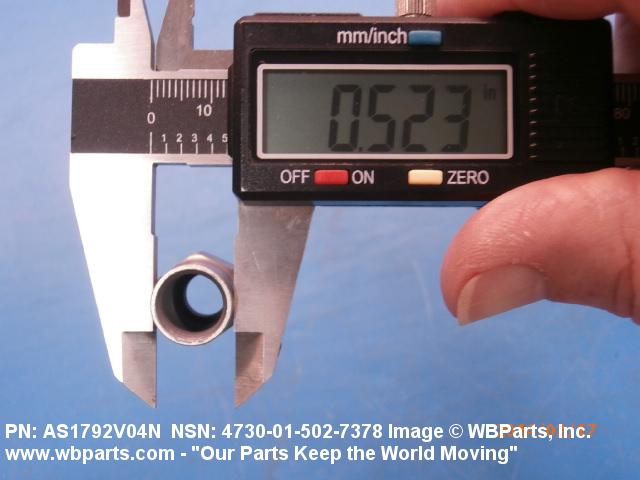

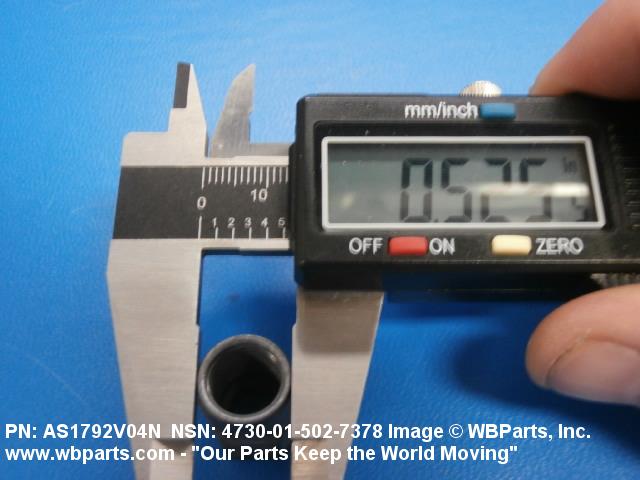

| SMALLEST INSIDE DIAMETER | 0.519 INCHES NOMINAL |
| FABRICATION METHOD | MACHINED |
| LUBRICATION | DRY FILM LUBRICANT |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.250 INCHES |
| SPECIAL FEATURES | SOLID FILM LUBRICATION |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT,FITTING,LIGHTWEIGHT,FLARELESS |
Restrictions/Controls & Freight Information | NSN 4730-01-502-7378
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-502-7378
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
