NSN 4730-01-503-8042 FTR11, FTR13201, 01-503-8042
Product Details | FLUID STRAINER COVER
4730-01-503-8042 An item of various shapes designed as a component of a STRAINER, SEDIMENT, acting as the cover and retaining the strainer element in place. The item does not have an inlet or outlet connection. It is fastened onto the STRAINER BODY, SEDIMENT by means of bolts, clamps, or threaded. For items with inlet and/or outlet connections, see HEAD, FILTER FLUID.
Part Alternates: FTR11, FTR13201, 4730-01-503-8042, 01-503-8042, 4730015038042, 015038042
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 JAN 2003 | 01-503-8042 | 52889 ( COVER, FLUID STRAINER ) |
Drawings & Photos | NSN 4730-01-503-8042
Demand History | NSN 4730-01-503-8042
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-503-8042 | 2017-11-320 | 62 | DIBBS |
| 4730-01-503-8042 | 2016-12-353 | 60 | DIBBS |
| 4730-01-503-8042 | 2015-05-140 | 43 | DIBBS |
| 4730-01-503-8042 | 2014-09-252 | 12 | DIBBS |
| 4730-01-503-8042 | 2013-11-308 | 1 | DIBBS |
| 4730-01-503-8042 | 2013-10-288 | 1 | DIBBS |
| 4730-01-503-8042 | 2013-09-255 | 4 | DIBBS |
| 4730-01-503-8042 | 2008-12-340 | 12 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-503-8042
Technical Data | NSN 4730-01-503-8042
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| ATTACHMENT METHOD | THREADED |

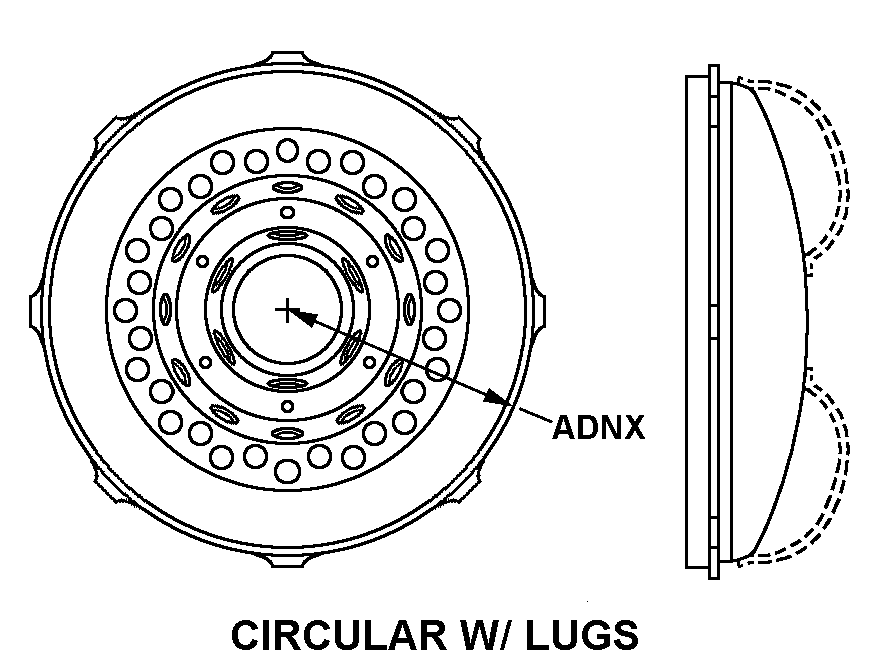

| PERIPHERAL SHAPE STYLE | 56 CIRCULAR W/LUGS |
| CROSS-SECTIONAL SHAPE STYLE | 21 CIRCULAR RECESS |
| FLUID FILTER ELEMENT RETAINER | NOT INCLUDED |
| SPECIAL FEATURES | INCLUDES O-RING (139.07 X 7MM) |
| III TYPE/MODEL DESIGNATION | FTR132050 |
| III END ITEM IDENTIFICATION | 4730-01-503-6207 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FLUID STRAINER COVER AND O-RING |
Restrictions/Controls & Freight Information | NSN 4730-01-503-8042
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-503-8042
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
