Product Details | SELF-SEALING COUPLING ASSEMBLY
4730-01-540-2413 A multipiece fluid line fitting consisting of two COUPLING HALF, SELF-SEALING fittings.
Part Alternates: AE75446M, 70307-03001-105, 4730-01-540-2413, 01-540-2413, 4730015402413, 7030703001105, 015402413
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 MAY 2006 | 01-540-2413 | 18279 ( COUPLING ASSEMBLY, SELF-SEALING ) |
Drawings & Photos | NSN 4730-01-540-2413
Demand History | NSN 4730-01-540-2413
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 70307-03001-105 | 2026-01-08 | 1 | DIBBS |
| AE75446M | 2026-01-08 | 1 | DIBBS |
| 70307-03001-105 | 2025-06-173 | 1 | DIBBS |
| AE75446M | 2025-06-173 | 1 | DIBBS |
| 70307-03001-105 | 2024-11-309 | 21 | DIBBS |
| AE75446M | 2024-11-309 | 21 | DIBBS |
| 70307-03001-105 | 2023-11-323 | 21 | DIBBS |
| AE75446M | 2023-11-323 | 21 | DIBBS |
| 70307-03001-105 | 2023-08-236 | 21 | DIBBS |
| AE75446M | 2023-08-236 | 21 | DIBBS |
| 4730-01-540-2413 | 2023-05-121 | 21 | US |
| 70307-03001-105 | 2023-04-120 | 21 | DIBBS |
| AE75446M | 2023-04-120 | 21 | DIBBS |
| 70307-03001-105 | 2022-05-123 | 9 | DIBBS |
| AE75446M | 2022-05-123 | 9 | DIBBS |
| 70307-03001-105 | 2021-02-49 | 8 | DIBBS |
| AE75446M | 2021-02-49 | 8 | DIBBS |
| 70307-03001-105 | 2020-10-295 | 2 | DIBBS |
| AE75446M | 2020-10-295 | 2 | DIBBS |
| 70307-03001-105 | 2020-09-260 | 2 | DIBBS |
| AE75446M | 2020-09-260 | 2 | DIBBS |
| 70307-03001-105 | 2020-03-68 | 7 | DIBBS |
| AE75446M | 2020-03-68 | 7 | DIBBS |
| 70307-03001-105 | 2019-12-351 | 3 | DIBBS |
| AE75446M | 2019-12-351 | 3 | DIBBS |
| 70307-03001-105 | 2019-10-279 | 3 | DIBBS |
| AE75446M | 2019-10-279 | 3 | DIBBS |
| 70307-03001-105 | 2019-07-192 | 4 | DIBBS |
| AE75446M | 2019-07-192 | 4 | DIBBS |
| 70307-03001-105 | 2019-05-150 | 3 | DIBBS |
| AE75446M | 2019-05-150 | 3 | DIBBS |
| 4730-01-540-2413 | 2015-07-188 | 19 | DIBBS |
| 4730-01-540-2413 | 2014-06-174 | 46 | DIBBS |
| 4730-01-540-2413 | 2014-06-161 | 46 | DIBBS |
| 4730-01-540-2413 | 2013-12-351 | 7 | DIBBS |
| 4730-01-540-2413 | 2013-08-217 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-540-2413
Related Products | NSN 4730-01-540-2413
Technical Data | NSN 4730-01-540-2413
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BODY |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 60.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | A2 COUPLING ASSEMBLY |
| FLOW ANGLE | 90.0 DEGREES |
| OVERALL LENGTH | 4.560 INCHES NOMINAL |
| MOUNTING FLANGE LOCATION | FIRST END |
| CONNECTION TYPE | FLANGE MOUNTING FLANGE THREADED EXTERNAL BOSS ALL ENDS |

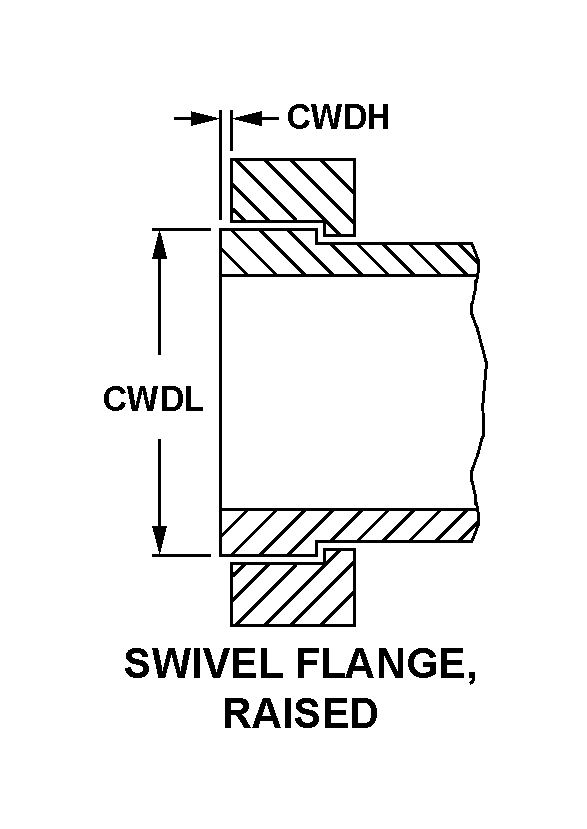

| CONNECTION STYLE | G5 SWIVEL FLANGE, RAISED MOUNTING FLANGE D7 EXTERNAL SEAT FOR GASKET SEAL ALL ENDS |
