NSN 4730-01-542-7635 MS21913V5P, AS18280, AS21913
Product Details | THREADED TUBE FITTING PLUG
4730-01-542-7635 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: MS21913V5P, AS18280, AS21913, 4730-01-542-7635, 01-542-7635, 4730015427635, 015427635
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 AUG 2006 | 01-542-7635 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

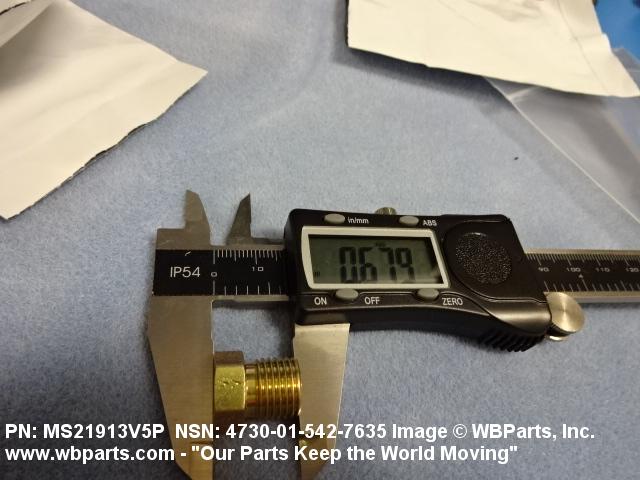

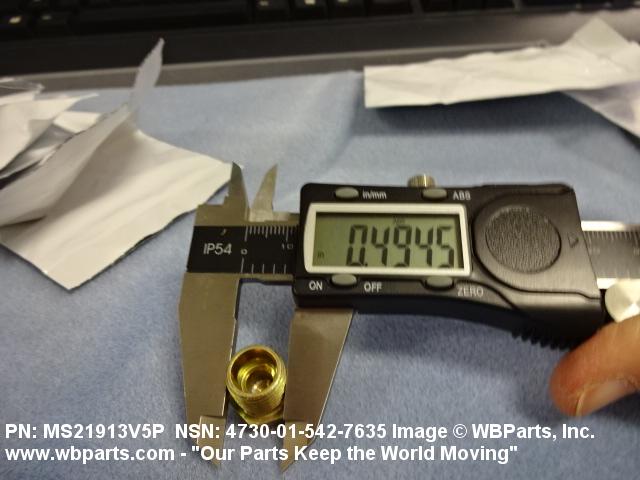

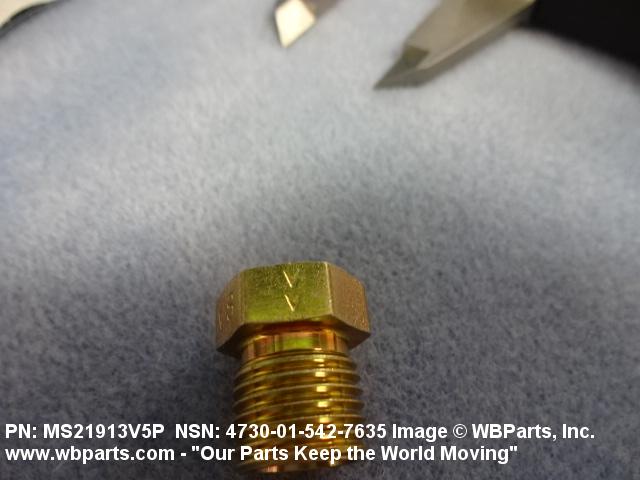

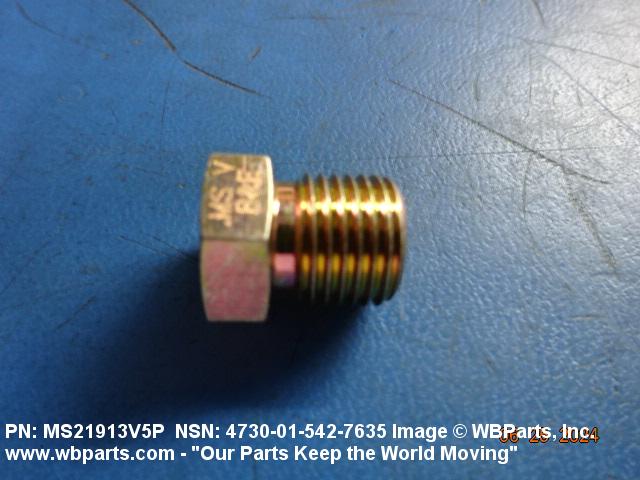

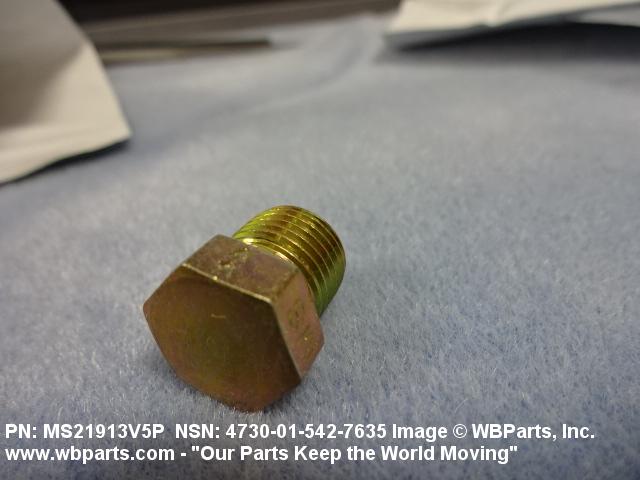

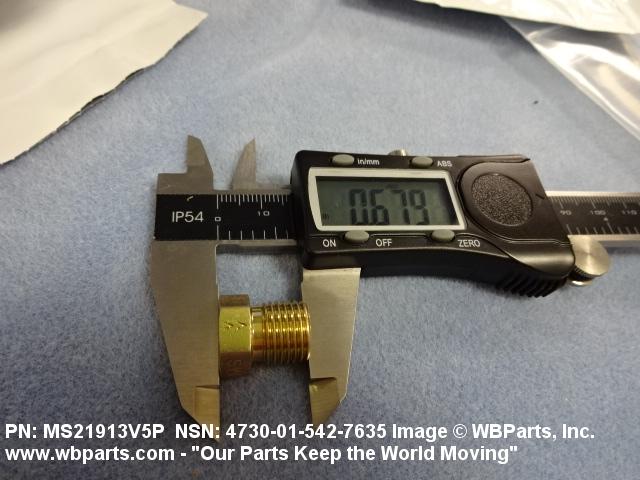

Drawings & Photos | NSN 4730-01-542-7635
Demand History | NSN 4730-01-542-7635
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21913V5P | 2024-06-176 | 12 | AE |
| MS21913V5P | 2019-06-171 | 15 | US |
| 4730-01-542-7635 | 2018-05-126 | 3550 | DIBBS |
| 4730-01-542-7635 | 2018-03-63 | 1562 | DIBBS |
| 4730-01-542-7635 | 2017-11-309 | 959 | DIBBS |
| 4730-01-542-7635 | 2017-03-61 | 725 | DIBBS |
| 4730-01-542-7635 | 2016-07-211 | 515 | DIBBS |
| 4730-01-542-7635 | 2016-07-200 | 515 | DIBBS |
| 4730-01-542-7635 | 2015-05-150 | 1127 | DIBBS |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-01-542-7635 | 2014-04-111 | 1220 | DIBBS |
| 4730-01-542-7635 | 2013-05-142 | 1619 | DIBBS |
| AS21913 | 2012-12-360 | 1 | CN |
| 4730-01-542-7635 | 2012-06-181 | 744 | DIBBS |
| MS21913V5P | 2012-04-114 | 50 | United States |
| 4730-01-542-7635 | 2011-09-273 | 631 | DIBBS |
| 4730-01-542-7635 | 2011-09-246 | 558 | DIBBS |
| 4730-01-542-7635 | 2010-03-60 | 3126 | DIBBS |
| 4730-01-542-7635 | 2009-12-352 | 2923 | DIBBS |
| 4730-01-542-7635 | 2008-11-317 | 3237 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-542-7635
Related Products | NSN 4730-01-542-7635
Technical Data | NSN 4730-01-542-7635
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 15-5PH OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | C43 PLUG, TUBE FITTING FLARELESS |
| HEAD HEIGHT | 0.172 INCHES NOMINAL |
| OVERALL LENGTH | 0.672 INCHES NOMINAL |
| CONNECTION STYLE | J5 FLARELESS |
| THREAD SERIES DESIGNATOR | UNJF EXTERNAL |
| NOMINAL THREAD SIZE | 0.500 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SEAT ANGLE | 12.0 DEGREES |
| MAXIMUM OPERATING PRESSURE | 1500.0 POUNDS PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT |
| SPECIAL FEATURES | CORROSION RESISTANT STEEL (15-5PH) WITH CADMIUM PLATING |
| SPECIFICATION/STANDARD DATA | 81343-AS21913 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PLUG, FLARELESS TUBE |
Restrictions/Controls & Freight Information | NSN 4730-01-542-7635
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-542-7635
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
