NSN 4730-01-545-3664 AS933D06, 01-545-3664, 015453664
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-01-545-3664 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: AS933D06, 4730-01-545-3664, 01-545-3664, 4730015453664, 015453664
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01-545-3664 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

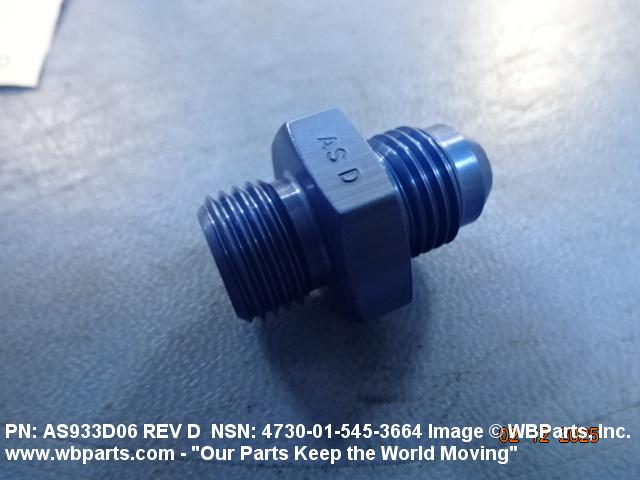

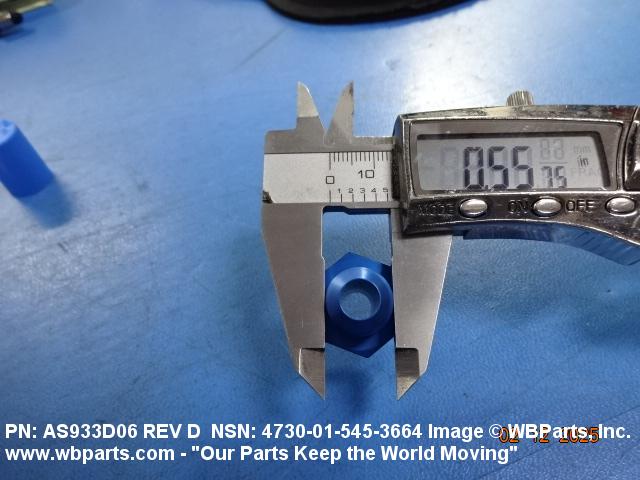

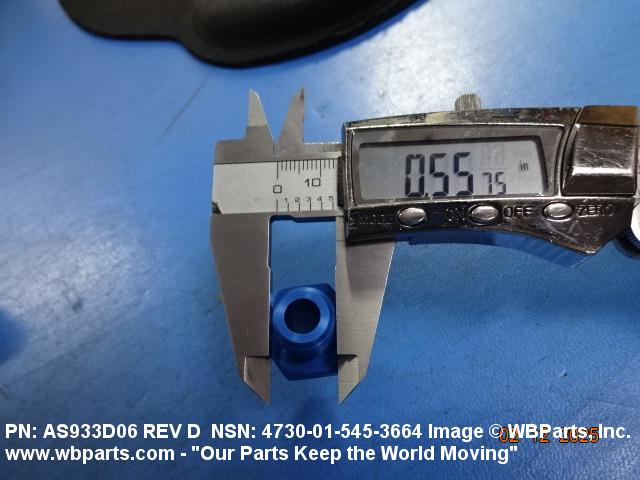

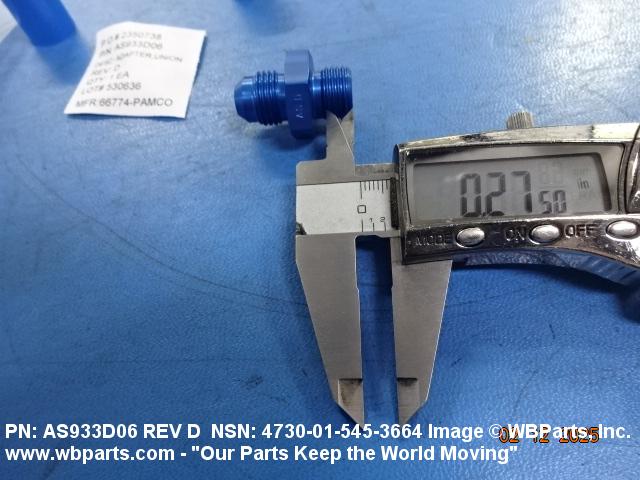

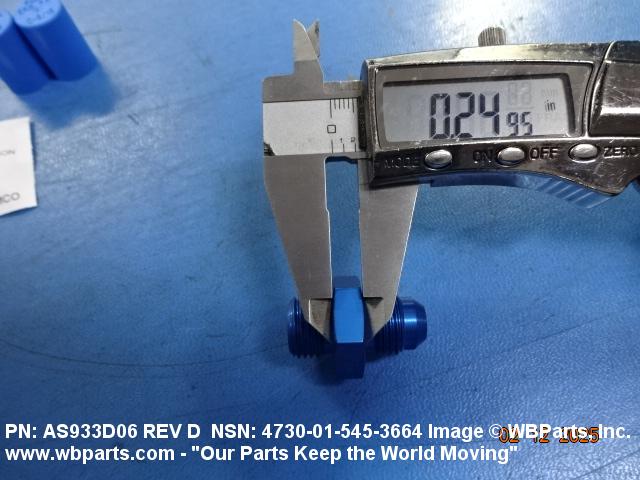

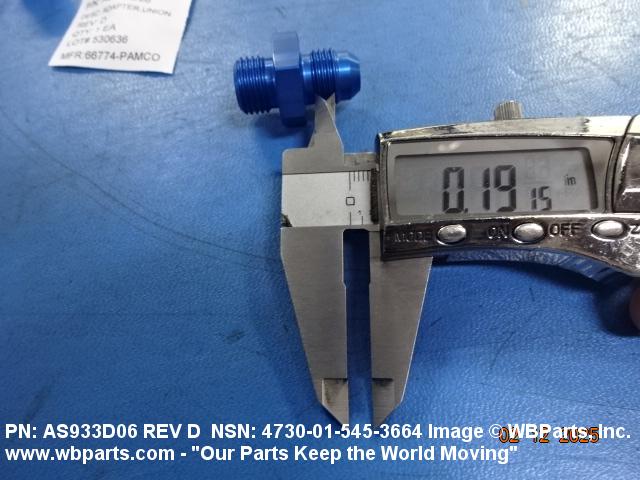

Drawings & Photos | NSN 4730-01-545-3664
Demand History | NSN 4730-01-545-3664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS933D06 | 2025-09-261 | 2 | us |
| 4730-01-545-3664 | 2025-03-84 | 152 | us |
| AS933D06 | 2025-02-51 | 70 | us |
| 4730-01-545-3664 | 2024-12-362 | 44 | us |
| AS933D06 | 2021-03-75 | 18 | US |
| 4730-01-545-3664 | 2017-05-136 | 3 | US |
Cross Reference | NSN 4730-01-545-3664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 46A52003 | 43999 | BOEING COMPANY, THE DBA BOEING |
| 46A52003-051 | 43999 | BOEING COMPANY, THE DBA BOEING |
| AS4875/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS933 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS933D06 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24487D6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-545-3664
Technical Data | NSN 4730-01-545-3664
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/4 FED SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 195.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 380.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 18 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

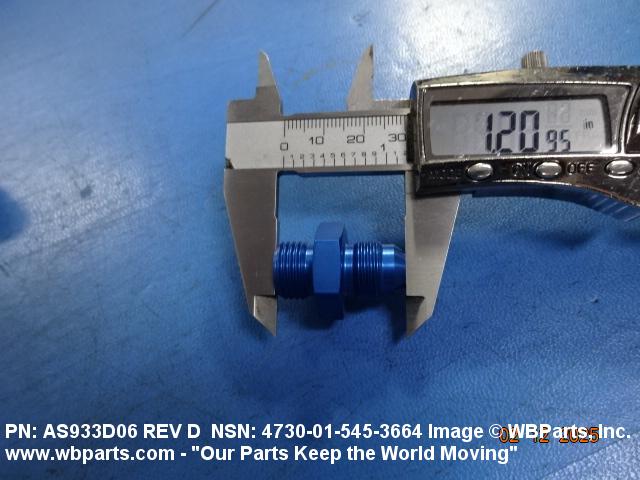

| NOMINAL OVERALL LENGTH | 1.206 INCHES |
| SPECIFICATION/STANDARD DATA | 81343-AS4875/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | RQ-4A GLOBAL HAWK |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NIPPLE TUBE |
Restrictions/Controls & Freight Information | NSN 4730-01-545-3664
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
