NSN 4730-01-546-7695 100AASS, 100-AA-SS, 01-546-7695
Product Details | QUICK-DISCONNECT NIPPLE
4730-01-546-7695 A fluid line fitting having external quick-disconnect features of the same size on both ends, designed to couple mating internal quick-disconnect fittings.
Part Alternates: 100AASS, 100-AA-SS, 4730-01-546-7695, 01-546-7695, 4730015467695, 015467695
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 DEC 2006 | 01-546-7695 | 33081 ( NIPPLE, QUICK-DISCONNECT ) |

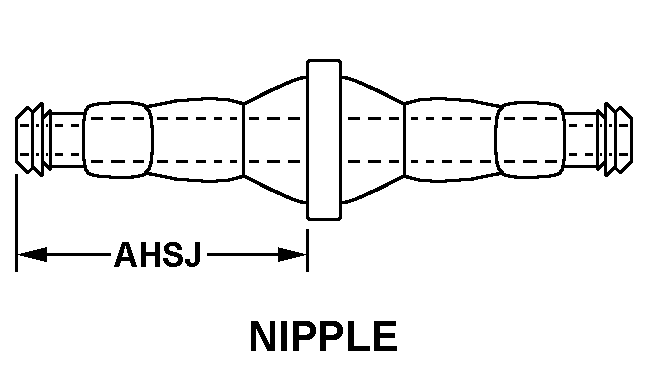

Drawings & Photos | NSN 4730-01-546-7695
Demand History | NSN 4730-01-546-7695
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 100-AA-SS | 2022-04-94 | 9 | DIBBS |
| 100-AA-SS | 2022-02-47 | 9 | DIBBS |
Cross Reference | NSN 4730-01-546-7695
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100-AA-SS | 72661 | DIXON VALVE & COUPLING COMPANY DIV DIXON POWHATAN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-546-7695
Related Products | NSN 4730-01-546-7695
Technical Data | NSN 4730-01-546-7695
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | A2 NIPPLE |
| CONNECTION TYPE | UNIVERSAL QUICK DISCONNECT |
| CONNECTION STYLE | K4 CAM OR LEVER (EXTERNAL) |
| QUICK DISCONNECT METHOD | CAM-LOCKING |
| QUICK DISCONNECT NOMINAL SIZE | 1.000 INCHES |
| SPECIAL FEATURES | STAINLESS STEEL; CAM AND GROOVE COUPLING |
| END ITEM IDENTIFICATION | NUC EQUIPMENT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SPOOL ADAPTER |
Restrictions/Controls & Freight Information | NSN 4730-01-546-7695
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096000 | NIPPLES/TUBING STEEL OPEN SEAM |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-546-7695
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
