NSN 4730-01-548-6275 MS21914V5P, AS18280, AS21914
Product Details | TUBE CAP
4730-01-548-6275 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS21914V5P, AS18280, AS21914, 4730-01-548-6275, 01-548-6275, 4730015486275, 015486275
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 FEB 2007 | 01-548-6275 | 06074 ( CAP, TUBE ) |

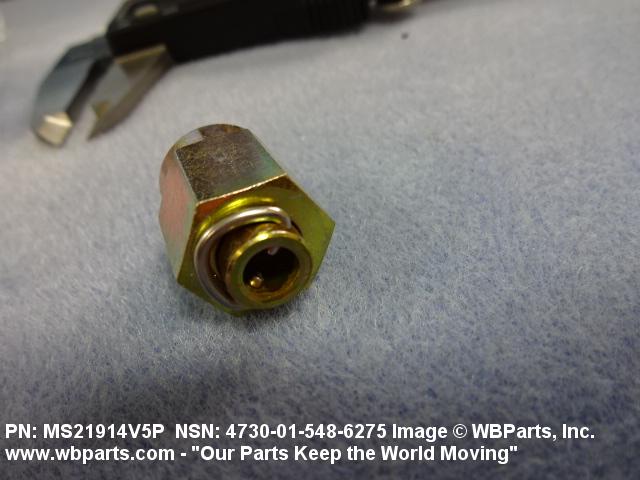

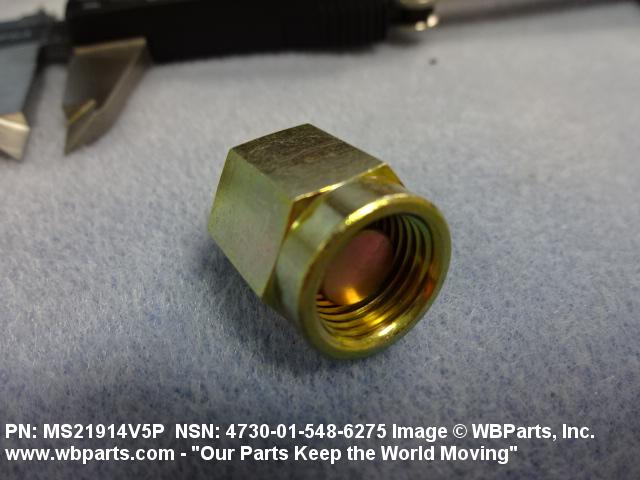

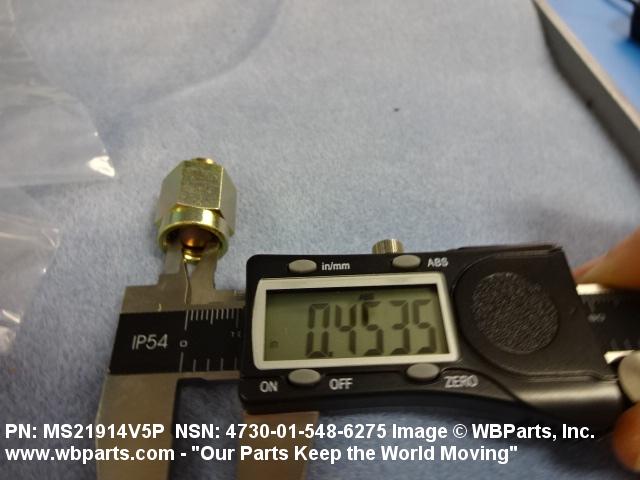

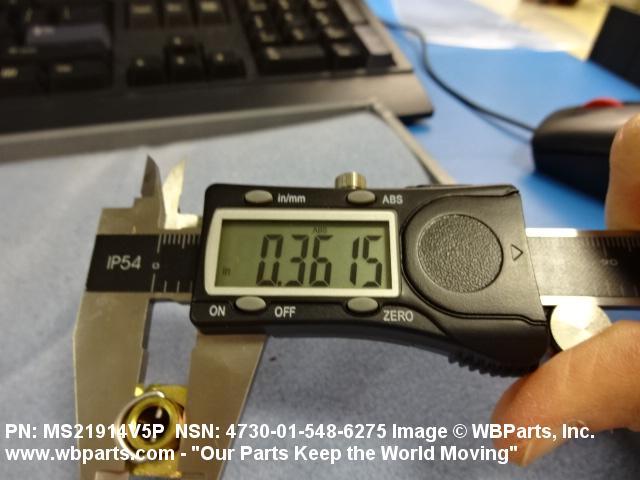

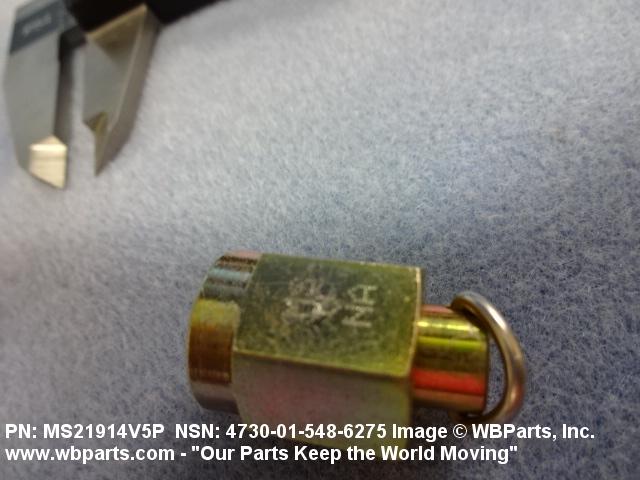

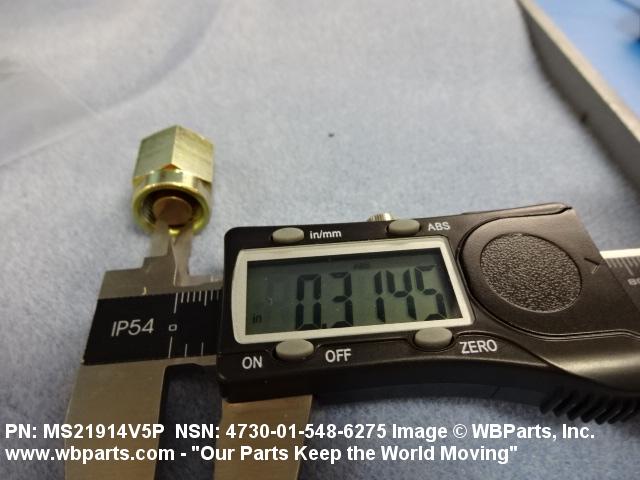

Drawings & Photos | NSN 4730-01-548-6275
Demand History | NSN 4730-01-548-6275
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21914V5P | 2019-06-171 | 15 | US |
| 4730-01-548-6275 | 2018-11-305 | 1317 | DIBBS |
| 4730-01-548-6275 | 2018-06-175 | 1259 | DIBBS |
| 4730-01-548-6275 | 2017-09-267 | 891 | DIBBS |
| 4730-01-548-6275 | 2017-04-95 | 270 | DIBBS |
| AS18280 | 2014-10-280 | 1 | US |
| MS21914V5P | 2012-04-114 | 50 | United States |
| 4730-01-548-6275 | 2010-09-246 | 455 | DIBBS |
| 4730-01-548-6275 | 2010-07-183 | 527 | DIBBS |
| 4730-01-548-6275 | 2010-05-121 | 361 | DIBBS |
| 4730-01-548-6275 | 2010-02-48 | 416 | DIBBS |
| 4730-01-548-6275 | 2009-05-151 | 377 | DIBBS |
| 4730-01-548-6275 | 2009-01-21 | 444 | DIBBS |
| 4730-01-548-6275 | 2009-01-08 | 79 | DIBBS |
| 4730-01-548-6275 | 2008-11-322 | 234 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-548-6275
Related Products | NSN 4730-01-548-6275
Technical Data | NSN 4730-01-548-6275
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 15-5PH OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | A14 CAP, TUBE, FLARELESS |
| CONNECTION STYLE | G6 PRESSURE SEAL FLARELESS |
| THREAD SERIES DESIGNATOR | UNJF INTERNAL |
| NOMINAL THREAD SIZE | 0.500 INCHES INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT NOMINAL RADIUS | 0.022 INCHES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.312 INCHES NOMINAL |
| SPECIAL FEATURES | SUITABLE REPLACEMENT FOR NSN 4730-00-618-9069 |
| SPECIFICATION/STANDARD DATA | 81343 - AS21914 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | GRUMMAN AEROSPACE CORP A1-AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4730-01-548-6275
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-548-6275
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
