NSN 4730-01-553-1858 61154HCE, 01-553-1858, 015531858
Product Details | QUICK DISCONNECT COUPLING ASSEMBLY
4730-01-553-1858 A multipiece fluid line fitting consisting of two COUPLING HALF, QUICK DISCONNECT fittings.
Part Alternates: 61154HCE, 4730-01-553-1858, 01-553-1858, 4730015531858, 015531858
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 JUL 2007 | 01-553-1858 | 20671 ( COUPLING ASSEMBLY, QUICK DISCONNECT ) |

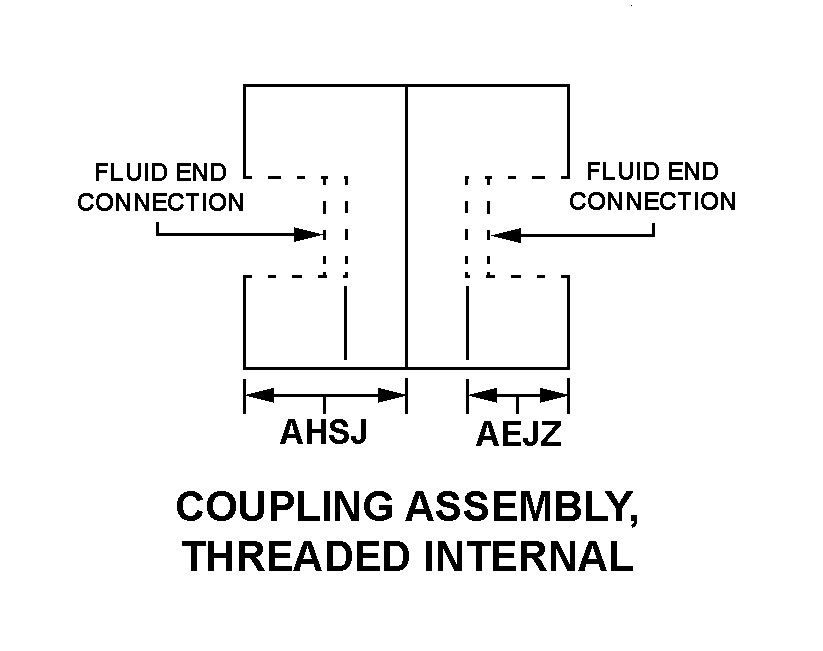

Drawings & Photos | NSN 4730-01-553-1858
Cross Reference | NSN 4730-01-553-1858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 61154HCE | 0DT23 | EATON INDUSTRIAL CORPORATION DBA GROUND FUELING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-553-1858
Related Products | NSN 4730-01-553-1858
Technical Data | NSN 4730-01-553-1858
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BEARING |
| STYLE DESIGNATOR | A5 COUPLING ASSEMBLY, THREADED INTERNAL |
| QUICK DISCONNECT METHOD | SPRING PUSH-PULL ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 2.500 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4730-01-553-1858
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
