NSN 4730-01-560-8246 1/4-5/8-18 FHG1-S, 145818FHG1S, 01-560-8246
Product Details | PIPE NIPPLE
4730-01-560-8246 A straight one-piece metallic pipe 12 inches(304 MM)or less in length having external threads of the same size on both ends. It may have a center section which is externally shaped to accommodate a wrench. For pipe having internal threads 12 inches(304 MM)or less in length see coupling,pipe. For pipe in excess of 12 inches(304 MM)see pipe as modified.
Part Alternates: 1/4-5/8-18 FHG1-S, 145818FHG1S, 4730-01-560-8246, 01-560-8246, 4730015608246, 015608246
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 FEB 2008 | 01-560-8246 | 03782 ( NIPPLE, PIPE ) |
Drawings & Photos | NSN 4730-01-560-8246
Cross Reference | NSN 4730-01-560-8246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1/4-5/8-18 FHG1-S | 1MV66 | MANDUS GROUP DBA HOWITZER REPAIR & OVERHAUL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-560-8246
Technical Data | NSN 4730-01-560-8246
| Characteristic | Specifications |
|---|---|
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |

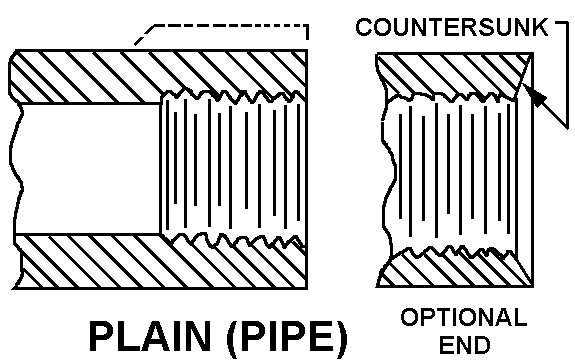

| CONNECTION STYLE | K14A PLAIN (PIPE) ALL ENDS |
| THREAD SERIES DESIGNATOR | NPTF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.250 INCHES 1ST END 0.625 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 18 ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.280 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-560-8246
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
