NSN 4730-01-560-9441 NY6M014ST, NY6M0-1-4ST, 01-560-9441
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-01-560-9441 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: NY6M014ST, NY6M0-1-4ST, 4730-01-560-9441, 01-560-9441, 4730015609441, 015609441
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 FEB 2008 | 01-560-9441 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |
Drawings & Photos | NSN 4730-01-560-9441
Cross Reference | NSN 4730-01-560-9441
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NY6M0-1-4ST | 02570 | SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-560-9441
Technical Data | NSN 4730-01-560-9441
| Characteristic | Specifications |
|---|---|
| CONNECTION TYPE | UNTHREADED EXTERNAL TUBE 1ST END THREADED INTERNAL BOSS 2ND END |

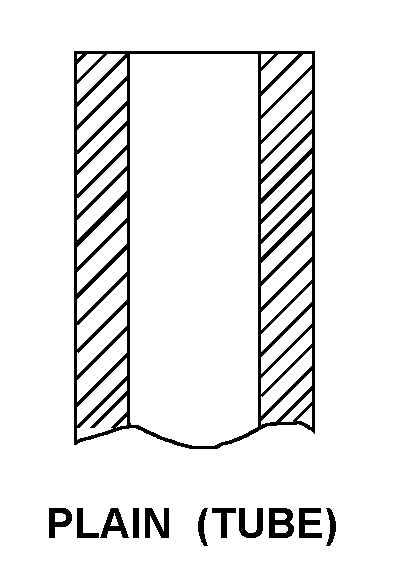

| CONNECTION STYLE | L36 PLAIN (TUBE) 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 6.0 MILLIMETERS 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.438 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 20 2ND END |
| NOMINAL OVERALL LENGTH | 6.0 MILLIMETERS |
| COUPLING FLANGE SHAPE | ROUND |
| SPECIAL FEATURES | BODY TYPE MALE CONNECTOR; SERIES,SWAGELOK TUBE AND ADAPTER FITTINGS; END CONNECTION 2 TYPE, MALE SAE/MS STRAIGHT THREAD (ST) |
Restrictions/Controls & Freight Information | NSN 4730-01-560-9441
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
