Product Details | PIPE TEE
4730-01-561-2762 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have standard pipe threads or 1s unthreaded and designed to accommodate a pipe. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fittings.
Part Alternates: 50785K222, 4730-01-561-2762, 01-561-2762, 4730015612762, 015612762
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 FEB 2008 | 01-561-2762 | 03805 ( TEE, PIPE ) |

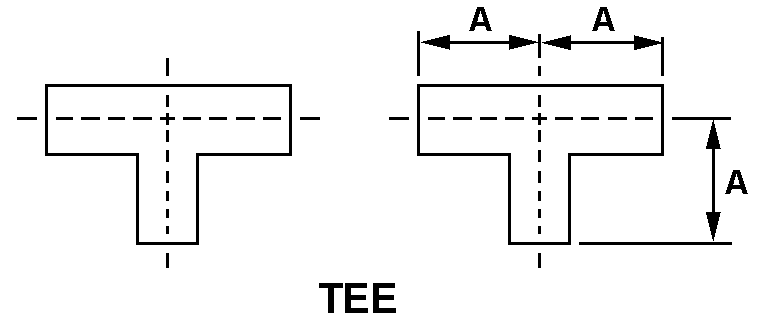

Drawings & Photos | NSN 4730-01-561-2762
Demand History | NSN 4730-01-561-2762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 50785K222 | 2025-09-261 | 189 | DIBBS |
| 4730-01-561-2762 | 2015-06-152 | 91 | DIBBS |
| 4730-01-561-2762 | 2015-05-141 | 91 | DIBBS |
| 4730-01-561-2762 | 2012-04-104 | 133 | DIBBS |
| 4730-01-561-2762 | 2012-03-67 | 19 | DIBBS |
| 4730-01-561-2762 | 2012-03-66 | 10 | BE |
Cross Reference | NSN 4730-01-561-2762
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50785K222 | 3A054 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-561-2762
Related Products | NSN 4730-01-561-2762
Technical Data | NSN 4730-01-561-2762
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE WATER-OIL-GAS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 1200.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 72.0 DEG FAHRENHEIT SINGLE RESPONSE |
| STYLE DESIGNATOR | C4 TEE |
| CONNECTION TYPE | THREADED INTERNAL PIPE 1ST END THREADED EXTERNAL PIPE 2ND END THREADED INTERNAL PIPE 3RD END |
| CONNECTION STYLE | K14A PLAIN (PIPE) 1ST END K14A PLAIN (PIPE) 3RD END |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| PIPE WALL THICKNESS DESIGNATION FOR WHICH DESIGNED | STANDARD ALL ENDS |
| LEG LENGTH | 0.720 INCHES NOMINAL ALL ENDS |
| SPECIAL FEATURES | EXTRUDED BRASS; RUN HAS AN INTERNAL AND AN EXTERNAL THREADED END, BRANCH HAS INTERNAL THREADS |
| III END ITEM IDENTIFICATION | AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TEE,MALE RUN,BRASS |
