NSN 4730-01-562-4731 12-8-12 A0FJL0-SS, 12812A0FJL0SS, 01-562-4731
Product Details | PIPE TO TUBE TO BOSS TEE
4730-01-562-4731 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The pipe connection has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The tube connection has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. The boss connection has external or internal machine threads (straight threads other than pipe or hose series), and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It is used as a junction at the intersection of pipe or pipe fitting and a tube or tube fitting.
Part Alternates: 12-8-12 A0FJL0-SS, 12812A0FJL0SS, 4730-01-562-4731, 01-562-4731, 4730015624731, 015624731
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 APR 2008 | 01-562-4731 | 32703 ( TEE, PIPE TO TUBE TO BOSS ) |
Drawings & Photos | NSN 4730-01-562-4731
Cross Reference | NSN 4730-01-562-4731
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12-8-12 A0FJL0-SS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-562-4731
Technical Data | NSN 4730-01-562-4731
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |

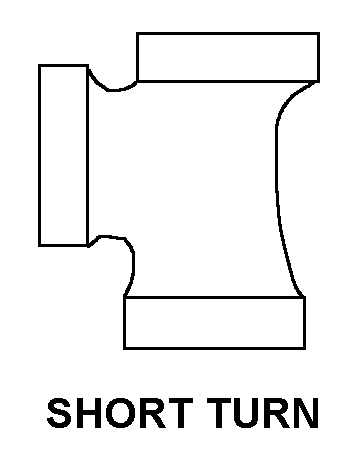

| STYLE DESIGNATOR | D80 SHORT TURN |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END THREADED EXTERNAL BOSS 3RD END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END NPT 2ND END UN 3RD END |
| NOMINAL THREAD SIZE | 1.062 INCHES 1ST END 0.500 INCHES 2ND END 0.812 INCHES 3RD END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| FURNISHED ITEMS AND QUANTITY | 1 PREFORMED PACKING AND 1 BULKHEAD NUT |
| SPECIAL FEATURES | MATERIAL 316 STAINLESS STEEL; RUN HAS BULKHEAD FEATURE WITH LOCKING NUT AND GROOVED FACE TO ALLOW FOR ORING FACE SEAL (SEAL LOC) |
| III END ITEM IDENTIFICATION | AN/SPN-41A |
