Product Details | TUBE ELBOW
4730-01-562-5655 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 15012563, 8WEMTXWLNMS, 982 2313, 9822313, 4730-01-562-5655, 01-562-5655, 4730015625655, 015625655
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 APR 2008 | 01-562-5655 | 03771 ( ELBOW, TUBE ) |

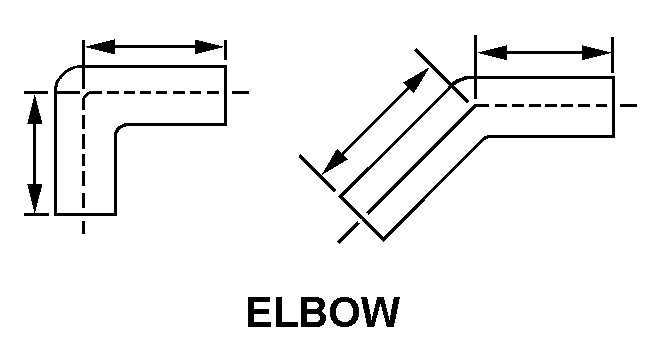

Drawings & Photos | NSN 4730-01-562-5655
