NSN 4730-01-563-5594 531-8328657 PC NO F-10, 5318328657PCNOF10, 66190109240
Product Details | FLANGE TO HOSE STRAIGHT ADAPTER
4730-01-563-5594 An adapter having a flange connection on one end designed to connect with another flange connection or a compression type mounting pad. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a flange or flange fitting to a hose or hose fitting in a straight line.
Part Alternates: 531-8328657 PC NO F-10, 5318328657PCNOF10, 66190109240, 66-190109-2-40, 4730-01-563-5594, 01-563-5594, 4730015635594, 015635594
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 MAY 2008 | 01-563-5594 | 29655 ( ADAPTER, STRAIGHT, FLANGE TO HOSE ) |
Drawings & Photos | NSN 4730-01-563-5594
Demand History | NSN 4730-01-563-5594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 66-190109-2-40 | 2025-04-114 | 9 | DIBBS |
| 66-190109-2-40 | 2025-03-62 | 5 | DIBBS |
| 66-190109-2-40 | 2025-02-49 | 5 | DIBBS |
| 66-190109-2-40 | 2024-09-270 | 5 | DIBBS |
| 66-190109-2-40 | 2023-12-345 | 5 | DIBBS |
| 66-190109-2-40 | 2023-11-332 | 5 | DIBBS |
| 66-190109-2-40 | 2023-08-222 | 4 | DIBBS |
| 66-190109-2-40 | 2022-11-332 | 4 | DIBBS |
| 66-190109-2-40 | 2022-11-321 | 4 | DIBBS |
| 66-190109-2-40 | 2021-07-186 | 2 | DIBBS |
| 66-190109-2-40 | 2020-01-02 | 3 | DIBBS |
| 4730-01-563-5594 | 2016-06-174 | 4 | DIBBS |
| 4730-01-563-5594 | 2013-02-57 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-563-5594
Related Products | NSN 4730-01-563-5594
Technical Data | NSN 4730-01-563-5594
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| MAXIMUM OPERATING PRESSURE | 350.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | A12 FLANGED AND THREADED |
| CONNECTION TYPE | FLANGE 1ST END THREADED EXTERNAL HOSE GRIPPING 2ND END |

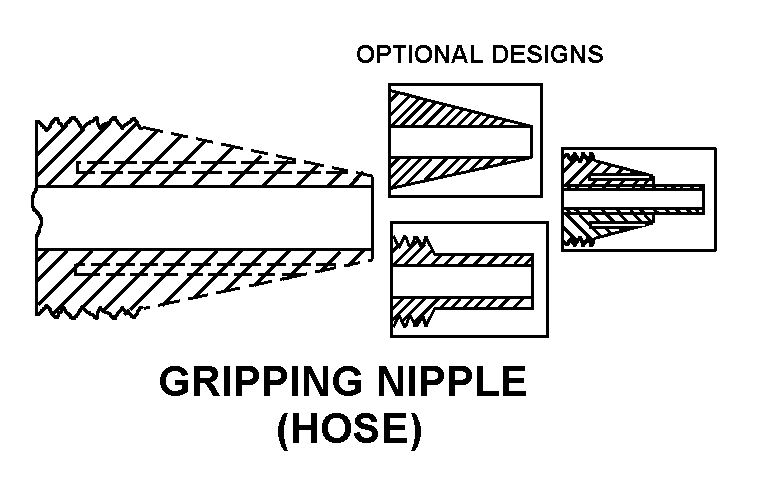

| CONNECTION STYLE | M61 GRIPPING NIPPLE (HOSE) 2ND END |
