NSN 4730-01-564-9104 AS1036W06060606, AS4841, 01-564-9104
Product Details | TUBE CROSS
4730-01-564-9104 A fitting having four branches in the same plane whose axes form right angles. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or are unthreaded and designed to accommodate a tube. It is designed to be used as a junction at the intersection of tubing and/or tube fittings. It may have side inlet(s).
Part Alternates: AS1036W06060606, AS4841, 4730-01-564-9104, 01-564-9104, 4730015649104, 015649104
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 02 JUL 2008 | 01-564-9104 | 08532 ( CROSS, TUBE ) |

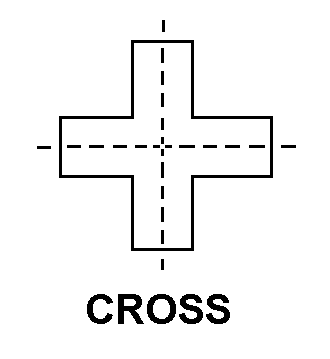

Drawings & Photos | NSN 4730-01-564-9104
Demand History | NSN 4730-01-564-9104
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS4841 | 2025-04-106 | 1 | France |
| 4730-01-564-9104 | 2013-03-83 | 12 | DIBBS |
| 4730-01-564-9104 | 2011-09-266 | 8 | DIBBS |
| 4730-01-564-9104 | 2011-06-174 | 5 | DIBBS |
| AS4841 | 2011-03-69 | 8 | |
| 4730-01-564-9104 | 2011-02-40 | 1 | DIBBS |
| 4730-01-564-9104 | 2010-12-358 | 1 | DIBBS |
| 4730-01-564-9104 | 2010-08-226 | 1 | DIBBS |
| 4730-01-564-9104 | 2009-11-332 | 1 | DIBBS |
| 4730-01-564-9104 | 2009-10-295 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-564-9104
Related Products | NSN 4730-01-564-9104
Technical Data | NSN 4730-01-564-9104
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ALLOY 7075-T73 NATIONAL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | C1 CROSS |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| LEG LENGTH | 1.032 INCHES NOMINAL ALL ENDS |
| NOMINAL OVERALL LENGTH | 2.062 INCHES |
| SPECIAL FEATURES | FLARED EXTERNAL TUBE CONNECTIONS |
| III END ITEM IDENTIFICATION | MISC AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | INAVY:TUBE TEE |
Restrictions/Controls & Freight Information | NSN 4730-01-564-9104
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-564-9104
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
