NSN 4730-01-566-9884 AN8185W, AN818-5W, 01-566-9884
Product Details | TUBE COUPLING NUT

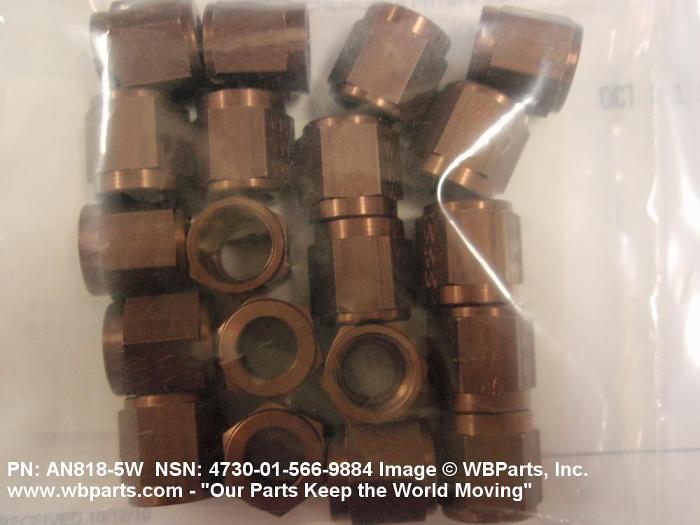

4730-01-566-9884 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: AN8185W, AN818-5W, 4730-01-566-9884, 01-566-9884, 4730015669884, 015669884
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 SEP 2008 | 01-566-9884 | 03859 ( NUT, TUBE COUPLING ) |
Drawings & Photos | NSN 4730-01-566-9884
Demand History | NSN 4730-01-566-9884
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8185W | 2018-07-204 | 1 | US |
| AN8185W | 2018-07-191 | 26 | United States |
| AN8185W | 2017-03-66 | 1350 | United States |
| AN8185W | 2017-02-54 | 1400 | United States |
| 4730-01-566-9884 | 2016-03-75 | 2 | United States |
| 4730-01-566-9884 | 2013-11-332 | 799 | DIBBS |
| 4730-01-566-9884 | 2013-09-245 | 170 | DIBBS |
| 4730-01-566-9884 | 2012-09-264 | 491 | DIBBS |
| 4730-01-566-9884 | 2012-08-216 | 2 | DIBBS |
| 4730-01-566-9884 | 2012-07-210 | 2 | DIBBS |
| 4730-01-566-9884 | 2012-07-210 | 5 | DIBBS |
| 4730-01-566-9884 | 2012-07-205 | 2 | DIBBS |
| 4730-01-566-9884 | 2012-07-195 | 2 | DIBBS |
| 4730-01-566-9884 | 2012-07-184 | 2 | DIBBS |
| 4730-01-566-9884 | 2011-12-353 | 304 | DIBBS |
| 4730-01-566-9884 | 2011-12-353 | 308 | DIBBS |
| 4730-01-566-9884 | 2011-08-241 | 2 | DIBBS |
| AN8185W | 2011-05-129 | 20 | US |
| AN8185W | 2007-05-124 | 2 | US |
Cross Reference | NSN 4730-01-566-9884
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN818-5W | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-566-9884
Related Products | NSN 4730-01-566-9884
Technical Data | NSN 4730-01-566-9884
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| SMALLEST INSIDE DIAMETER | 0.312 INCHES NOMINAL |
| THREAD SERIES | UNJF |
| NUT STYLE | TUBE COUPLING |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| END ITEM IDENTIFICATION | FLEET COMBAT SUPPORT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT,TUBE COUPLING,SHORT |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| SPECIAL FEATURES | MATL IS 7075-T75 ALUMINUM ALLOY |
| THREAD QUANTITY PER INCH | 20 |
| NUT HEIGHT | 0.683 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.104 INCHES NOMINAL |
| FABRICATION METHOD | MACHINED |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.312 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-566-9884
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
