NSN 4730-01-567-3229 AS322004, AS3220-04, 01-567-3229
Product Details | TUBE FITTING FLARED SLEEVE
4730-01-567-3229 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: AS322004, AS3220-04, 4730-01-567-3229, 01-567-3229, 4730015673229, 015673229
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 SEP 2008 | 01-567-3229 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

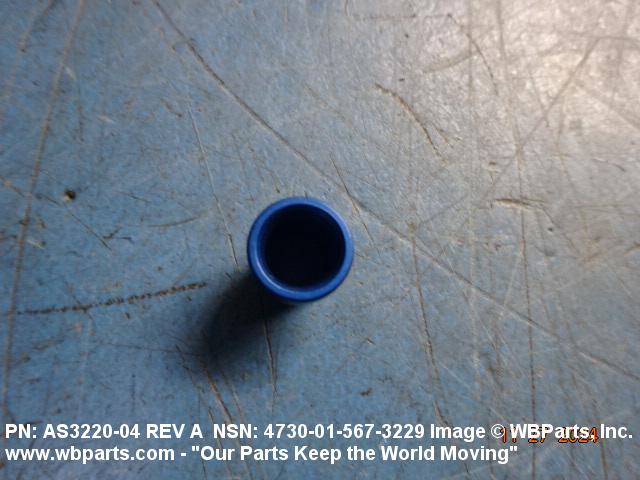

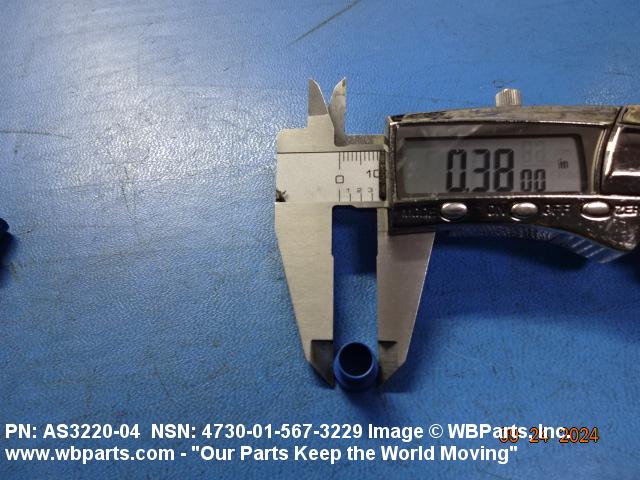

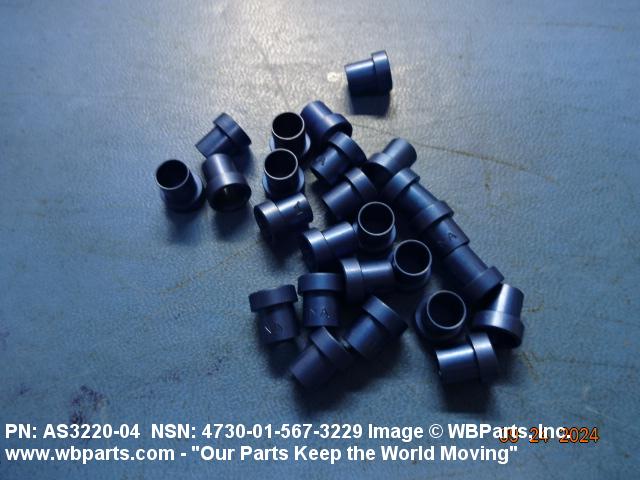

Drawings & Photos | NSN 4730-01-567-3229
Demand History | NSN 4730-01-567-3229
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-567-3229 | 2025-04-111 | 575 | DIBBS |
| 4730-01-567-3229 | 2025-04-100 | 575 | DIBBS |
| 4730-01-567-3229 | 2024-12-347 | 73 | DIBBS |
| AS322004 | 2024-11-323 | 60 | United States |
| 4730-01-567-3229 | 2024-09-263 | 60 | DIBBS |
| 4730-01-567-3229 | 2024-09-257 | 2 | United States |
| 4730-01-567-3229 | 2024-05-151 | 17 | DIBBS |
| 4730-01-567-3229 | 2024-02-39 | 17 | DIBBS |
| 4730-01-567-3229 | 2024-01-21 | 2 | DIBBS |
| 4730-01-567-3229 | 2021-12-336 | 4 | United States |
| AS322004 | 2012-10-297 | 10 | us |
| AS322004 | 2011-12-347 | 12 | us |
| AS322004 | 2011-03-74 | 20 | United States |
| AS322004 | 2011-02-53 | 12 | US |
| AS322004 | 2009-02-50 | 20 | us |
| AS322004 | 2009-02-50 | 200 | us |
| AS322004 | 2008-09-274 | 10 | us |
| AS322004 | 2008-09-274 | 204 | us |
Cross Reference | NSN 4730-01-567-3229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS3220-04 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-567-3229
Technical Data | NSN 4730-01-567-3229
| Characteristic | Specifications |
|---|---|
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| FLANGE OUTSIDE DIAMETER | 0.383 INCHES MINIMUM AND 0.386 INCHES MAXIMUM |
| FLANGE WIDTH | 0.125 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| OVERALL LENGTH | 0.390 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| SLEEVE OUTSIDE DIAMETER | 0.294 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| SURFACE TREATMENT | ANODIZED |
| STYLE DESIGNATOR | SLEEVE |
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/4 OR ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024 |
| SEAT ANGLE IN DEG | 33.0 |
Restrictions/Controls & Freight Information | NSN 4730-01-567-3229
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
