NSN 4730-01-574-3839 AS5194D0806, 01-574-3839, 015743839
Product Details | PIPE TO TUBE STRAIGHT ADAPTER
4730-01-574-3839 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.
Part Alternates: AS5194D0806, 4730-01-574-3839, 01-574-3839, 4730015743839, 015743839
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 MAY 2009 | 01-574-3839 | 03776 ( ADAPTER, STRAIGHT, PIPE TO TUBE ) |

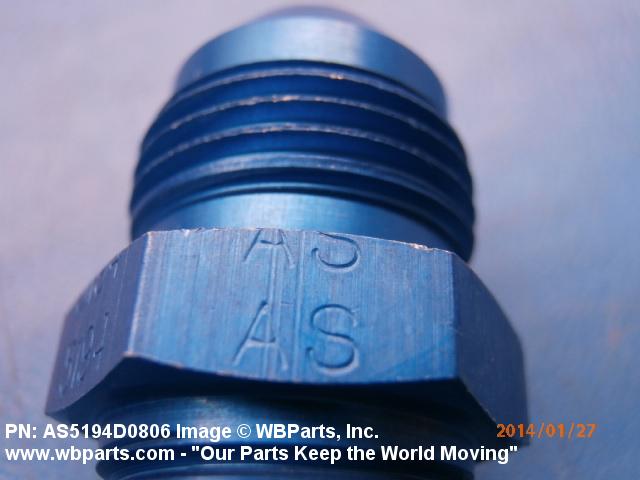

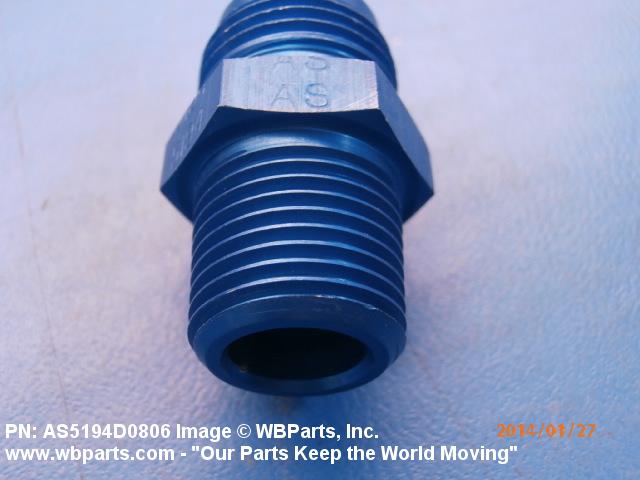

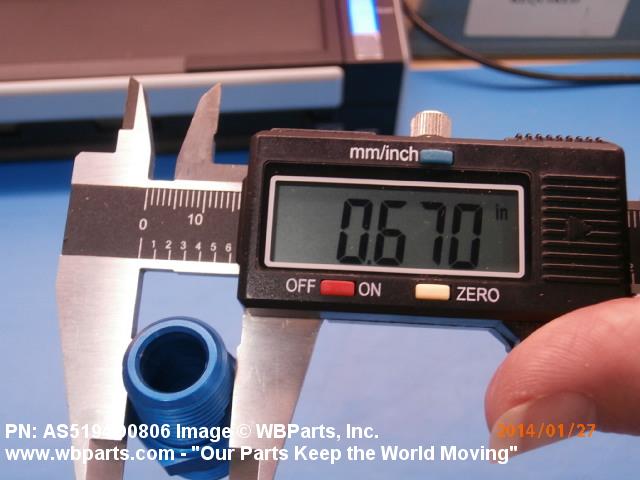

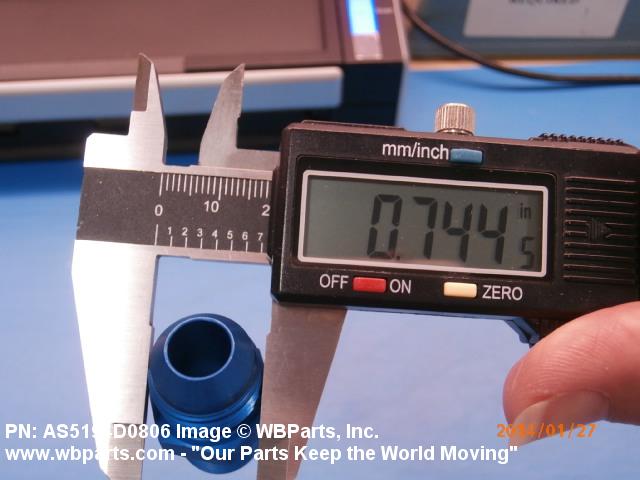

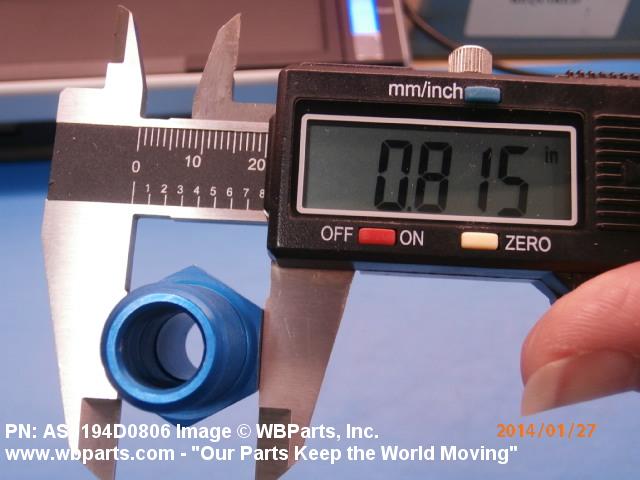

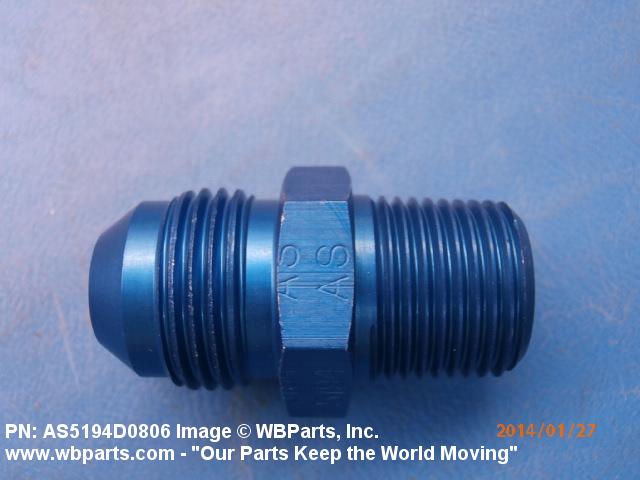

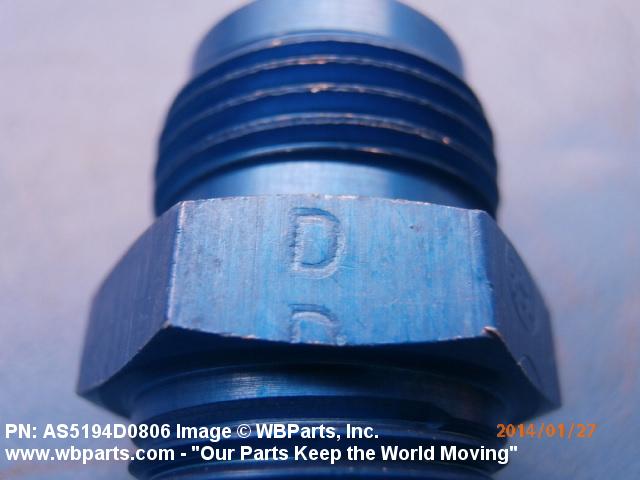

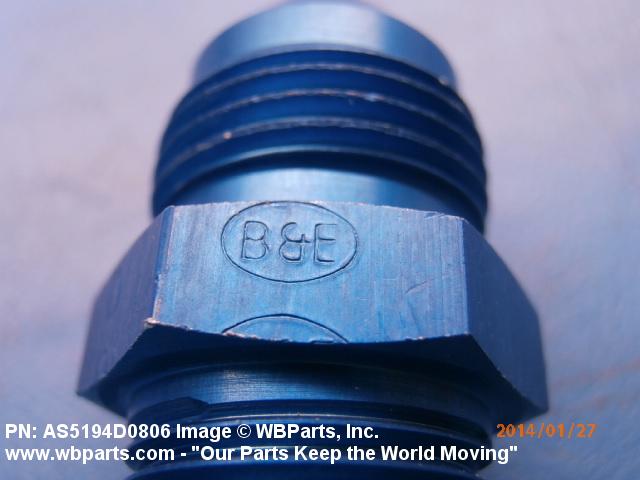

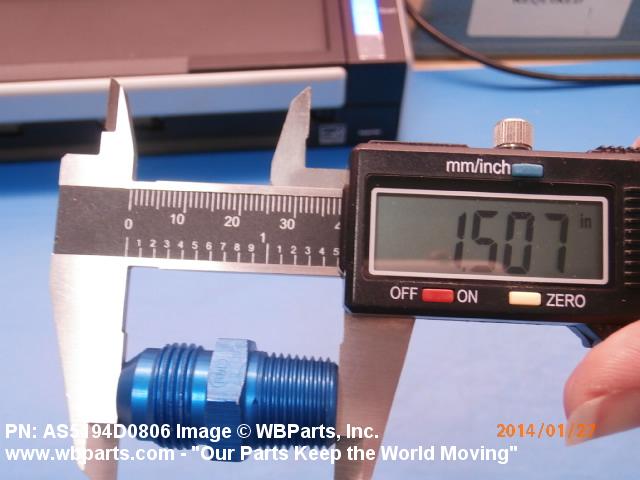

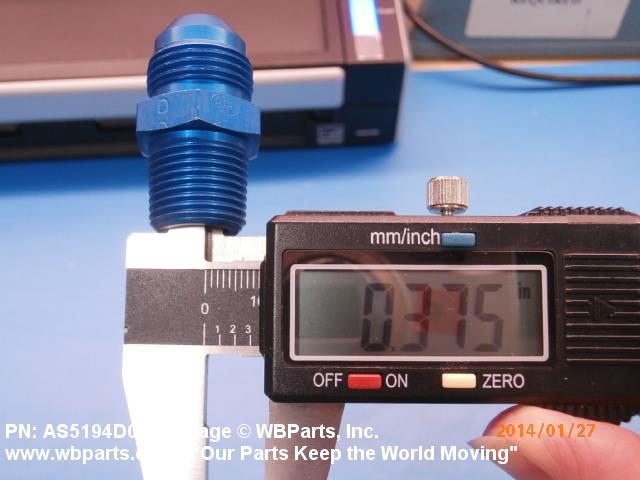

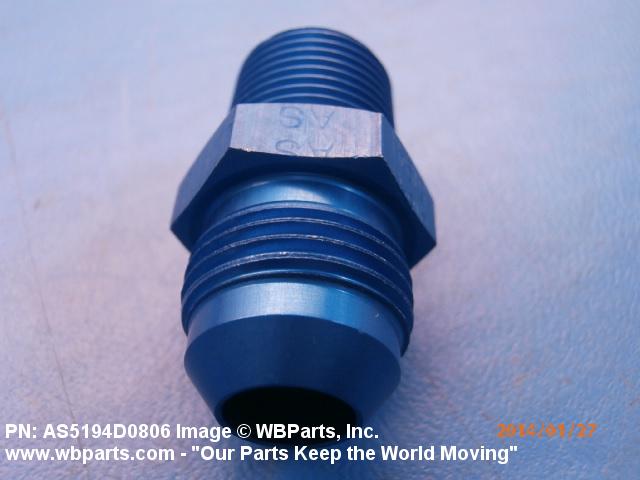

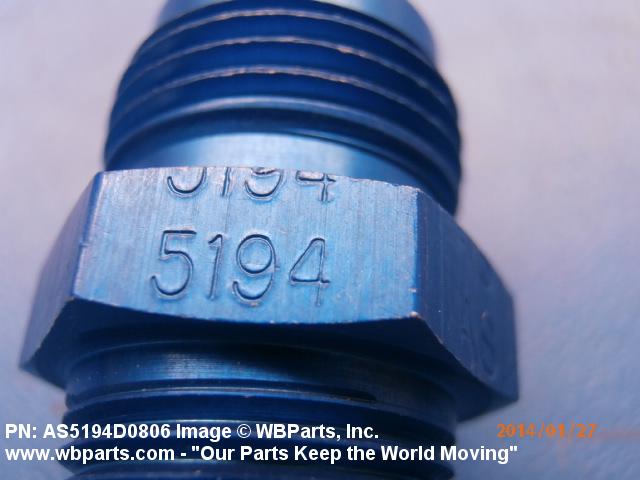

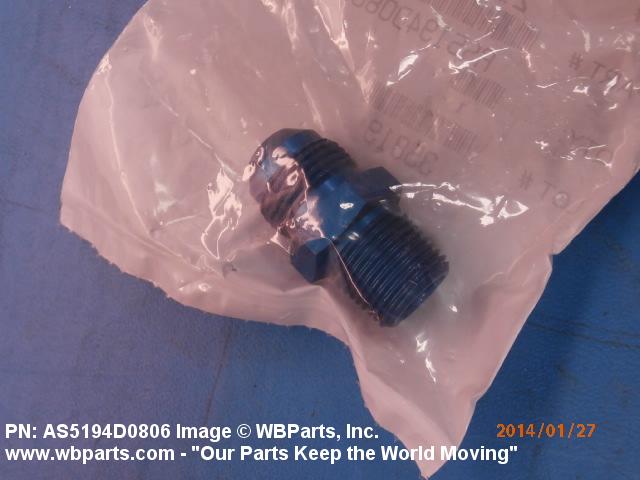

Drawings & Photos | NSN 4730-01-574-3839
Demand History | NSN 4730-01-574-3839
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS5194D0806 | 2014-01-17 | 16 | Australia |
Cross Reference | NSN 4730-01-574-3839
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS5194D0806 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-574-3839
Technical Data | NSN 4730-01-574-3839
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| END ITEM IDENTIFICATION | CESSNA AIRCRAFT |
| CONNECTION STYLE | PLAIN (TUBE) 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING, ADAPTER, STRAIGHT PIPE TO FLARED |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
Restrictions/Controls & Freight Information | NSN 4730-01-574-3839
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
