Product Details | HOSE COUPLING
4730-01-578-8045 A straight hose fitting designed to join a hose fitting or to a hose or another hose fitting. For connecting hose to hose fittings it must have two types of hose connections and one connection must have standard hose threads. For connecting two hose fittings it must have two types of hose connections that have standard hose threads of the same size on both ends, only one connection may be externally threaded. Excludes items with self-sealing and/or quick disconnect features.
Part Alternates: 300FAL, 300-F-AL, 4730-01-578-8045, 01-578-8045, 4730015788045, 015788045
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 OCT 2009 | 01-578-8045 | 03340 ( COUPLING, HOSE ) |

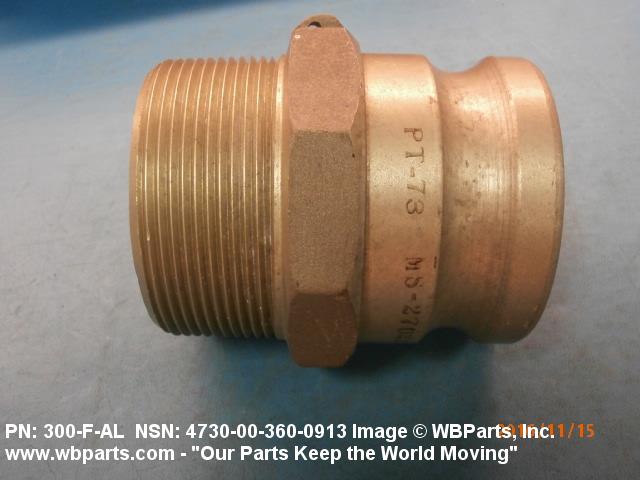

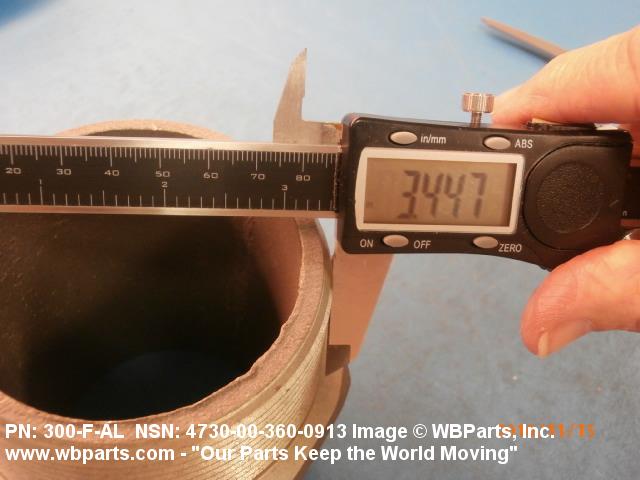

Drawings & Photos | NSN 4730-01-578-8045
Cross Reference | NSN 4730-01-578-8045
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300-F-AL | 72661 | DIXON VALVE & COUPLING COMPANY DIV DIXON POWHATAN |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-01-578-8045
4730-01-578-9073, 4730-01-578-9709, 4730-01-579-1639, 4820-01-103-4626, 4820-01-132-1159
Technical Data | NSN 4730-01-578-8045
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COUPLING,HOSE |
| END ITEM IDENTIFICATION | U-2 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4730-01-578-8045
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 845 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-578-8045
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Materiel Management Aggregation Code | UB | TG:U-2 |
| Source of Supply | FZZ | WR-ALC/LX Bldg 350 STRM C 750 3rd Street Robbins AFB, GA 31098-2122 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
