Product Details | 90 DEGREE ELBOW
4730-01-589-2813 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. Each connecting end must have either standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, PIPE TO HOSE; ELBOW, TUBE TO HOSE; and ELBOW, HOSE TO BOSS.
Part Alternates: 3713461C1, 4730-01-589-2813, 01-589-2813, 4730015892813, 015892813
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 OCT 2010 | 01-589-2813 | 03332 ( ELBOW, HOSE ) |

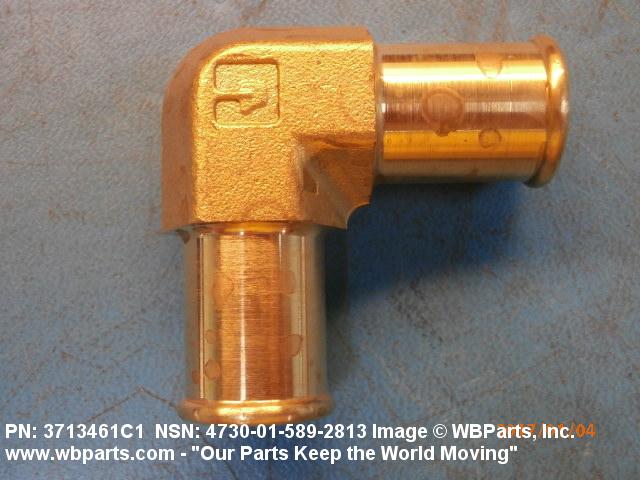

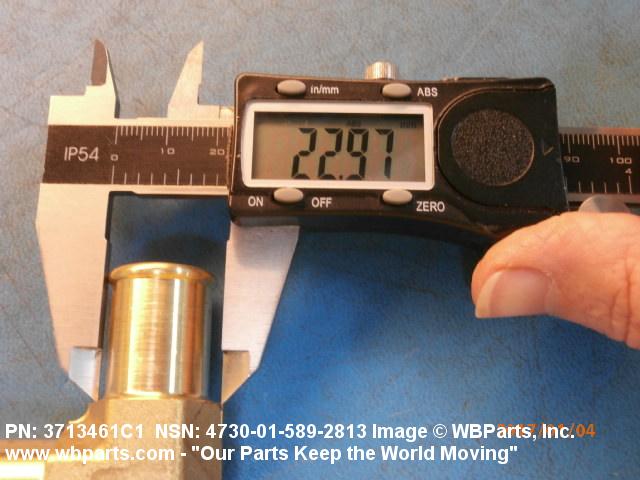

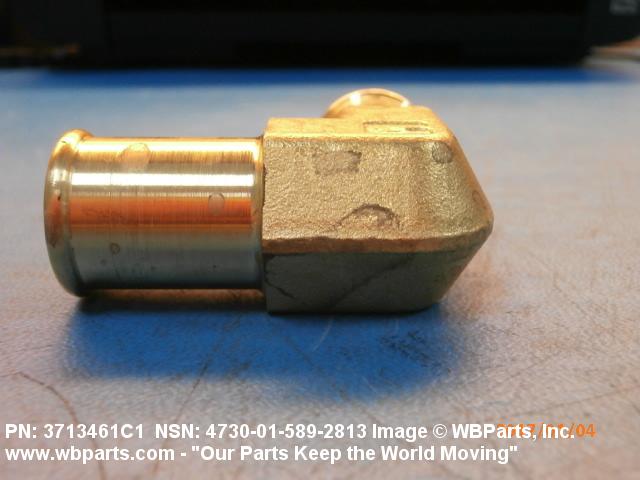

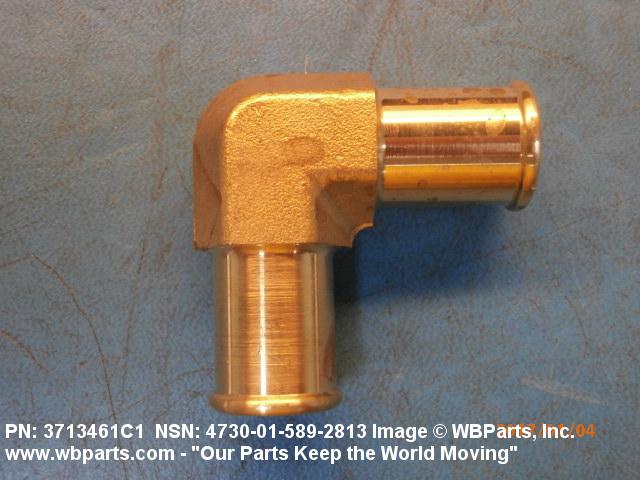

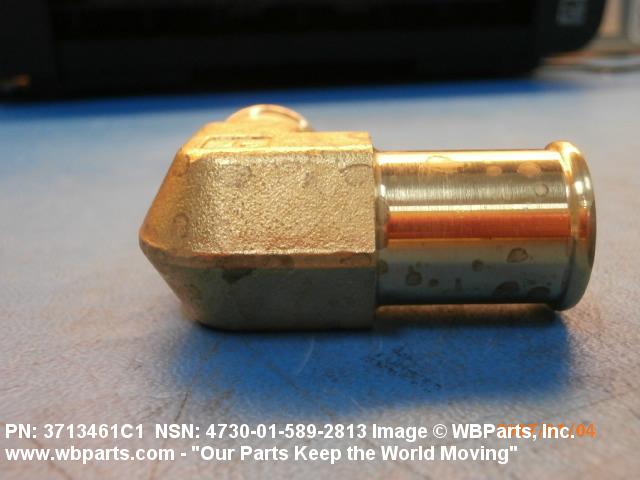

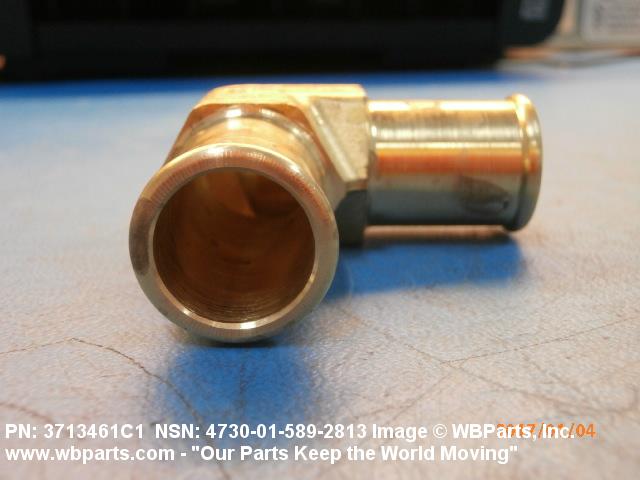

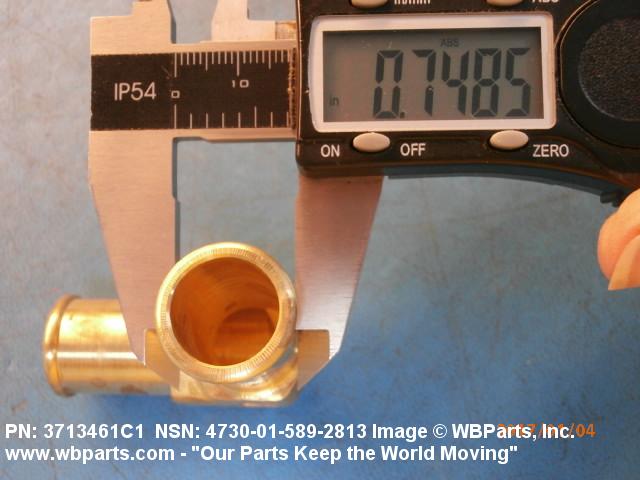

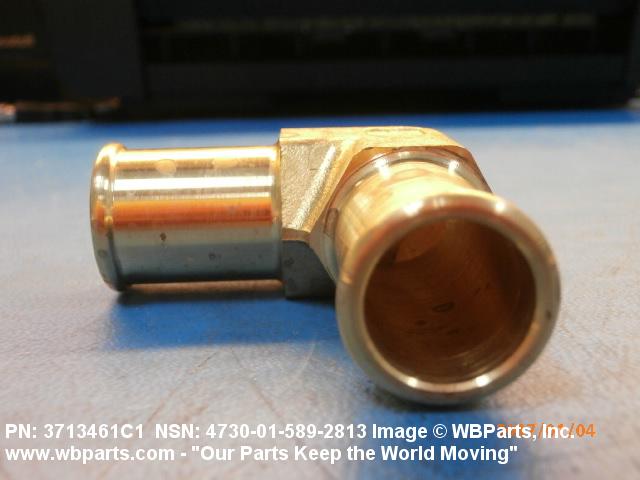

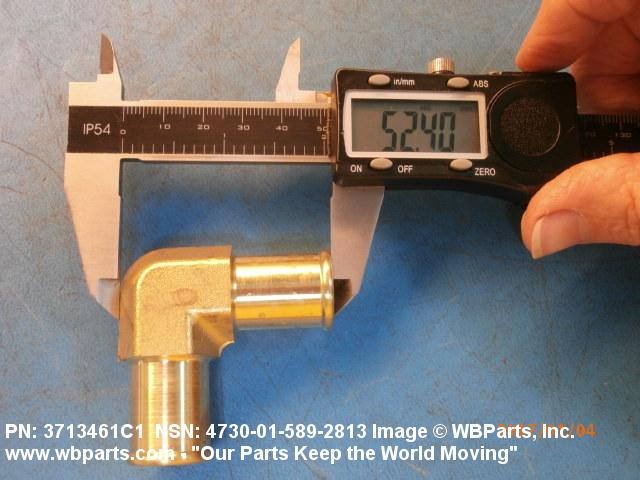

Drawings & Photos | NSN 4730-01-589-2813
Demand History | NSN 4730-01-589-2813
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3713461C1 | 2019-08-01 | 184 | DIBBS |
| 4730-01-589-2813 | 2016-12-22 | 100 | United States |
| 4730-01-589-2813 | 2016-11-14 | 50 | DIBBS |
| 4730-01-589-2813 | 2016-11-08 | 225 | DIBBS |
| 4730-01-589-2813 | 2016-11-03 | 50 | DIBBS |
| 4730-01-589-2813 | 2016-10-21 | 41 | DIBBS |
| 4730-01-589-2813 | 2016-10-10 | 41 | DIBBS |
Cross Reference | NSN 4730-01-589-2813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3713461C1 | 338X5 | NAVISTAR DEFENSE LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-01-589-2813
4730-01-589-3136, 4730-01-589-3453, 4730-01-589-3535, 4730-01-589-4578, 4730-01-589-6150
Technical Data | NSN 4730-01-589-2813
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| SPECIAL FEATURES | OVERALL WIDTH: 22.0MM; OVERALL HEIGHT: 52.0MM; OVERALL LENGTH: 52.0MM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | ELBOW, 90 DEG. 3/4" HOSE BARB UNI |
Restrictions/Controls & Freight Information | NSN 4730-01-589-2813
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-589-2813
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
